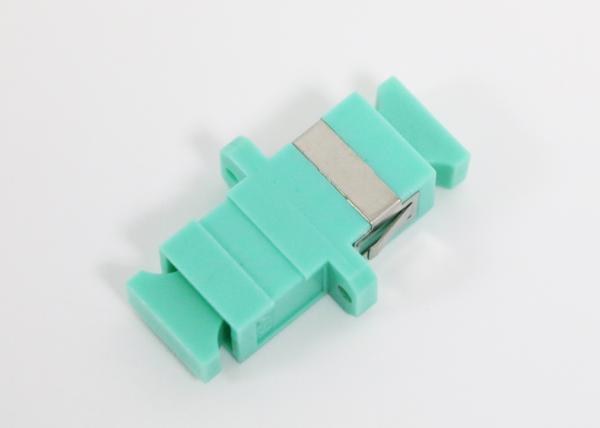

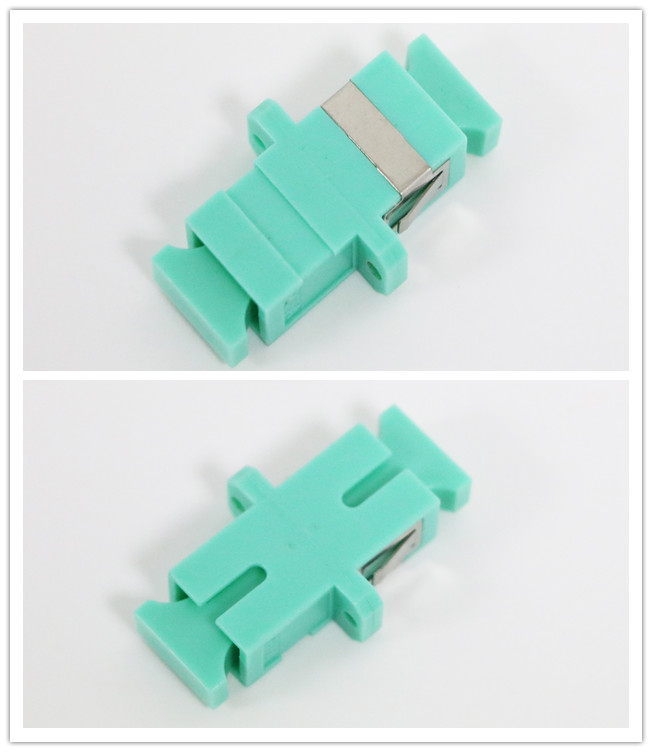

Female Fiber Optic Adapter SC Simplex and Duplex for Fiber Optic
Patch Cord
Fiber adapter is used to provide a cable to cable or cable to
equipment fiber optic connection.
We supply a wide range of mating sleeves and hybrid adapters,
including special male to female hybrid fiber optic adaptor.
Features:
Insertion loss: Less than 0.2dB
Return loss: 45dB/PC, 55dB/UPC, 65dB/APC
Retentivity:200-600g
Repeatability (1,000 times): Less than 0.2dB
High precision alignment
Compact design
Various housing materials and sleeve materials
Nickel plated brass body
Telcordia, ANSI, TIA/EIA, NTT and JIS compliance
Application:
Telecommunication networks
Test equipment
Local area networks (LANs)
Data processing networks
CATV
Patch panel, optical fiber distribution frame
Specification:
Item | SM(UPC) | SM(APC) | MM(PC) |
Insertion loss(dB) | ≤0.3 | ≤0.3 | ≤0.3 |
Repetitiveness(dB) | ≤0.1 | ≤0.1 | ≤0.1 |
Interchangeability(dB) | ≤ 0.2 |
Plug time(times) | 500-1000 |
Operating Temperature(°C) | -25~85 |
Humidity | 95% |
Sleeve Material | Zirconia | Zirconia | Phosphor |
Bronze |
Environment and Mechanical:
Properties | Test condition | Conformance | Test result |
Vibration | 10-55Hz, 1.5mm, 60min | IEC61300-2-1 | ≤0.2dB |
Mating Durability | 1000 Mating, clean every 25 mating. | IEC61300-2-2 | ≤0.2dB |
Impact | 1.5m, 8 drops | IEC61300-2-6 | ≤0.2dB |
Strength of Coupling Mechanism | 40N, 10Min, L=22-28cm | IEC61300-2-12 | ≤0.2dB |
Temperature Cycling | 40ºC to +75ºC, 40 cycles | IEC61300-2-22 | ≤0.2dB |
Temperature humidty cycling | 40ºC, 95%, 96Hr | IEC61300-2-21 | ≤0.2dB |
Operating Temperature | -40ºC to +85ºC |
| ≤0.2dB |
Storage Temperature | -40ºC to +85ºC |
| ≤0.2dB |
Order Information:
LC/APC-LC/APC-SM-DX-ABS
1. Connector Type: FC, SC, LC, ST, MPO, MTRJ, MU, D4, DIN, SMA
2. Ferrule End-face: PC, UPC, APC
3. Core Type : SM, MM(OM1 OM2 OM3 OM4)
4. Structure: Simpled, Duplex, Quad
5. With flange, without flange
6. Sleeve: copper alloy,Zinc alloy
7. Material: ABS, PC, PBT
