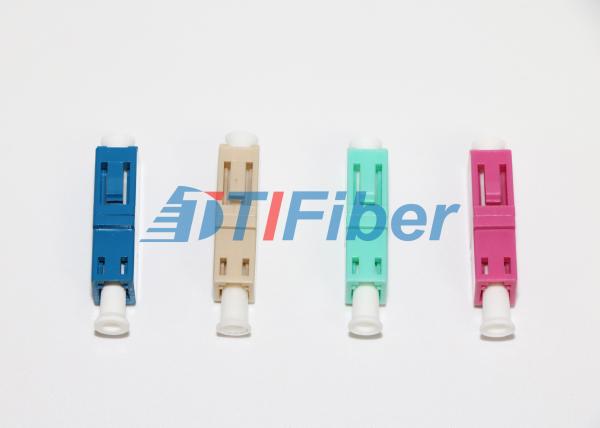

LC - LC Fiber Optic Adapter Simplex with ABS housing for CATV
Network
Fiber Optic Adapter is a fiber optic connector for connection
components, the product is very variety, including FC, SC, ST, LC,
MTRJ, as well as carry out the transfer between each other such as:
ST-SC, FC-ST.
Fiber Adapter is widely used in optical distribution frame (ODF),
fiber-optic communications equipment, instrumentation, the feature
is stable and reliable.
Feature:
Low insertion loss and back reflection loss
High precision alignment
Compact design
With/without flange
Choice of housing material and sleeve material
Telcordia, ANSI, TIA/EIA, NTT and JIS compliance
Simplex, Duplex, Quad
Application:
Telecommunication networks
Active device/Transceiver
Multimedia
Gigabit Ethernet
Local Area Networks(LANs)
Test equipment
Data processing networks
Specification:
| Type | SC/FC/ST/LC/MU/MTRJ/MPO |
| Insertion Loss(dB) | SM≤0.2dB, MM≤0.3dB |
| Repeatability(dB) | ≤0.1dB |
| Mechanism Durability(500 cycles, dB) | ≤0.2dB |
| Temperature Range | -40°C-+85°C |
| Material of sleeve | Zirconia or Bronze |
Reliability testing:
| Item | Test Name | Additional Insertion Loss | Additional Return Loss |
| 1 | Mechanical durability | <0.2dB | <5dB |
| 2 | Repeatability | <0.2dB | <5dB |
| 3 | Lock strength | <0.2dB | <5dB |
| 4 | Low strength | <0.2dB | <5dB |
| 5 | High temperature | <0.2dB | <5dB |
| 6 | Steaming | <0.2dB | <5dB |
| 7 | Temperature cycle | <0.2dB | <5dB |
| 8 | Vibration | <0.2dB | <5dB |
| 9 | Drop | <0.2dB | <5dB |
Order Information:
LC/UPC-LC/UPC-SM-SX-Plastic, with flange
1. Connector Type:FC,SC,LC,ST,MPO,MTRJ,MU,D4,DIN,SMA
2. Ferrule End-face:PC,UPC,APC
3. Core Type : Single-mode(SM:9/125μm), Multimode(MM:50/125μm or
62.5/125μm)
4. Structure: Simpled, Duplex, Quad
5. With flange, without flange
6. Sleeve: copper alloy,Zinc alloy
7. Material: ABS, PC, PBT
