    Bundle Fiber Optic Pigtail for CATV Network with Multimode SC Connectors

    Ask Lasest Price
    Brand Name : TTI/OEM/ODM
    Model Number : SC-MM
    Certification : ISO, SGS, ROHS
    Price : Negotiation
    Payment Terms : T/T, , PayPal
    Supply Ability : 8000 pcs/day
    Delivery Time : 2-3 days
    • Product Details
    • Company Profile

    Bundle Fiber Optic Pigtail for CATV Network with Multimode SC Connectors



    Bundle Fiber Optic Pigtails for CATV Network with APC SC Connectors


    Features:

    Green Production
    Telcordia's GR-326-Core, IEC Standard
    Excellent Polished and 100% tested before delivery
    High stability various environments
    Customize order available
    3D fiber interferometer is available

    Application:
    Active device termination
    Instrumentation
    Telecommunications or Data communications
    Computer networks
    CATV networks
    Specification:

    Fiber optic pigtail Technical Standard:

    Insertion Loss: PC≤ 0.2dB, UPC≤ 0.2dB, APC≤ 0.3dB; Typical0.1dB;

    Return Loss: SM PC≥ 50dB, UPC≥ 55dB, APC≥ 65dB;
    MM PC≥ 35dB, UPC≥35dB

    Interchangeability: ≤ 0.2dB

    Salt Spray: ≤ 0.2dB

    Repeatability: (1000 times) ≤ 0.1dB

    Vibration: (550Hz 1.5mm) ≤ 0.1dB

    High Temperature: ( +85 sustain 100 hours) ≤ 0.2dB

    Low Temperature: (-40 sustain 100 hours) ≤ 0.2dB

    Temperature Circularly: (-40+85 sustain 100 hours) ≤ 0.2dB

    Humidity: (+25+65 93 R. H. 100 hours) ≤ 0.2db

    Apex Offset: 0μ m≤ ≤ 50μ m

    Radius of Curvature: 7mm≤ ≤ 25mm

    Cable Type: Simplex, Duplex, Fan-Out;

    Connector Type: LC, SC, FC, ST, MU, MPO, MTRJ, D4, DIN, SMA, FDDI,
    ESCON etc.

    Fiber Mode: SM (single mode) G652D, G655, G657,
    MM (multimode); G651.1 (50/125, 62.5/125, 10Gb/s 50/125)


    Order Information:

    Fiber Optic Patch Cord

    Connector Type

    Ceramic Ferrule
    End Face

    Cable Diameter

    (mm)

    Simplex/Duplex

    Single mode
    /Multi-mode

    Length

    (meter)

    FCPC/UPC/APCΦ0.9, Φ2,Φ3Simplex/DuplexSM/MMCustomized
    SCPC/UPC/APCΦ0.9, Φ2,Φ3Simplex/DuplexSM/MMCustomized

    ST

    PC/UPC

    Φ0.9, Φ2,Φ3

    Simplex/Duplex

    SM/MM

    Customized

    LC

    PC/UPC

    Φ0.9, Φ2,Φ3

    Simplex/Duplex

    SM/MM

    Customized

    MU

    PC/UPC

    Φ0.9, Φ2

    Simplex/Duplex

    SM/MM

    Customized

    MTRJ

    PC/UPC

    Φ0.9, Φ2

    Duplex

    SM/MM

    Customized

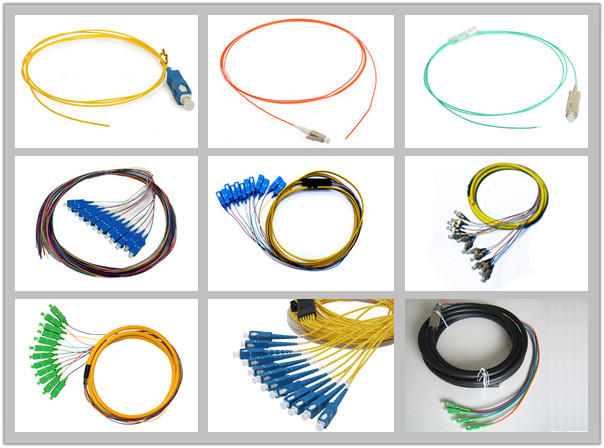

    Product Picture:































    Product Tags:

    optical fiber pigtail



    ofc pigtail


    Quality Bundle Fiber Optic Pigtail for CATV Network with Multimode SC Connectors for sale
