SC Armoured Fiber Optical Patch Cord Multimode Duplex With Red / Black Boot

SC Armoured Fiber Optic Patch Cord Duplex Multimode with Red / Black Boot

Description:

Fiber optic patch cord is suited for equipment jumper cable, cross connects, and work area connections.

All fiber optic patch cords are manufactured with telecom class and polished A, and 100% factory tested to ensure performance to TIA/EIA-568-B-3 standards.

Fiber Patch Cords are available in both multimode (62.5/125µm and 50/125µm) and single mode cable-types, in duplex and simplex versions.

Features:

High quality zirconia ferrule
Materials meet RoHS requirement
Push-pull latching mechanism
Non-optical disconnect performance
Riser, Plenum, PVC, LSZH fiber cable available

Application:

Active device termination
Instrumentation

Telecommunication
Computer networks
CATV networks

Specification:

Fiber Optic Connector Performance Specification:

Connector Type	FC, SC, LC, ST, MU, MTRJ
Fiber Type	SM(G.652D/G.657A)			MM(OM1/OM2/OM3/OM4)
Ferrule End-face	PC	UPC	APC	UPC
Insertion Loss	≤0.2dB	≤0.2dB	≤0.3dB	≤0.3bB
Return Loss	≥50dB	≥55dB	≥60dB	≥35dB
Exchangeability	≤0.2dB
Repeatability	≤ 0.1dB(1000 times)
Durability	> 1000 times
Operating Temperature	-40°C ~ +85°C

Fiber Optic Cable Performance Specification:

Fiber type	Min. Bandwidth	Distance	Attenuation
62.5/125	850/1300nm 200/500 MHz/Km	@100Mbps 2km @1Gig 220m	850/1300nm 3.0/1.0dB/km
50/125	850/1300nm 500/500 MHz/Km	@100Mbps 2km @1Gig 500m	850/1300nm 3.0/1.0dB/km
50/125 10Gig Optimized	850/1300nm 2000/500 MHz/Km	@100Gig Varies by VCSEL typical 300m 2850nm	850/1300nm 3.0/1.0dB/km
9/125	1310/1550nm Approx 100 Terahertz	Up to 100km Varies by transceiver	1310/1550nm 0.4/0.3dB/km

Order Information:

LC/UPC-SC/UPC-MM-DX-3.0mm-2M
LC	/	UPC	—	SC	/	UPC	/	SM	—	SX	/	2.0	—	2M
1		2		3		2		4		5		6		7

1	Connector#1: LC,SC,FC,ST, DIN, D4, MU,MTRJ,etc.
2	Lapping Way: UPC&APC (For MTRJ, F=Female, M=Male)
3	Connector#2: LC,SC,FC,ST,DIN,D4,MU,MTRJ,Pigtail,etc.
4	Cable Type: SM(9/125μm) ,MM(50/125μm & 62.5/125μm), OM3, OM4
5	Fiber Number: SX(Simplex) or DX(Duplex), 2/4/6/8 core...
6	Cable Diameter: 2.0=Ø2.0mm, 3.0=Ø3.0mm, 0.9=Ø0.9mm, etc.
7	Cable Length: 3m(Length in meter)

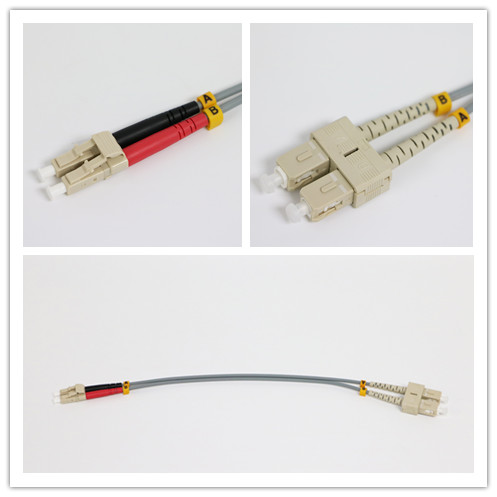

Product Picture:
