    Single Mode Fiber Optic Cable , Armored Fiber Cable Indoor With LSZH / Steel Tube

    Ask Lasest Price
    Brand Name : TTI OR OEM
    Model Number : FOC-IA
    Certification : ISO9001 / ISO14001 / ROHS
    Price : 0.13
    Payment Terms : T/T, , PayPal
    Supply Ability : 10km/Day
    Delivery Time : 2-3 days
    • Product Details
    • Company Profile

    Single Mode Fiber Optic Cable , Armored Fiber Cable Indoor With LSZH / Steel Tube


    Single mode Armoured Indoor Fiber Optic Cable with LSZH / Steel Tube


    Features:


    Good mechanical and environmentai characteristics;

    Soft, flexible, solid, easy to splice ,It’s especially applied to optical long-distance, field, building wiring, trunking connectors;

    Flame retardant characteristics and the meet the requirements of relevant standards;

    Meet various requirements market and clients.


    Applications:


    Used in all kinds of general optical

    Use in pigtails and patch cords

    Used in connectors in optical communication equipment rooms and optical distribution frames

    Used as optical apparatus connectors

    Cable Parameter:


    The corresponding dimension of the whole fiber optic cable (table 1)


    Cable typeCable Diameter mm

    Stainless steel tube diameter

    mm

    Tight-buffered fiber diameter mm
    2.0GJSJVΦ2.0±0.1Φ0.9±0.05Φ0.5
    3.0GJSJVΦ3.0±0.1Φ1.41±0.05Φ0.9

    The corresponding dimension of the whole fiber optic cable (table 2)


    Cable typeCable Diameter (mm)

    Cable weight

    KG/KM

    Tensile NBend radius (mm)*Crush N/100mm
    Short timeLong timedynamicstatic
    2.0GJSJVΦ2.0±0.16.520010020104500
    3.0GJSJVΦ3.0±0.110.520010030154500

    All the values in the table 2 , which are for reference only

    Using fiber of G657 series , the bending radius will be less than 15mm

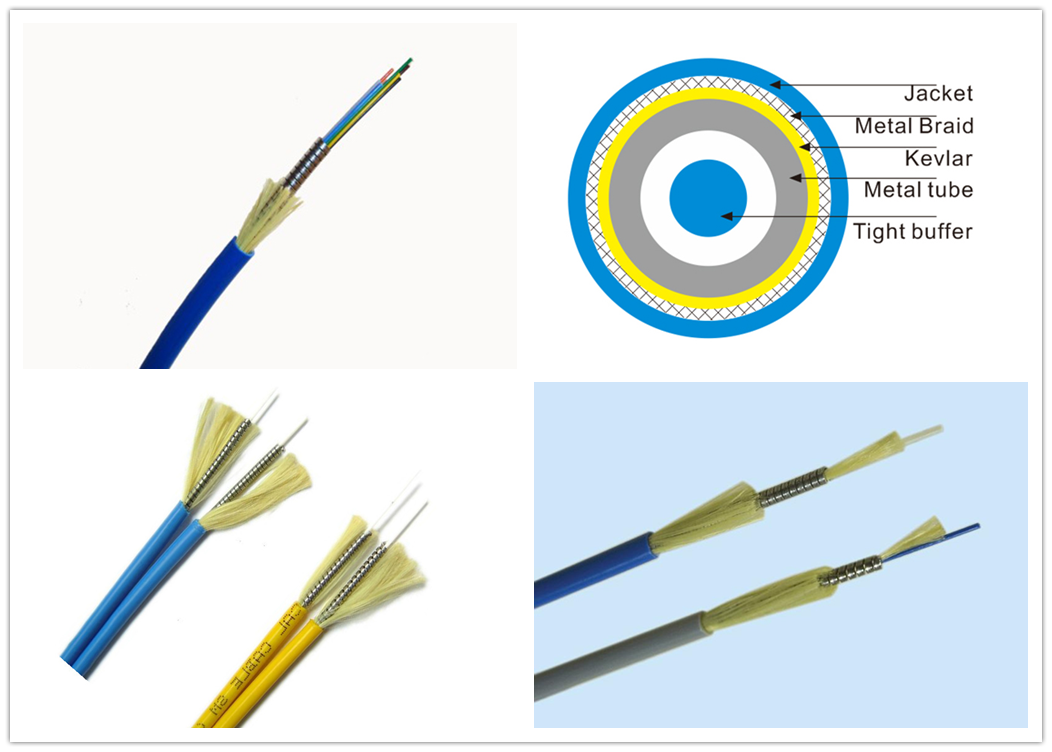

    Product Picture:
