    Fan – Out 8 Core Single Mode MTP / Mpo Trunk Cable Fiber Patch Cord



    Fan – out 8 Core Single mode MTP / MPO Trunk Fiber Patch Cord
    Description:

    Utilize MPO Connectors small Form Factor, 8 Fiber, 12 Fiber or 24 Fiber push/pull optical connectors.

    Rapid Deployment - Application specific designs Tailor configuration and breakout construction to application requirements to minimize waste, optimize cable management, speed deployment, and improve flexibility and manageability for lower installation costs.

    High-density cable - Uses pathway space more efficiently to improve manageability and reduce installation costs.

    Optimized Performance- Assemblies constructed with low loss MPO/MTP proprietary MT polishing Provides low insertion loss and high return loss, minimizing variability for improved channel link loss performance.

    100% tested (test data supplied) - Assures verified optical performance for improved network integrity.
    Factory terminated - Provides a quick-to-deploy, scalable solution to improve reliability and reduce installation time and cost.

    Standards Compliance:

    Jacketed cable is compliant with NFPA 262 Optical Fiber Nonconductive Plenum (OFNP) or IEC-60332 Low Smoke Zero Halogen (LSZH) flame rating.

    Compliant to Directive 2002/95/EC (RoHS) and REACH SvHC.

    Application:

    Optic-fiber CATV
    Optic-fiber Communication Systems
    Optic-fiber Data Communications
    Optic-fiber Access Networks
    LAN, FTTH Network
    Telecommunication networks

    Specification:

    Type

    Single mode
    (APC polish)

    Single mode
    (PC polish)

    Multi mode
    (PC polish)

    Fiber count4,8,12, 24 etc.4,8,12, 24 etc.4,8,12, 24 etc.
    Fiber typeG652D,G657A1 etc.G652D,G657A1 etc.OM1,OM2,OM3 etc.
    Maximum Insertion Loss

    Elite
    Low Loss

    		Standard

    Elite
    Low Loss

    		Standard

    Elite
    Low Loss

    		Standard
    ≤0.35 dB≤0.70 dB≤0.35 dB≤0.70 dB≤0.35dB≤0.50dB
    Return Loss≥55 dB≥45 dB≥20 dB
    Durability≥200 times≥200 times≥200 times
    Operating Temperature-40°C ~ +80°C-40°C~ +80°C-40°C ~ +80°C
    Test Wavelength1310nm1310nm

    850nm

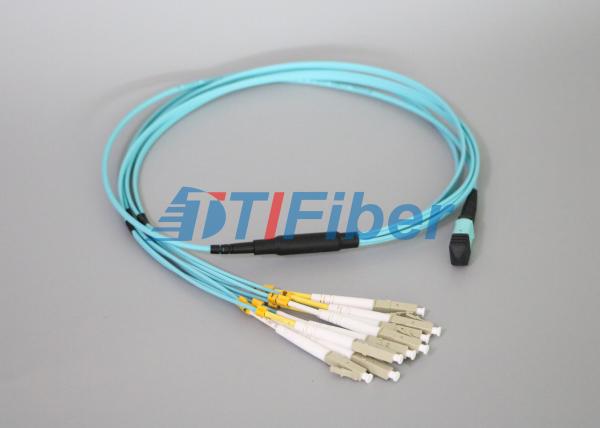

    Product Picture:
