2U Fiber Optic Media Converter Rack for 19 inch Rack Mounted Structure

Ask Lasest Price
Brand Name :	TTI
Model Number :	FMC
Certification :	ISO, SGS, ROHS
Price :	Negotiation
Payment Terms :	T/T, , PayPal
Supply Ability :	3000 PCS/Week
Delivery Time :	2-3 days

Add to Cart

Product Details
Company Profile

2U Fiber Optic Media Converter Rack for 19 inch Rack Mounted Structure

10/100/1000M 2KM Optical Fiber Media Converter for FC Connector

Description:

Fiber optic media converter that supports external SFP Modules and meets EN55022 standard.

The Ethernet port support high power PoE (Power Sourcing Equipment) which complies with IEEE802.3at standard.

It is a hardened grade product whose operating temperature range is -40°C to +80°C.

This SFP supports 1000M Ethernet Port and 1000M SFP Port.

The Ethernet port supports both half-duplex and full-duplex mode. Users can use different type of SFP modules (single-mode/multi-mode fiber, 1/2 core) as needed.

Features:

Converts 1000Base-T to 1000Base-FX

Supports IEEE802.3at PoE+(30W)

Supports Full/Half duplex

Supports external 1000Base-X SFP

Supports Auto MDI/MDI-X

Supports DIN-Rail & Wall-mount installation

Extensive LED indicators for network diagnostics

Environmentally hardened -40°C to 80°C
(-40°F to 176°F) operating temperature

Specification:

Ethernet
Standards:	IEEE802.3ab 1000Base-T
	IEEE802.3az Gigabit Fiber
	IEEE802.3af Power over Ethernet
	IEEE802.3at Power over Ethernet
	IEEE802.3x Flow Control
Processing Type:	Forward
Processing Type:	Half-duplex, Full-duplex
Forward Filter Rate:	1,488,000pps (1000Mbps)
Cabling:	1000Base-T: Cat5 or above
Maximum Distance:	Cat5 UTP up to 100m
Connector:	1x RJ45
Optical Port:	1 x SFP 1000Base-X
Environmental
Operating Temperature:	-40°C to 80°C (-40°F to 176°F)
Storage Temperature:	-40°C to 85°C (-40°F to 185°F)
Relative Humidity:	5% to 95% non-condensing
Electrical and Mechanical
Input Power:	48VDC (Terminal Block)
Power Consumption:	36W Max. 0.75A@48VDC
Standard:	IEEE802.3at
PoE:
Port:	RJ45
Max. Power per Port:	30W Max per port (Alternative B Mode)
LED Indicators:
Power:	Power Status
1000TX:	Link/Activity, Speed
SFP:	Link/Activity
Dimensions (WxDxH):	95 x 70 x 28 mm
Weight:	0.25Kg
Casing:	Metal Case
Mounting Options:	DIN-Rail / Wall-mount
Regulatory Approvals
ISO9001
FCC part 15, Class A
EN55022:2006+A1: 2007 Class A
Surge Protection:
RJ45: 1KV
Power: 500W
ESD: 4KV/8KV

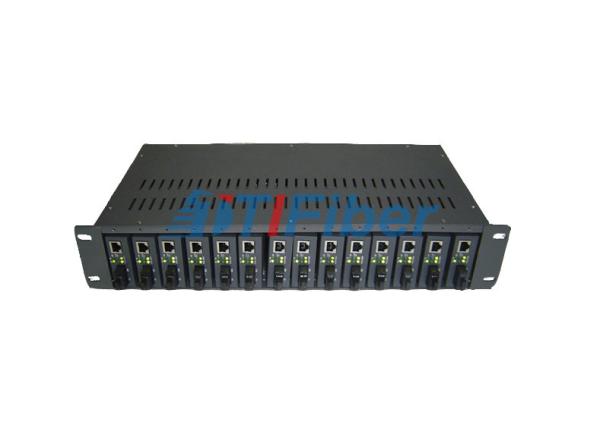

Product Picture:
