FC LC ST Fast Connector for FTTH Networks with High Insertion Loss
Description:
The fast connector is designed for high quality and high efficiency
for installation.
The structure of crimping position is a unique design, and need not
gluing, polishing neither any consumables.
Could be reused, and convenient for field installation.
Adopted fiber pre-installed structure.
Features:
Low insertion loss and high return loss
Using high precision ceramic ferrule
Stable capability and high reliability
Excellent mechanical capability
Boots in a variety of colors
Application:
Use for open FTTH Optical terminal to end.
Connection in closure, cabinet, terminal box etc.
Recovery and maintenance in the accident like fiber cut situation.
LAN, WAN, data and video transmission.
Construction and maintenance in the FTTX of terminal user
Fiber to mobile base station.
Life Time: Our fiber optic fast connector have at least 15 years lifetime,
because we introduce advanced production technolege and100% NEW raw
materials, well control fiber optic fast connector's quality.
Specification:
Item | Parameter |
Cable | 3.1x2.0mm drop cable or 3.0/2.0/0.9mm cable |
Coating Diameter | 250μm |
Mode | SM, MM |
Insertion Loss | ≤ 0.3dB |
Return Loss | SM: ≥45dB; MM: ≥35dB |
Reusable Times | >10 times |
Tensile Strength | >50 N |
Temperature | -40~+85°C |
FTTH Fast Connector Package:
The package will be packed according to standard export
requirements, customer satisfication is our target.
Label printed: Customer logo or None brand are available
Inner packing: 10pcs/PE box
Outer packing: the carton will be packed with sack, well protect
carton from dust and wet.

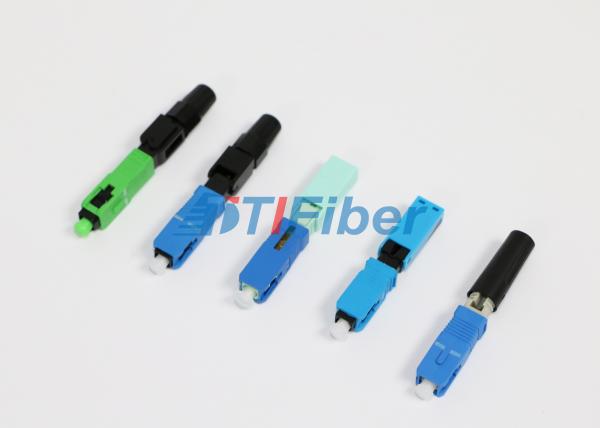

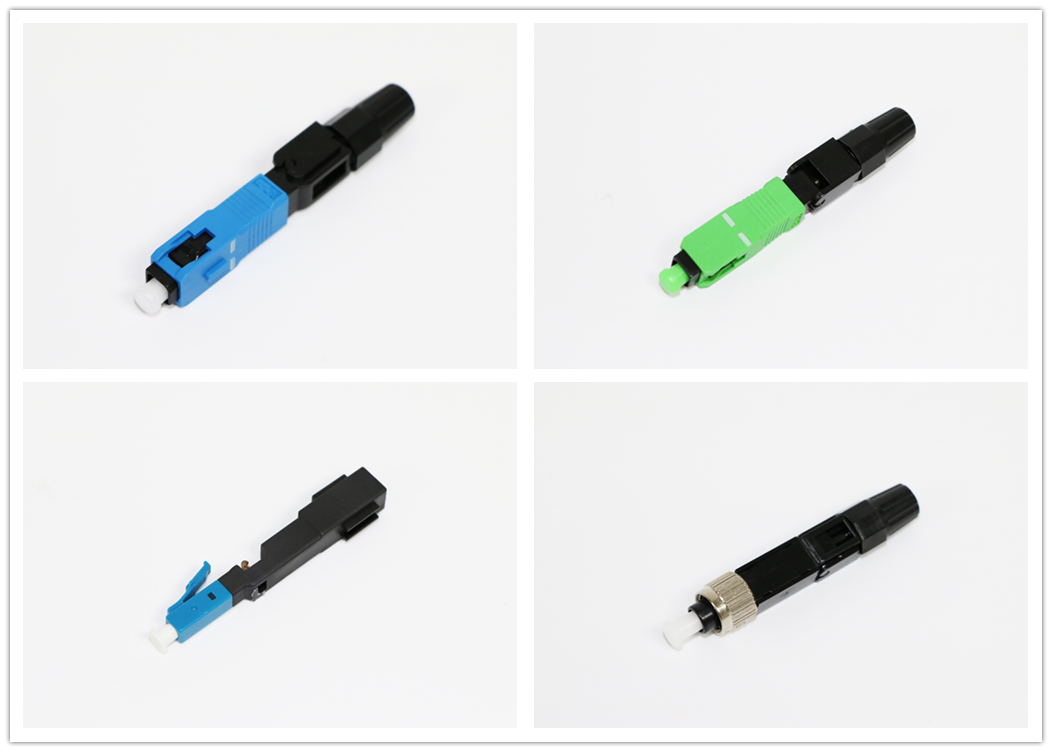

Product Picture:
