1×8 PLC Fiber Optic Splitter with Steel Tube Package and LSZH
Jacket
Description:
PLC Fiber optic splitter is a micro-optical element using
photolithographic techniques to form optical waveguide at medium or
semiconductor substrate for realizing branch distribution function.
Fiber splitters are available with 1x2, 1x3, 1x4, 1x5, 1x6, 1x8,
1x12, 1x16, 1x18, 1x32 and 1x64 configurations with single mode or
multimode fiber and we offer all type connectors of
pre-connectorized like SC, FC, ST, LC etc.
Feature:
Low insertion loss High Return Loss
Low polarization dependent loss
Compact for small application areas like in closure or splice trays
Wide Operating Temperature and Wavelength
Excellent Environmental & Mechanical Stability
Qualified Under Telcordia GR-1221 and GR-1209
Steel tube-compact size
Application:
CATV Systems
Amplifying, Monitoring System
FTTX (FTTP, FTTH, FTTN, FTTC)
Passive Optical Networks (PON)
Local Area Networks (LAN)
Specification:
Table 1 – 1×N PLC Fiber Splitter
| Parameters | 1×2 | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 |
| Operating Wavelength (nm) | 1260～1650 |
| Fiber Type | G657A or customer specified |
| Insertion Loss (dB)(P/S Grade) | 3.8/4.0 | 7.1/7.3 | 10.2/10.5 | 13.5/13.7 | 16.5/16.9 | 20.5/21.0 |
| Loss Uniformity (dB) | 0.4 | 0.6 | 0.8 | 1.2 | 1.5 | 2.0 |
| Return Loss (dB) (P/S Grade) | 55/50 | 55/50 | 55/50 | 55/50 | 55/50 | 55/50 |
| Polarization Dependent Loss(dB) | 0.2 | 0.2 | 0.2 | 0.25 | 0.3 | 0.35 |
| Directivity (dB) | 55 | 55 | 55 | 55 | 55 | 55 |
| Wavelength Dependent Loss(dB) | 0.3 | 0.3 | 0.3 | 0.5 | 0.5 | 0.5 |
| Temperature Stability(-40～85 ℃)(dB) | 0.4 | 0.4 | 0.4 | 0.5 | 0.5 | 0.5 |
| Operating Temperature (℃) | -40～85 |
| Storage Temperature (℃) | -40～85 |
| Package | Steel Tube or ABS |
Table 2 – 2×N PLC Fiber Splitter
| Parameters | 2×2 | 2×4 | 2×8 | 2×16 | 2×32 | 2×64 |
| Operating Wavelength (nm) | 1260～1650 |
| Fiber Type | G657A or customer specified |
| Insertion Loss (dB) | 4.0 | 7.6 | 11.0 | 14.4 | 17.5 | 21.0 |
| Loss Uniformity (dB) | 0.6 | 1.0 | 1.2 | 1.5 | 1.8 | 2.2 |
| Return Loss (dB) (P/S Grade) | 55/50 | 55/50 | 55/50 | 55/50 | 55/50 | 55/50 |
| Polarization Dependent Loss(dB) | 0.2 | 0.2 | 0.3 | 0.3 | 0.4 | 0.4 |
| Directivity (dB) | 55 | 55 | 55 | 55 | 55 | 55 |
| Wavelength Dependent Loss(dB) | 0.3 | 0.4 | 0.5 | 0.5 | 0.5 | 0.5 |
| Temperature Stability(-40～85 ℃)(dB) | 0.4 | 0.4 | 0.4 | 0.5 | 0.5 | 0.5 |
| Operating Temperature (℃) | -40～85 |
| Storage Temperature (℃) | -40～85 |
| Package | Steel Tube or ABS |
Notes:
- Specified without connectors.
- Add an additional 0.15dB loss per connector

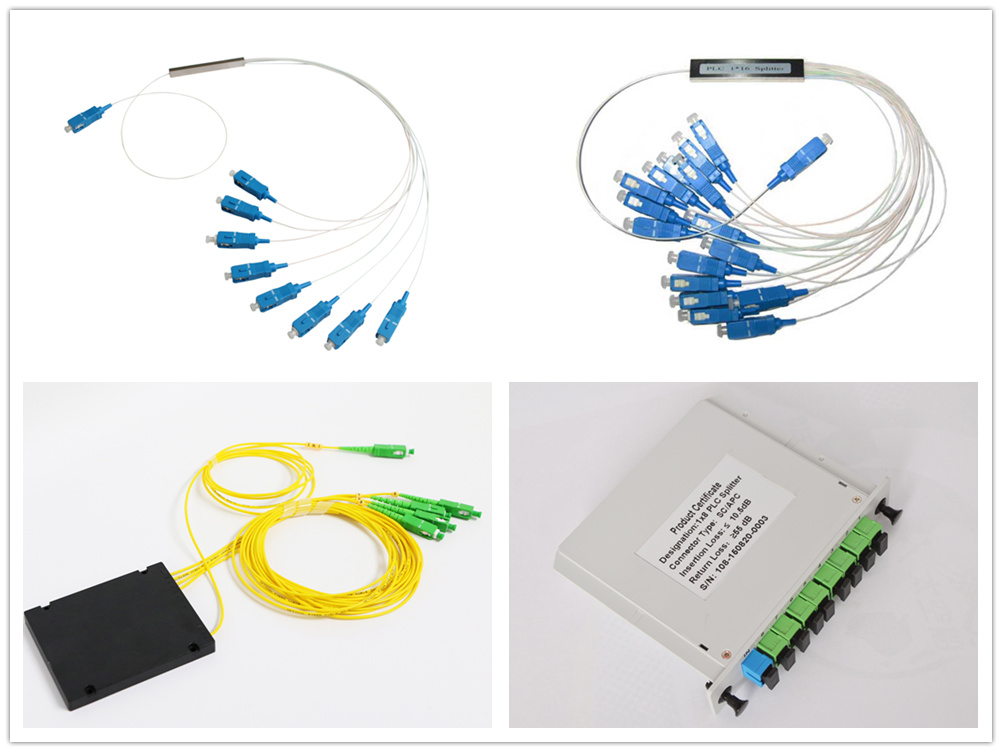

Product Picture:
