4core 12core FTTH Network Drop Cable with KFRP and Steel for SC Fast Connector

    Buy cheap 4core 12core FTTH Network Drop Cable with KFRP and Steel for SC Fast Connector from wholesalers

    Buy cheap 4core 12core FTTH Network Drop Cable with KFRP and Steel for SC Fast Connector from wholesalers
    • Buy cheap 4core 12core FTTH Network Drop Cable with KFRP and Steel for SC Fast Connector from wholesalers
    • Buy cheap 4core 12core FTTH Network Drop Cable with KFRP and Steel for SC Fast Connector from wholesalers

    4core 12core FTTH Network Drop Cable with KFRP and Steel for SC Fast Connector

    Ask Lasest Price
    Brand Name : TTI
    Model Number : FTTH-4C
    Certification : ISO, SGS, ROHS
    Price : Negotiation
    Payment Terms : T/T, , PayPal
    Supply Ability : 8000 pcs/day
    Delivery Time : 2-3 days
    • Product Details
    • Company Profile

    4core 12core FTTH Network Drop Cable with KFRP and Steel for SC Fast Connector


    4core 12core FTTH Drop Cable with KFRP and Steel for SC Fast Connector


    Description:


    Easy connect without splicing, fast and convenient

    Excellent tensile and crush performance, the span distance for self-support type can be up to 50 meters

    Flame retardant LSZH jacket meets relevant fire protection requirements in indoor environment

    High carbon steel messenger wire enables the self-support type to have excellent tensile strength.


    Feature:


    Fiber:Up to 12, Light buffered fiber
    Fiber Types: Single-mode or Multimode
    Cable Type: Round Squa drop cable
    Strength Member:Aramid yarn
    Sheath Options:Single LSZH sheath
    Operating Temperature: -20℃ - 70℃
    Compliances:In Accordance with IEC,ITU and EIA standards


    Application:


    High speed optical routes in buildings (FTTx)


    All types of fiber cables with different structures

    High performance optical network operating

    Used in indoor/outdoor cabling

    Used in indoor/outdoor cabling


    Specification:

    Fiber Transmission Performance:


    Cabled Optical fiber
    (dB/km)

    62.5μm
    (850nm/1300nm)
    50μm
    (850nm/1300nm)
    G.652
    (1310nm / 550nm)
    G.655
    (1550nm / 625nm)
    Max attenuation
    3.5/1.5
    3.5/1.5
    0.36/0.22
    0.22/0.26
    Typical value
    3.0/1.0
    3.0/1.0
    0.35/0.21
    0.21/0.24

    Technical Specification


    Cable type
    Maximum
    cores
    Tensile Strength
    Crush Resistance
    Minimum bend radius
    Short term
    Long term
    Short term
    Long term
    Dynamic
    Static
    GJFJH
    1
    150
    80
    1000
    500
    20D
    10D
    GJYFJH
    1
    300
    150
    1000
    500
    20D
    10D
    GJYFJCH
    2
    600
    300
    1000
    500
    20D
    10D
    GJYFJCH
    4
    600
    300
    1000
    500
    20D
    10D

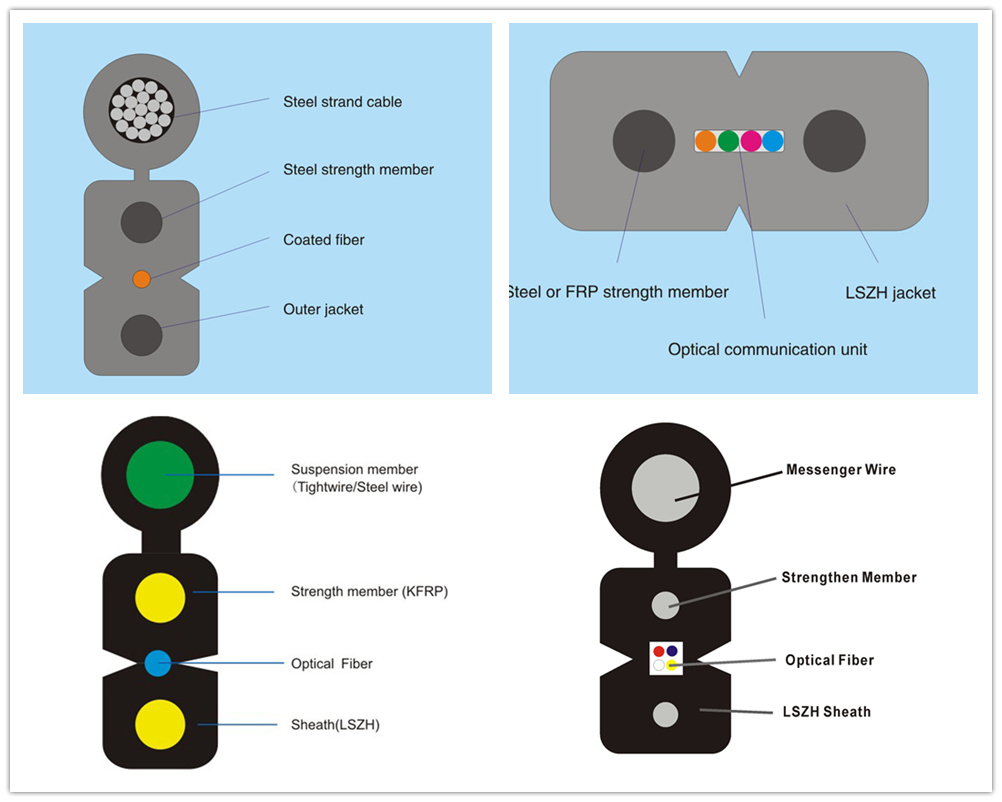

    Product Picture:


    Quality 4core 12core FTTH Network Drop Cable with KFRP and Steel for SC Fast Connector for sale
