19” Standard Structure Fiber Optic ODF Box for Rack Mount Cabinet
Description:
19 inches;1RU ,2RU, 4RU standard installation.
Several capacity: 12, 24, 36, 48, 72, 96, splices.
Several adapters can be installed: FC,SC,ST, DLC
Suitable for ribbon and bunchy fiber cable.
Feature:
Made of cold-rolling steel, static spreading-plastic, small
dimension and exquisite and easy for operation.
The box has a pothook, which is convenient to install and
dismantle.
The splice tray could be piled one upon another, flexible to turn;
the curve radius of the coiled spear fibers should be guaranteed to
be over 37.5mm in the splice tray.
The box is of unique structure, reasonable layout, and has adequate
room for operation.
Adjustable clamp seal ring and reinforce configuration, which could
adjust different sizes of cables flexibly to make sure the cables
are clamp tightly.
The indoor type is of excellent seal performance, which could
prevent water from entering effectively.
Main technical Parameter:
Environmental temperature: -25 - 65°C.
Relative humidity:≤85%((when the temperature is below 30°C)).
Atmosphere pressure:70~106Kpa.
Insulating resistance:≥2×104 MΩ/500VDC.
Voltage-resistance strength: Under the effect of 15kv/DC/1min,
non-puncture, and no arc-over.
The fiber optic splice tray could be piled one upon another,
flexible to turn.
The box are Rack Mounted, which is convenient to install and
dismantle.
The indoor type is of excellent seal performance, which could
prevent water from entering effectively.
Specification:
Fixed Type:
| Type | OTB-RF-1UA | OTB-RF-2UA | OTB-RF-1UB | OTB-RF-1UB | OTB-RF-1UC | OTB-RF-2UC |
| Size(mm) | 430*250*1U | 430*250*1U | 482*295*1U | 320*240*100 | 350*340*120 | 350*340*120 |
| Max capacity(core) | 24 | 48 | 24 | 48 | 24 | 48 |
| Weight(kg) | 2.6 | 3.8 | 3 | 4 | 3 | 5 |
Slidable Type:
| Type | OTB-RS-1UA | OTB-RS-2UA | OTB-RS-1UB | OTB-RS-2UB | OTB-RS-1U-3MPO | OTB-RW-1U |
| Size(mm) | 430*300*1U | 430*250*2U | 482*217*1U | 482*217*2U | 482*296*1U | 430*300*1U |
| Max capacity(core) | 24 | 48 | 24 | 48 | 36 | 24 |
| Weight(kg) | 3.5 | 4.0 | 3.5 | 4.0 | 3.0 | 4.7 |

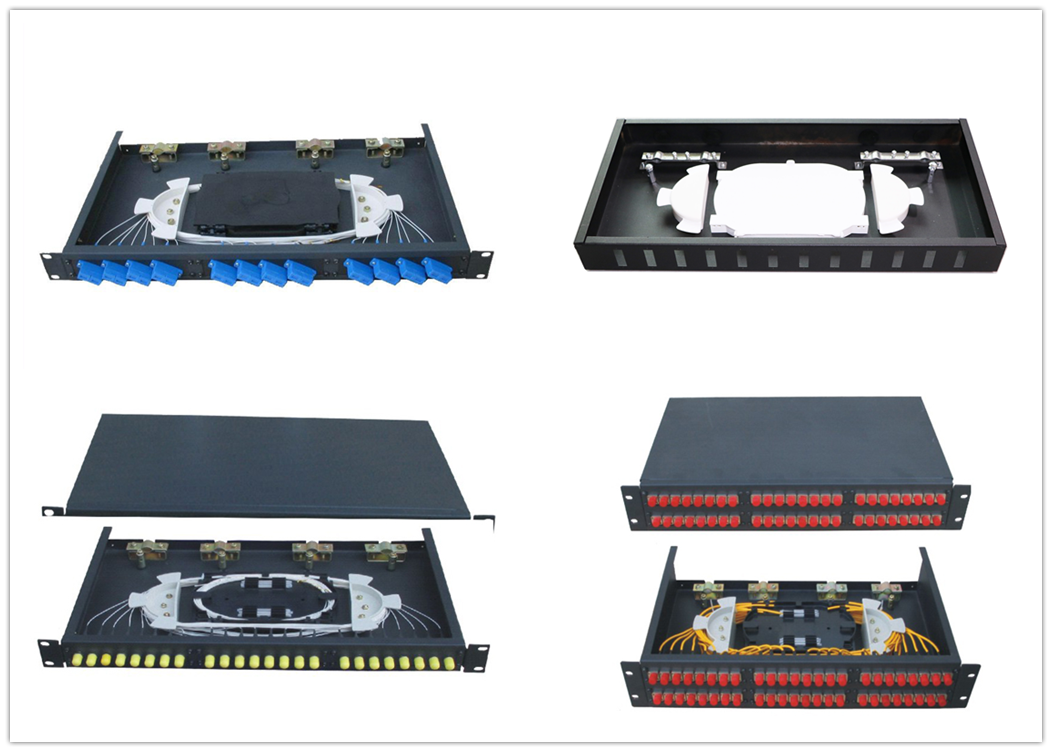

Product Picture:
