UPC APC MPO Cassette Patch Panel Rack Mount Splicing Termination
Box
Item | Fiber Optic Patch Panel |
Typle: | Fixed / Sliding |
Capacity: | 8,12,16,24,48 Core |
Connector: | LC / SC, SIMPLEX / DUPLEX |
POLISH: | UPC |
Product Size: | 480*250*480mm |
Dimension: | 19 Inch 1U/2U/3U/4U... |
Panel Thickness | 1.0mm / 1.2mm |
Panel Material | Black painted COLD Steel Material |
Packing | 1 pcs/box,10PCS/CARTON |
Net Weight | 4.8kg |
Accessories | Cable ties, mounting ear screws, and spiral wrap tube |
Note : This datasheet can only be a reference, but not a supplement
to the contract.Please contact our sales people for more detailed information. |
Fiber Connector
| Connector A |
| Connector Type | 8, 12 or 24 -Fiber MPO /MTP |
| Ferrule of end-face | UPC, APC |
| Housing Color | MM (Beige/Aqua), SM (Yellow/Green) |
| Insertion Loss, Typical | ≤ 0.10 dB |
| Insertion loss, max. | ≤ 0.35 dB |
| Durability(500 Matings) | < 0.2dB |
| Connector B |
| Connector Type | LC/SC |
| Ferrule of end-face | UPC, APC |
| Housing Color | Blue, Beige, Aqua |
| Insertion Loss, Typical | ≤ 0.10 dB |
| Insertion loss, max. | ≤ 0.35 dB |
| Durability(1000 Matings) | < 0.2dB |
Fiber Cable
| Fiber Type | OS2, OM1, OM2, OM3, OM4 |
| Fiber Count | 8, 12, 24 cores |
| Outer diameter | 12cores: 4.5±0.2mm ; 24cores:5.4±0.2mm |
| Outer jacket Colour | OS2(Yellow),OM2(Orange),OM3(Aqua),OM4(Violet) |
| Outer jacket material | LSZH,OFNP,OFNR |
| Tensile strength | 500N |
| Operating Temperature | -20 ~ +60°C |
| Storage Temperature | -40 ~ +70°C
|
Description:
MPO/MTP fiber optic patch cords are with MPO/MTP fiber optic
connectors.
They are several fiberglass connections in one such patch cord, for
example, 4 fiber, 8 fiber, 12 fiber, etc.
MPO 1U Patch Panel is used in the data center cabling region and
connected the ports with cable to the back of the panel.
It is usually assembled in 19 inch frame rack and cabinet.
You can assemble with 4 pcs dapter panel, and it can reach to 1U 96
cores splicing.
Features:
100% optic test
Good exchange ability and good durability;
Available in fiber bunch, ribbon fan-out, pigtail available;
Meets ISO9001, ROHS and Bell core GR 326-core standards;
Customized specifications welcomed.
Fast delivery with super high quality
Long time after-sales service warranty
Customize is available according to the requirements
Application:
CATV, metro Test equipment
Telecommunication networks
Local area networks (LAN)
Wide area networks (WAN)
Premise installations
Order Information:
MPO/UPC-MPO/UPC-MM-12cores-2M
① ② ① ② ③ ④ ⑤
① Connector type: FC, SC, LC, ST, MTRJ, MU,MPO, DIN, D4, SMA
② Ferrule End-face: PC, UPC, APC
③ Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or
62.5/125um)
④ Fiber core: 4 core, 8 core, 12 core, 24 core
⑤Cable Length: 1, 2, 3 meter or customized
⑥Cable type: PVC, LSZH, OM3, OFNR, OFNP

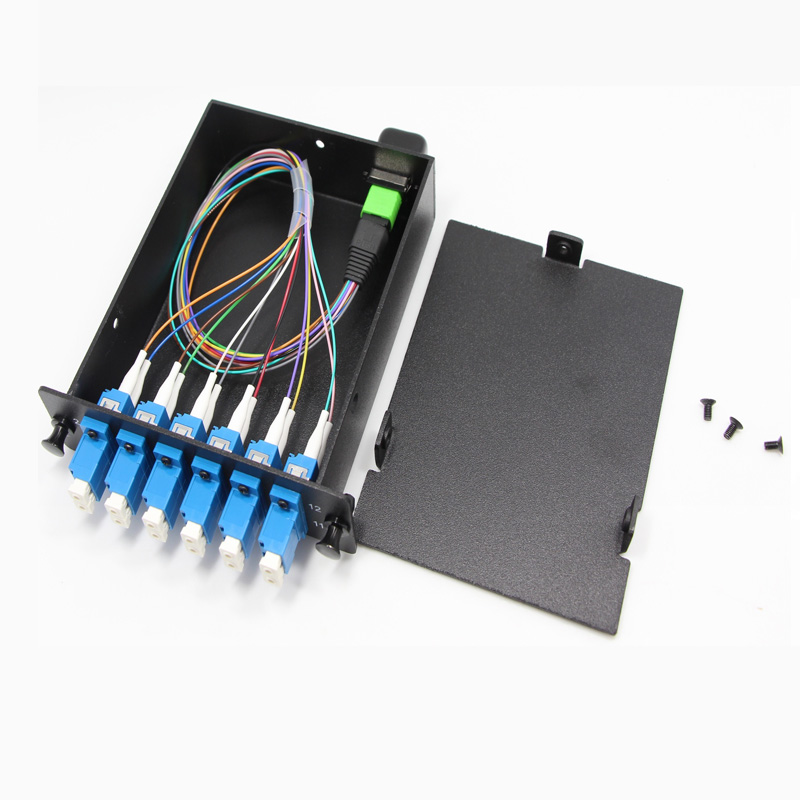

Product Picture:
