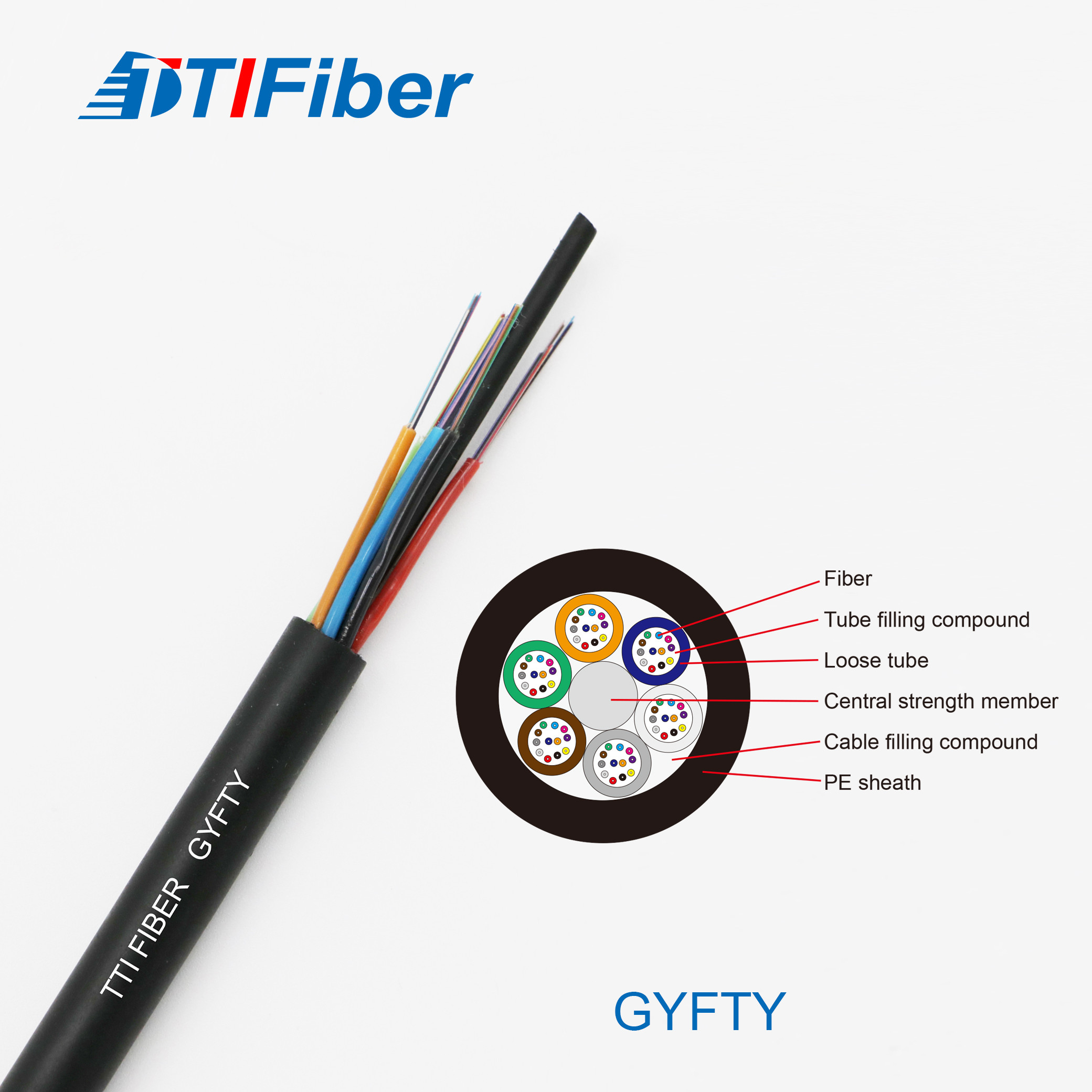

    GYFTY Non Metallic Cable 125μm FRP Water Resistant Loose Tube

    Ask Lasest Price
    Brand Name : TTI OR OEM
    Model Number : GYFTY
    Certification : ISO9001 / ISO14001 / ROHS
    Price : 0.13
    Payment Terms : T/T, , paypal, ,
    Supply Ability : 10KM /month
    Delivery Time : 5-9 days
    • Product Details
    • Company Profile

    GYFTY Non Metallic Cable 125μm FRP Water Resistant Loose Tube

    GYFTY Non Metallic Cable 125μm FRP Water Resistant Loose Tube

    1. Descreption of GYFTY non-metallic cable(FRP)

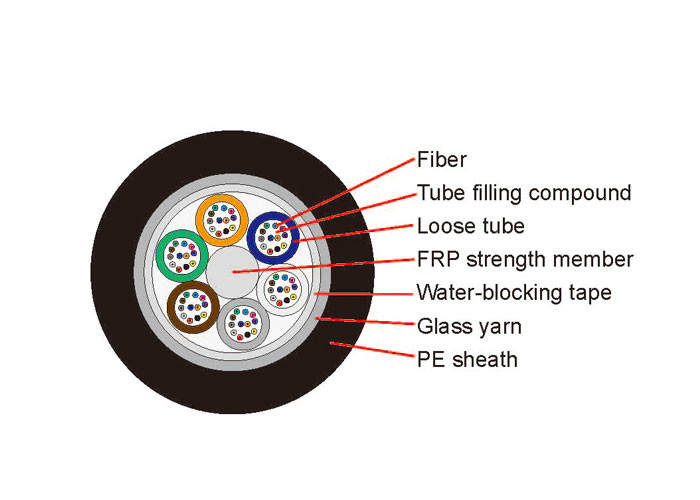

    FRP non-metallic Single Jacket Waterproof Dielectric Loose Tube Used in power transmission system,excessive thunder areas and high electromagnetic interface SM or MM GYFTY fiber optic cable Single Jacket Non-Metal Member Waterproof Dielectric Loose Tube Outdoor Cable is a non-metallic cable used for power transmission system, excessive thunder areas and high electromagnetic interface. Its mainly application is for aerial or duct use. We supply both single mode GYFTY cable and multimode GYFTY cables.The FRP as the central member enforce the tensile strength of the cable,and ensures the resistance to electromagnetic interference. High strength loose tube is hydrolysis resistant and the tube filling compound ensures a critical protection of the fiber. The water-blocking material between the out jacket and the loose tube is applied to keep the cable compact and watertight.

    2. Feature

    Excellent mechanical and temperature performance
    Special tube filling compound ensure a critical protection of fiber and resist the water.
    Single FRP as the central strength member to withstand axial loads.
    PE sheath protects cable from ultraviolet radiation.
    100% core filling water prevent cable jelly to ensure the cable watertight.


    3.Optical Characteristics
    ItemG.652G.65550/125um62.5/125um
    Attenuation@850nm≤3.0dB/km≤3.2dB/km
    @1300nm≤1.0dB/km≤1.2dB/km
    @1310nm≤0.36dB/km≤0.40dB/km
    @1550nm≤0.22dB/km≤0.23dB/km
    Bandwidth
    (Class A)
    @850nm≥500MHZ.km≥200MHZ.km
    @1300nm≥1000MHZ.km≥600MHZ.km
    Numerical aperture0.200±0.015NA0.275±0.015NA
    Cable cut-off wavelength≤1260mm≤1450mm
    4. Technical Parameters
    Cable TypeFiber CountTubesFillersCable Diamete
    rmm
    Cable Weight kg/kmTensile strength
    Long/Short term
    (N)
    Crush resistance
    Long/Short term
    (N/100mm)
    Bending radius
    Static/Dynamic
    (mm)
    GYFTY-2~62~6158.870600/1500300/100010D/20D
    GYFTY-8~128~12248.870600/1500300/100010D/20D
    GYFTY-20~2420~24428.870600/1500300/100010D/20D
    GYFTY-32~3632~36608.870600/1500300/100010D/20D
    GYFTY-38~4838~48428.870600/1500300/100010D/20D
    GYFTY-50~6050~60518.870600/1500300/100010D/20D
    GYFTY-62~7262~72608.870600/1500300/100010D/20D
    GYFTY-86~9686~968012.297600/1500300/100010D/20D
    GYFTY-134~144134~14412013.5108600/1500300/100010D/20D
    Environmental characteristics
    Operating temperature-40~+70℃
    Storage temperature-40~+70℃
    Standards
    Comply with standard YD / T 901, IEC 60794-1 and other standards.
