    GYTS Outdoor Fiber Optic Cable Anti Electromagnetic Field Interference

    Ask Lasest Price
    Brand Name : TTI OR OEM
    Model Number : GYTS outdoor cable
    Certification : ISO9001 / ISO14001 / ROHS
    Payment Terms : T/T, , paypal, ,
    Supply Ability : 10KM /month
    Delivery Time : 5-9 days
    Price : 0.13
    • Product Details
    • Company Profile

    GYTS Outdoor Fiber Optic Cable Anti Electromagnetic Field Interference

    GYTS Outdoor Fiber Optic Cable Anti Electromagnetic Field Interference

    1. Product Description of GYTS outdor fiber optic cable with steel tap.

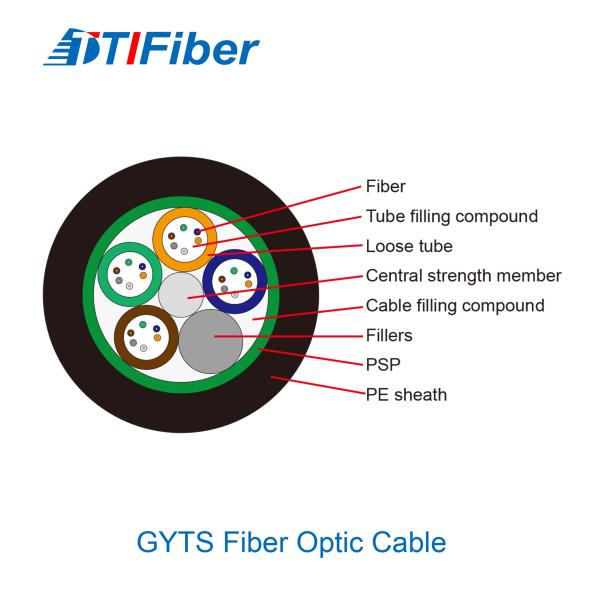

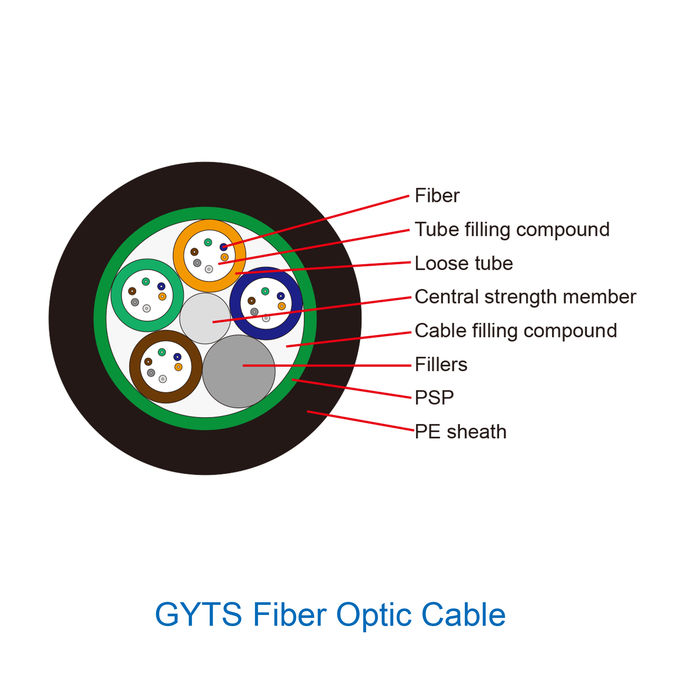

    The fibers, 125μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire, sometimes sheathed with polyethylene (PE) for cable with high fiber count, locates in the center of core as a metallic strength member. Tubes (and fillers) are stranded around the strength member into a compact and circular cable core. The PSP is longitudinally applied over the cable core, which is filled with the filling compound to protect it from water ingress. The cable is completed with a PE sheath.

    2. Feature

    ♦ Excellent mechanical and temperature performance

    ♦ Special tube filling compound ensure a critical protection of fiber and resist the water.

    ♦ Single steel wire as the central strength member to withstand axial loads.

    ♦ PE sheath protects cable from ultraviolet radiation.

    ♦ 100% core filling water prevent cable jelly to ensure the cable watertight.

    ♦ Corrugated steel tape longitudinal cover cable core and provide good crush resistance.


    3. Optical Characteristics

    ItemG.652G.65550/125um62.5/125um
    Attenuation@850nm  ≤3.0dB/km≤3.2dB/km
    @1300nm  ≤1.0dB/km≤1.2dB/km
    @1310nm≤0.36dB/km≤0.40dB/km
    @1550nm≤0.22dB/km≤0.23dB/km
    Bandwidth
    (Class A)
    @850nm  ≥500MHZ.km≥200MHZ.km
    @1300nm  ≥1000MHZ.km≥600MHZ.km
    Numerical aperture  0.200±0.015NA0.275±0.015NA
    Cable cut-off wavelength≤1260mm≤1450mm


    4. Technical Parameters

    Cable TypeFiber CountTubesFillersCable Diamete
    rmm
    Cable Weight kg/kmTensile strength
    Long/Short term
    (N)
    Crush resistance
    Long/Short term
    (N/100mm)
    Bending radius
    Static/Dynamic
    (mm)
    GYTS-2~62~6149.0100600/1500300/100010D/20D
    GYTS-8~128~12239.0100600/1500300/100010D/20D
    GYTS-14~1814~18329.0100600/1500300/100010D/20D
    GYTS-20~2420~24419.0100600/1500300/100010D/20D
    GYTS-26~3026~30509.0100600/1500300/100010D/20D
    GYTS-32~3632~36609.01001000/3000300/100010D/20D
    GYTS-38~4838~48419.01001000/3000300/100010D/20D
    GYTS-50~6050~60509.01001000/3000300/100010D/20D
    GYTS-62~7262~72609.01001000/3000300/100010D/20D
    GYTS-86~9686~968013.51921000/3000300/100010D/20D
    GYTS-134~144134~14412016.92271000/3000300/100010D/20D
    GYTS-204~216204~21618016.92401000/3000300/100010D/20D



    GYTS Outdoor G652D G657A Fiber Optic Cable Singlemode with PE sheath 0GYTS Outdoor G652D G657A Fiber Optic Cable Singlemode with PE sheath 1

    GYTS Outdoor G652D G657A Fiber Optic Cable Singlemode with PE sheath 2
