    12 Core 24 Cores G652D outdoor fiber optic cable Aerial Application

    Ask Lasest Price
    Brand Name : TTI OR OEM
    Model Number : GY
    Certification : ISO9001
    Price : 0.13
    Payment Terms : T/T,
    Supply Ability : 4000KM
    Delivery Time : 10-20days
    • Product Details
    • Company Profile

    12 Core 24 Cores G652D outdoor fiber optic cable Aerial Application

    12 Core 24 Cores G652D Outdoor Fiber Optic Cable Aerial Application


    TTI FIBER outdoor adss 12 core 24 cores g652d fiber optic cable


    Fiber Optical Cable


    Description

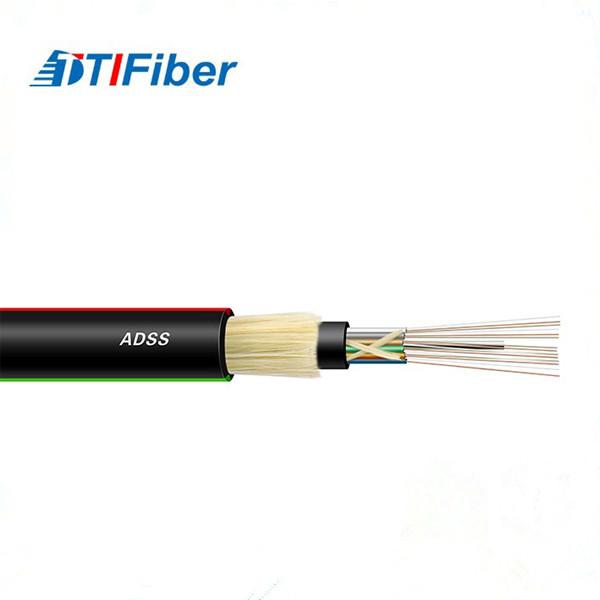

    ADSS cable is loose tube stranded. Fibers, 250μm,are positioned into a loose tube made of high modulus plastics. The tubes are filled with a water-resistant filling compound. The tubes (and fillers) are stranded around a FRP (Fiber Reinforced Plastic) as a non-metallic central strength member into a compact and circular cable core. After the cable core is filled with filling compound.It is covered with thin PE (polyethylene) inner sheath. After stranded layer of aramid yarns are applied over the inner sheath as strength member, the cable is completed with PE or AT (anti-tracking) outer sheath.


    Technical data

    Cable fiber count
    /
    2~30
    32~60
    62~72
    Structure
    /
    1+5
    1+5
    1+6
    Fiber style
    /
    G.652D
    Central strength member
    material
    mm
    FRP
    Diameter (average)
    1.5
    1.5
    2.1
    Loose Tube
    Material
    mm
    PBT
    Diameter (average)
    1.8
    2.1
    2.1
    Thickness(average)
    0.32
    0.35
    0.35
    Max fiber/loose tube
    6
    12
    12
    Tubes color
    Full color identification
    Fiber excess length
    %
    0.7~0.8
    Water resistance
    Material
    /
    Cable jelly
    Inner sehath
    material
    mm
    MDPE
    Inner sheath
    0.9mm
    Non-metallic strengthen components
    Material
    /
    Aramid Yarn
    Outer sheath
    material
    mm
    MDPE
    Outer sheath
    1.8mm
    Cable diameter(average)
    mm
    10.9
    11.5
    12.1
    Cable weight (Approximate)
    kg/km
    95
    110
    120
    Cable Sectional area
    mm2
    93.31
    103.87
    114.99
    Attenuation coefficient(Max)
    1310nm
    dB/km
    0.35
    1550nm
    0.21
    Rated Tensile Strength(RTS)
    kn
    6
    Max allowed tension( MAT)
    kn
    2.5
    Annual average operating tension (EDS)
    kn
    3.2
    Young's modulus
    kn/mm2
    7.8
    Coefficient of thermal expansion
    10-6/℃
    9
    Crush resistance
    Long term
    N/100mm
    1100
    Short term
    2200
    Permission Bent Radius
    static
    mm
    15 of OD
    dynamic
    20 of OD
    Temperature
    When laying
    -20~+60
    Storage and transportation
    -40~+70
    runing
    -40~+70
    Scope of application
    Suitable for voltage level under 110kV, wind speed below 25m/s, icing 5mm
    Cable Marks
    Company Name ADSS-××B1-PE-100M DL/T 788-2001 ××××M Year
    (Or at customer’s request)

    Characteristics:

    1.Good mechanical and temperature performance.
    2.Light weight and small diameter reducing the load caused by ice and wind and the load on towers and backdrops.
    3.Aramid yarn as strength making cable have excellent tensile strength performance.

    4.Large span lengths and the largest span is over 1000m.

    Storage/Operating Temperature:

    -40℃ to + 70℃


    Application

    Adopted to the communication environment with high-voltage transmission network,lightning-prone areas and large span by the laying method of aerial.
