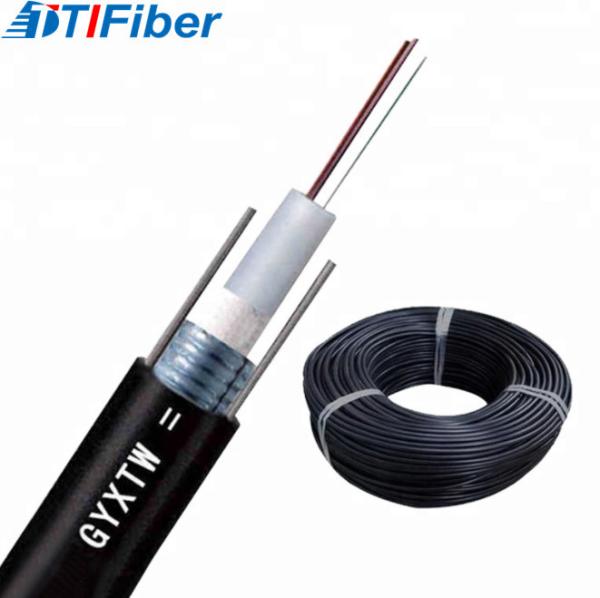

GYXTW G652D Black Fiber Cable Single Mode Armoured Duct Aerial
Armoured Duct / Aerial Fibre Optic Patch CORD Single Mode 4 6 12
Core GYXTW
Specification:
| G652D | G655 | 50/125μm | 62.5/125μm |
| Attenuation(+20deg C) | @850nm | | | ≤ 3.0dB/KM | ≤ 3.0 dB/KM |
| @1300nm | | | ≤ 1.0dB/KM | ≤ 1.0 dB/KM |
| @1310nm | ≤ 0.36 dB/KM | -- | | |
| @1550nm | ≤ 0.22 dB/KM | ≤0.23dB/km | | |
| Bandwidth(Class A) | @850nm | | | ≥ 500 MHz-KM | ≥200 MHz-KM |
| @1300nm | | | ≥1000 MHz-KM | ≥600 MHz-KM |
| Numerical Aperture | | | 0.200±0.015NA | 0.275±0.015NA |
| Cable Cut-off Wavelength λcc | ≤1260nm | | | |
Characteristic:
1. GYXTW is an outdoor use optical fiber cable suitable for duct and
aerial applications.
2. We supply GYXTW fiber optic cable from 2 fiber cores to 24 fiber
cores.
3. Both single mode type and multimode types are available.
4. Fiber optic cable GYXTW, 2~12 fibers, jelly filled and fiber
contained central loose tube, copolymer coated steel tape, two parallel steel wires 1.2mm, PE outer sheath, G652D SM fiber,
detailed specification on your request.
Feature:

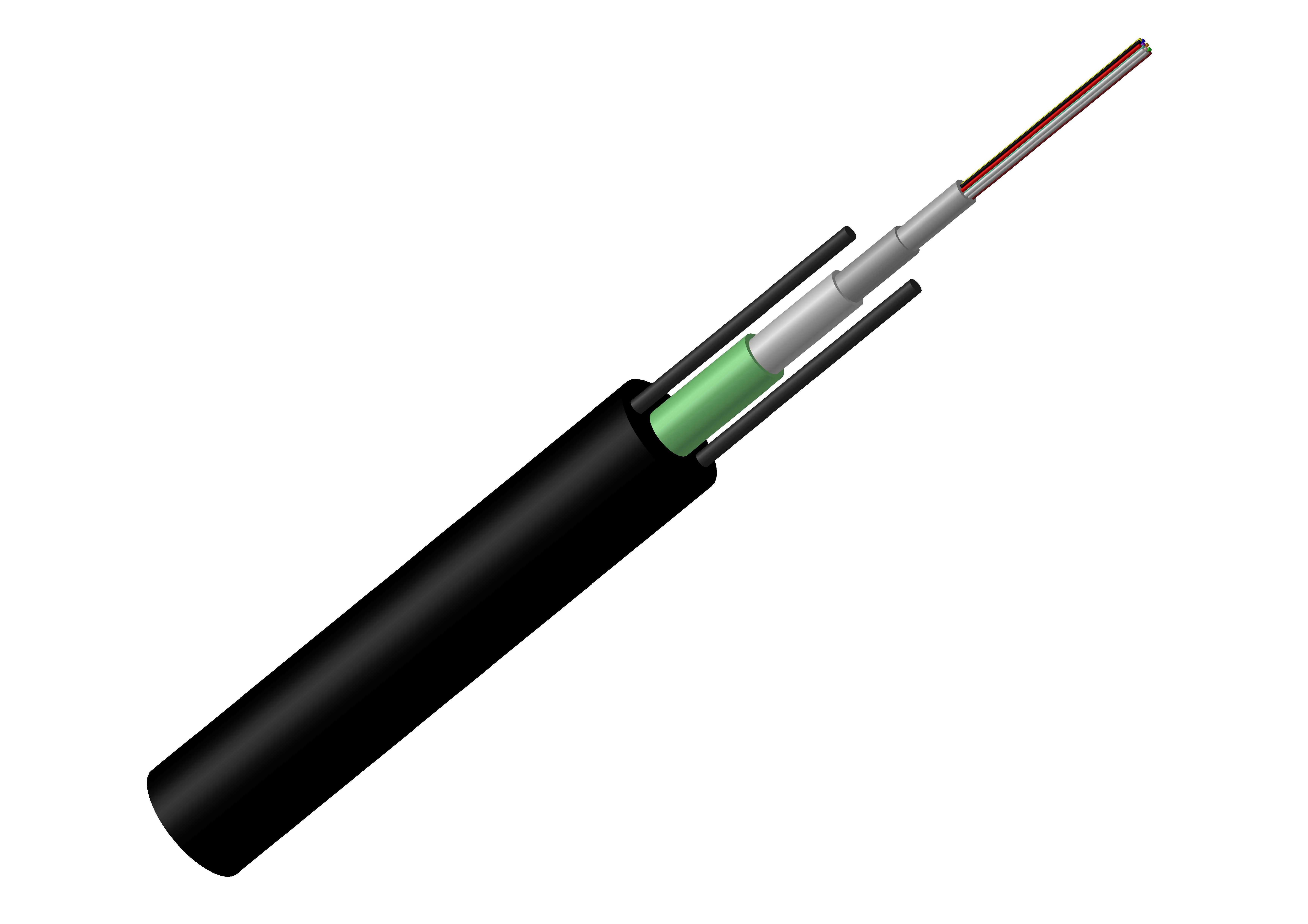

The fibers, 125μm, are positioned in a loose tube made of a high
modulus plastic. The tubes are filled with a water-resistant
filling compound. The tube is wrapped with a layer of PSP
longitudinally. Between the PSP and the loose tube water-blocking
material is applied to keep the cable compact and watertight. Two
parallel steel wires are placed at the two sides of the steel tape.
The cable is completed with a polyethylene (PE) sheath.
| Performance | Long-term | Short-term |
| Max.Tension(N) | 3500 | 7000 |
| Max.Crushing | 300 | 1000 |
| Resistance(N/100mm2) | 30D(Dynamic) | 15D(static) |
| Storage and operating temperature | -40℃ to +70℃ |
Application:
- Frequent lightning area and anti electric field : The subway,
tunnel
- Long-distance communication: Local trunk network & User network
- Duct and direct buried application
- Harsh environment
Product Picture:
