Aerial 24 Cores G652D Fiber Cable Steel Tape Figure 8 Messenger Wire

Aerial 24 Cores G652D Fiber Cable Steel Tape Figure 8 Messenger Wire

Figure 8 Messenger Wire G652D 24 Cores GYXTC8A/S Fiber Optical Cable

Specification:

	G652D	G655	50/125μm	62.5/125μm
Attenuation(+20deg C)	@850nm			≤ 3.0dB/KM	≤ 3.0 dB/KM
	@1300nm			≤ 1.0dB/KM	≤ 1.0 dB/KM
	@1310nm	≤ 0.36 dB/KM	--
	@1550nm	≤ 0.22 dB/KM	≤0.23dB/km
Bandwidth(Class A)	@850nm			≥ 500 MHz-KM	≥200 MHz-KM
Bandwidth(Class A)	@1300nm			≥1000 MHz-KM	≥600 MHz-KM
Numerical Aperture				0.200±0.015NA	0.275±0.015NA
Cable Cut-off Wavelength λcc		≤1260nm

Feature:

The fibers, 125μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. The tube is wrapped with a layer of PSP longitudinally. Between the PSP and the loose tube water-blocking material is applied to keep the cable compact and watertight. Two parallel steel wires are placed at the two sides of the steel tape. The cable is completed with a polyethylene (PE) sheath.

Performance	Long-term	Short-term
Max.Tension(N)	3500	7000
Max.Crushing	300	1000
Resistance(N/100mm2)	30D(Dynamic)	15D(static)
Storage and operating temperature	-40℃ to +70℃

Application:

Frequent lightning area and anti electric field : The subway, tunnel
Long-distance communication: Local trunk network & User network
Duct and direct buried application
Harsh environment

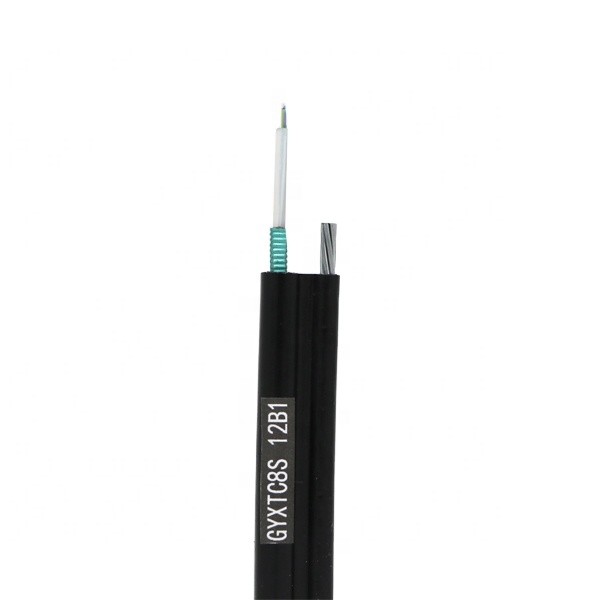

Product Picture:

Aerial 24 Cores G652D Fiber Cable Steel Tape Figure 8 Messenger Wire

FAQ:

1. Why choose TTI FIBER ?
(1)Professional manufacturer: Low MOQ, free samples are available.
(2)Quality assurance:Stable high quality.
(3)Customers solutions:Quick.
(4)Win-Win Price:Save much costs, bring more benefits for customers.

2. Do you accept OEM,ODM?
Yes, we accept them .

3. Can you print our LOGO?
Sure, Your LOGO can be printed on the boxes , or products.

4. What's the method of shipment?
We accept all shipment , such as Delievery,ocean transport, land transport , airport transport.

5. What's the Payment?
We accept all payments , such as LC,TT,DP,DA,Paypal,,Money Gram.
