24 Core Outdoor Armored Fiber Cable Single Mode Communication Cable

Ask Lasest Price
Brand Name :	TTI OR OEM
Model Number :	GYTA/ GYTS Fiber Optical Cable
Certification :	ISO9001 / ISO14001 / ROHS
Price :	Negociated
Payment Terms :	L/C, D/A, D/P, T/T, ,
Supply Ability :	10000 km
Delivery Time :	Negociated

Add to Cart

Product Details
Company Profile

24 Core Outdoor Armored Fiber Cable Single Mode Communication Cable

24 Core Outdoor Armored Fiber Cable Single Mode Communication Cable

Communication Cable GYTS 24 core Singlemode Outdoor Armored Fiber Optic Cable

1. Specification:

Item	GYTA GYTS 24 Core Single Mode Fiber Optic Cable Price Per Meter
Feature	1. Choice of fiber type 2. Color code of fiber 3. High water & crush resistance 4. Choice of sheath material 5. Low attenuation and dispersion 6. Good flexibility and bending performance
Application	Suitable for external application in duct and aerial
Structure Characters	1. Metallic strengthen member (Phosphated steel wire) 2. Steel taoe under PE sheath
Temperature	1. Operating temperature: -20℃ to 70℃ 2. Storage temperature: -20℃ to 70℃

2. Feature:

1. Good mechanical and temperature performance
2. High strength loose tube that is hydrolysis resistant.
3. Special tube filling compound ensure a critical protection of fiber.
4. Crush resistance and flexibility.
5. PSP enhancing moisture-proof
6. Tow parallel steel wires ensure tensile strength
7. Small diameter, light weight and easily installation

Fiber Type		G.652	G655	50/125μm	62.5/125μm
Attenuation(+20℃)	@850nm			≤3.0 db/km	≤3.3 db/km
	@1300nm			≤1.0 db/km	≤1.0 db/km
	@1310nm	≤0.36 db/km	≤0.40 db/km
	@1550nm	≤0.22 db/km	≤0.23 db/km
Bandwidth	@850nm			≥500MHz.km	≥200MHz.km
Bandwidth	@1300nm			≥500MHz.km	≥500MHz.km
Numerical Aperture				0.200±0.015NA	0.275±0.015NA
Cable Cut-off Wavelength		≤1260 nm	≤1450 nm

3. Application:

1. Long-distance communication.
2. It's suitable for duct, especially for the places with high requirement for moisture-proof.
3. Installation: Duct, direct-buried or non-self-supporting aeri

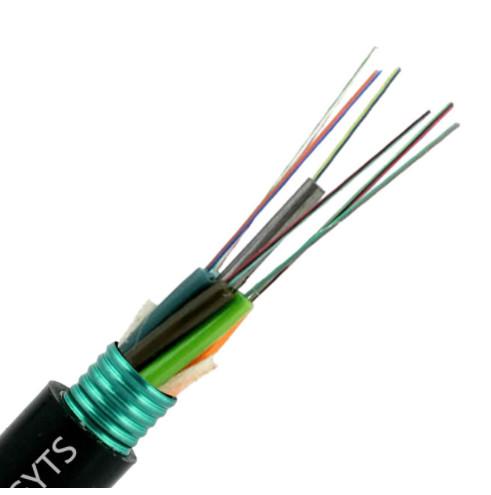

4. Product Picture:

FAQ:

1. Why choose TTI FIBER ?
(1)Professional manufacturer: Low MOQ, free samples are available.
(2)Quality assurance:Stable high quality.
(3)Customers solutions:Quick.
(4)Win-Win Price:Save much costs, bring more benefits for customers.

2. Do you accept OEM,ODM?
Yes, we accept them .

3. Can you print our LOGO?
Sure, Your LOGO can be printed on the boxes , or products.

4. What's the method of shipment?
We accept all shipment , such as Delievery,ocean transport, land transport , airport transport.

5. What's the Payment?
We accept all payments , such as LC,TT,DP,DA,Paypal,,Money Gram.
