GYTXW GYTC8S GJFJV GJXH GJXFH Fiber Optical Cable G652D G657A1
G657A2
GYTXW/GYTC8S/GJFJV/GJXH/GJXFH/4/6/8/12/24/48/72/96/128/288 Core
Fiber Optical Cable
1. Specification:
Single mode or multimode fibres are position in a loose tube made
of a high modulus plastic.The tube are filled with
a water resistant filling compound.A steel wire,sometimes sheathed
with ployethylene(PE) for cable with high fiber
count,locates in the center of core as a metallic strength member.
Tubes (and fillers) are stranded around the strength member into a
compact and circular cable core.the cable core is
filled with filling compound to protect it from water ingress,over
which a thin PE inner sheath is applied.After the PSP
is longitudinally applied overthe inner sheath, the cable is
completed with a PE sheath.
| GYTXW/GYTC8S/GJFJV/GJXH/GJXFH Fiber Optic Cable Price Per Meter |
| 1. Choice of fiber type2. Color code of fiber 3. High water & crush resistance 4. Choice of sheath material 5. Low attenuation and dispersion 6. Good flexibility and bending performance |
| Suitable for external application in duct and aerial |
| 1. Metallic strengthen member (Phosphated steel wire)2. Steel taoe under PE sheath |
| 1. Operating temperature: -20℃ to 70℃2. Storage temperature: -20℃ to 70℃ |
2. Feature:
1. Good mechanical and temperature performance
2. High strength loose tube that is hydrolysis resistant.
3. Special tube filling compound ensure a critical protection of
fiber.
4. Crush resistance and flexibility.
5. PSP enhancing moisture-proof
6. Tow parallel steel wires ensure tensile strength
7. Small diameter, light weight and easily installation
Fiber Type | G.652 | G655 | 50/125μm | 62.5/125μm |
Attenuation(+20℃) | @850nm | | | ≤3.0 db/km | ≤3.3 db/km |
@1300nm | | | ≤1.0 db/km | ≤1.0 db/km |
@1310nm | ≤0.36 db/km | ≤0.40 db/km | | |
@1550nm | ≤0.22 db/km | ≤0.23 db/km | | |
Bandwidth | @850nm | | | ≥500MHz.km | ≥200MHz.km |
@1300nm | | | ≥500MHz.km | ≥500MHz.km |
Numerical Aperture | | | 0.200±0.015NA | 0.275±0.015NA |
Cable Cut-off Wavelength | ≤1260 nm | ≤1450 nm | | |
3. Application:
1. Long-distance communication.
2. It's suitable for duct, especially for the places with high
requirement for moisture-proof.
3. Installation: Duct, direct-buried or non-self-supporting aeri

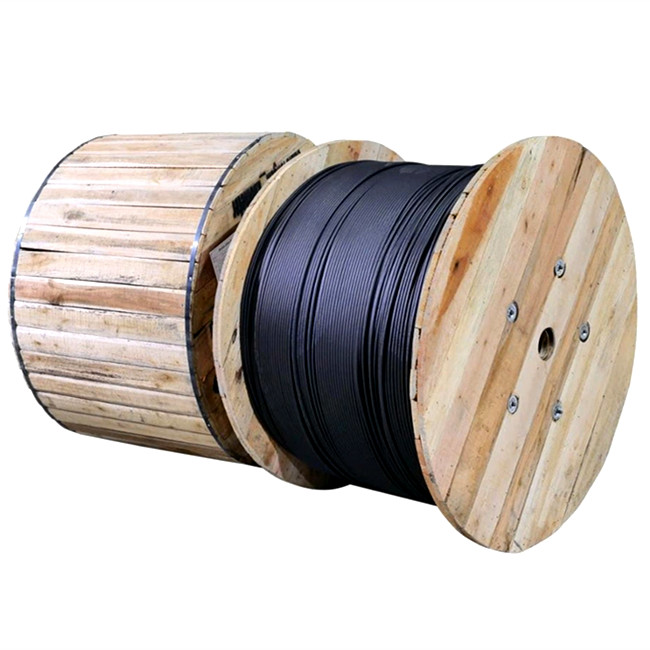

4. Product Picture:
5. FAQ:
1. Why choose TTI FIBER ?
(1)Professional manufacturer: Low MOQ, free samples are available.
(2)Quality assurance:Stable high quality.
(3)Customers solutions:Quick.
(4)Win-Win Price:Save much costs, bring more benefits for
customers.
2. Do you accept OEM,ODM?
Yes, we accept them .
3. Can you print our LOGO?
Sure, Your LOGO can be printed on the boxes , or products.
4. What's the method of shipment?
We accept all shipment , such as Delievery,ocean transport, land
transport , airport transport.
5. What's the Payment?
We accept all online payments.
