Type B 12 Fibers MPO Fiber Optic Patch Cord Female To LC SM
Breakout Cable Female to LC SM Type B, 12 Fibers MPO Patch Cord
MPO/MTP trunk cable, a cost-effective alternative to time-consuming
field termination, is designed for high-density fiber patching in
data centers which need space saving and reduce cable management
troubles.
Specification:
Model | SM | MM |
Connector Fiber Count | 8,12,24 core |
Polish | APC | PC |
Housing Color | Standard: green Elite: yellow | Standard: beige Elite: auqa |
Insertion Loss(Standard Type) | less than 0.7dB | less than 0.5dB |
Insertion Loss(Elite Type) | less than 0.35dB | less than 0.35dB |
Return Loss | PC＞50dB,APC＞60dB | ＞30dB |
Durability (500 matings) | less than 0.2dB | |
Test Wavelength | 1310/1550nm | 850/1300nm |
Fiber Type | OS2, OM1, OM2, OM3, OM4 |
Fiber Count | 8,12,24,48,72,96,144 cores |
Cable Diameter | 3.0mm, 5.5mm or customized |
Jacket Color | Yellow, Orange, Aqua. Purple |
Jacket Material | OFNR, OFNP, PVC, LSZH |
Tensile Strength | 500N |
Operating Temperature | —20 to 70℃ |
Storage Temperature | —40 to 75℃ |
Feature:
1. High Performance in IL & RL
2. 4,8,12 and 24 fiber connector terminations and assemblies
3. Designed for low loss and standard loss SM and MM applications
4. Economical solution for mass-termination of fiber
5. Suitable for MPO/MTP application
6. Ruggedized round cable, oval cable and bare ribbon options
available
7. Color coded housings available to differentiate fiber type,
polish type and/or connector grade
8. Compliant to directive 200/95/EC(RoHS)
9. MPO connector complies with IEC-61754-7
Application:
Data communication network
Optical System Access network
Storage area networking fiber channel
High density architectures

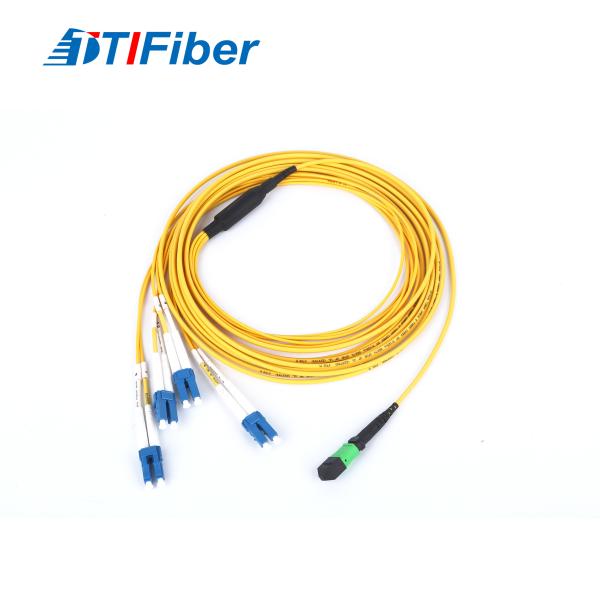

Product Picture:
