1.6mm 2.0mm G657A1 G657A2 Single Mode Patch Cord Simplex Aqua
SC/APC-SC/APC 1.6mm 2.0mm G657A1 G657A2 Singlemode Simplex Aqua
Fiber Optic Patch Cord
Specification:
Type | Standard,Master |
Style | LC,SC,ST,FC.MU,DIN,D4,MPO, SC/APC,FC/APC,LC/APC.MU/APC |
Fiber | Singlemode/Multimode
50/125, 62.5/125 (Multimode) OM2&OM1
50/125, 10G (Multimode) OM3 |
Cable | Simplex, Duplex
Φ3.0mm, Φ2.0mm, Φ0.9mm
PVC or LSZH |
Polishing Manner | UPC,SPC,APC (8°& 6°) |
Insertion Loss | ≤ 0.1dB (For Singlemode Master)
≤ 0.25dB (For Singlemode Standard)
≤ 0.25dB (For Multimode)
Tested by JDS RM 3750 |
Return Loss
(Singlemode) | UPC ≥ 50dB
SPC ≥ 55dB
APC ≥ 60dB (typ.65dB)
Tested by JDS RM3750 |
Repeatability | ±0.1dB |
Operating temperature | -400C to 850C |
Geometry Requirement
( Singlemode) | Ferrule Endface Radius
7mm ≤ R ≤ 12mm (For APC)
10mm ≤ R ≤ 25mm (For Standard)
Apex Offset ≤ 30 μm (For Master)
Apex Offset ≤ 50 μm (For Standard)
Undercut -50nm ≤ U ≤ 50nm
Tested by DORC ZX-1 |
Fiber Optic Patch Cable is also known as fiber optic jumper or
fiber optic patch cord. It is composed of a fiber optic cable
terminated with different connectors on the ends. Fiber optic patch
cables are used in two major application areas: computer work
station to outlet and patch panels or optical cross connect
distribution center. TTI fiber provides various types of fiber
optic patch cables including single-mode, multimode, multi-core,
armored patch cables, as well as fiber optic pigtails and other
special patch cables. For most of the patch cables, the SC, ST, FC,
LC, MU, MTRJ,connectors (APC/UPC polish) are all available. In
addition, we also have MTP/MPO cables in stock.
Feature:
1. Low insertion loss
2. High return loss
3. Excellent Repeatability, exchangeability, wearability and
stability.
4. Environmentally Stable
Application:
1. FTTH, LAN, PON & Optical CATV, Local ring net
2. Optical fiber communication system
3. Optical fiber test equipment
4. Optical fiber sensor
5. Industry and military application
Mode | Singlemode |
Connection Style | Simplex |
Connectors | SC APC to SC APC |
Fiber | 9/125um |
Polish Type | APC |
Typical Insertion Loss | ≤ 0.20 dB |
Maximum Insertion Loss | ≤ 0.30 dB |
Fiber Numbers | Fiber | 1 |
Colo Fiber | Color | Blue 2,5 B 5/6 |
class | Fiber | A/B (BLI A/B) G657A2 |
Operating Temperature | ºC | -20 a +65 |
Installation temperature | ºC | 0 a +40 |
Storage Temperature | ºC | -20 a +65 |
Eccentricity of the optical element | % | ≤10 |
Outer Diameter of Optical Element | mm | 0,90 ±0,15 |
Nominal cord diameter | mm | 2,9 ±1 |
External coating | - | Thermoplastic flame retardant material |
Exterior coating color | Color | White with minimum brightness 8,5 maximum 9,4 -
Minimal saturation - Minimal light 10B maximum 5PB |
Insertion loss | dB | Typical ≤0.15dB Maximum ≤0.3dB |
Return loss | dB | 50~ 60dB |

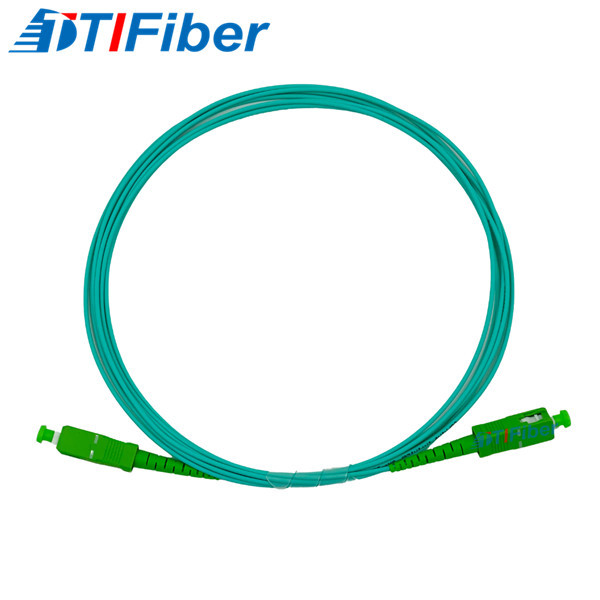

Product Picture:
FAQ:
1. Why choose TTI FIBER ?
(1)Professional manufacturer: Low MOQ, free samples are available.
(2)Quality assurance:Stable high quality.
(3)Customers solutions:Quick.
(4)Win-Win Price:Save much costs, bring more benefits for
customers.
2. Do you accept OEM,ODM?
Yes, we accept them .
3. Can you print our LOGO?
Sure, Your LOGO can be printed on the boxes , or products.
4. What's the method of shipment?
We accept all shipment , such as Delievery,ocean transport, land
transport , airport transport.
5. What's the Payment?
We accept all payments , such as LC,TT,DP,DA,Paypal,,Money Gram.
