Outdoor GYFTS Optical Fiber Cable Direct Buried Telecommunication

Outdoor GYFTS Optical Fiber Cable Direct Buried Telecommunication

Underground Outdoor Armoured G652D Loose Tube 12 / 24 / 48 / 96 / 288 Core Singlemode Optical Cable GYFTY53

1. Specification:

GYFTS is used for duct or aerial applications. These steel tape armored cables are suitable for installation for long haul communication and LANs, especially suitable for the situation of high requirements of moisture resistance. It is the stranded loose tube fiber optic cable with compact structure; the cable jacket is made of strong Polyethylene; High strength loose tube that is hydrolysis resistant.

Wolon provides GYFTS from 4 fiber cores to 288 fiber cores. Both single mode type and multi-mode types are available. We also provide Customized Service such as fiber number, fiber color and cable length, etc.

cable count	out sheath diameter	weight	minimum allowable tensile strength (N)	minimum allowable crush load	min bending radius	suitable temperature
cable count	out sheath diameter	weight	minimum allowable tensile strength (N)	(N/100 mm)	(N)	suitable temperature
CORE	(MM)	(kg)	short/long	short/long	short/long	℃
24	10.5	105	1500/600	1000/300	20 D/10 D	20
36	10.5	105	1500/600	1000/300	20 D/10 D	20
48	10.5	105	1500/600	1000/300	20 D/10 D	20
60	12	150	1500/600	1000/300	20 D/10 D	20
72	12	150	1500/600	1000/300	20 D/10 D	20
96	12	150	1500/600	1000/300	20 D/10 D	20

2. Characteristic:

Good mechanical and temperature performance 2. High strength loose tube that is hydrolysis resistant 3. Special tube filling compound ensure a critical protection of fiber 4. Crush resistance and flexibility 5. The following measures are taken to ensure the cable watertight: a.Steel wire used as the central strength member b.Loose tube filling compound c.100% cable core filling d.PSP enhancing moisture-proof e.Water-blocking material

3. Feature:

1. Excellent mechanical and environmental performance.
2. Adopt optic fiber ribbon compact structure light weight.
3. Steel wire strength, filler protect, steel tape armored.
4. Good moisture-resistant.

NO.	Model	Description	Applications
1	GYTA53	GYTA53 outdoor fiber optic cable,Metallic strength member,layer filling loose tube, Steel PE sheath, Corrugated steel tape armored,PE outer sheath	Pipeline laying &Direct burial
2	GYTA54	GYTA54 outdoor fiber optic cable,Metallic strength member,layer filling loose tube, Aluminium PE sheath, Corrugated steel tape armored,PE outer sheath, Anti-termite	Pipeline laying& Direct burial,Anti-termite
3	GYTY53	GYTY53 outdoor fiber optic cable,Metallic strength member,layer filling loose tube, PE sheath,Corrugated steel tape armored,PE outer sheath	Pipeline laying& Direct burial
4	GYTZY53	GYTZY53 outdoor fiber optic cable,Metallic strength member,layer filling loose tube, PE sheath,Corrugated steel tape armored,PE outer sheath,Flame-retardant	Pipeline laying& Direct burial
5	GYTY54	GYTY54 outdoor fiber optic cable,Metallic strength member,layer filling loose tube, PE sheath,Corrugated steel tape armored,PE outer sheath,Anti-termite	Pipeline laying&Direct burial,Anti-termite
6	GYTA33	GYTA33 outdoor fiber optic cable,Metallic strength member,layer filling loose tube, Steel PE sheath,anti-termite	Direct burial&Underwater laying
7	GYTZA33	GYTZA33 outdoor fiber optic cable,Metallic strength member,layer filling loose tube, PE sheath,Single steel wire PE outer sheath, Flame-retardant	Direct burial&Underwater laying
8	GYTA34	GYTA34 outdoor fiber optic cable,Metallic strength member,layer filling loose tube, PE sheath,Single steel wire armored,PE outer sheath, Anti-termite	Direct burial&Underwater laying,Anti-termite
9	GYTY53+33	GYTY53+33 outdoor fiber optic cable,Metallic strength member,layer filling loose tube,FE sheath,Corrugated steel tape PE sheath,Single steel wire armored,PE outer sheath	Direct burial&Underwater laying
10	GYTY53+333	GYTY53+333 outdoor fiber optic cable,Metallic strength member,layer filling loose tube,FE sheath,Corrugated steel tape PE sheath,Double steel wire armored,PE outer sheath	Direct burial&Underwater laying
11	GYTA53+333	GYTA53+333 outdoor fiber optic cable,Metallic strength member,layer filling loose tube,Aluminium-armored,FE sheath,Corrugated steel tape PE sheath, Double steel wire armored,PE outer sheath	Direct burial&Underwater laying

4. Application:

Frequent lightning area and anti electric field : The subway, tunnel
Long-distance communication: Local trunk network & User network
Duct and direct buried application
Harsh environment

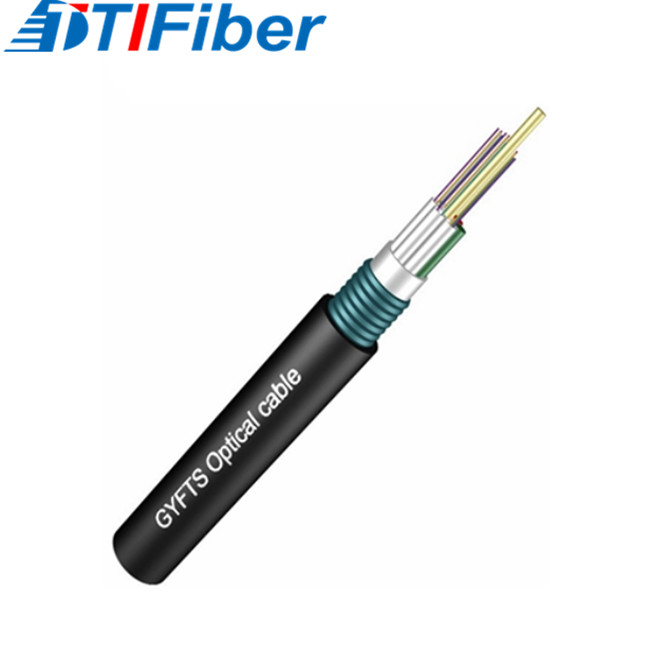

5. Product Picture:

Outdoor GYFTS Optical Fiber Cable Direct Buried Telecommunication

6. FAQ:

1. Why choose TTI FIBER ?
(1)Professional manufacturer: Low MOQ, free samples are available.
(2)Quality assurance:Stable high quality.
(3)Customers solutions:Quick.
(4)Win-Win Price:Save much costs, bring more benefits for customers.

2. Do you accept OEM,ODM?
Yes, we accept them .

3. Can you print our LOGO?
Sure, Your LOGO can be printed on the boxes , or products.

4. What's the method of shipment?
We accept all shipment , such as Delievery,ocean transport, land transport , airport transport.

5. What's the Payment?
We accept all payments , such as LC,TT,DP,DA,Paypal,,Money Gram.
