GYXTW53 Ourdoor Optical Fiber Cable Double Sheat Steel Wire
GYXTW53 fibe optical cable.

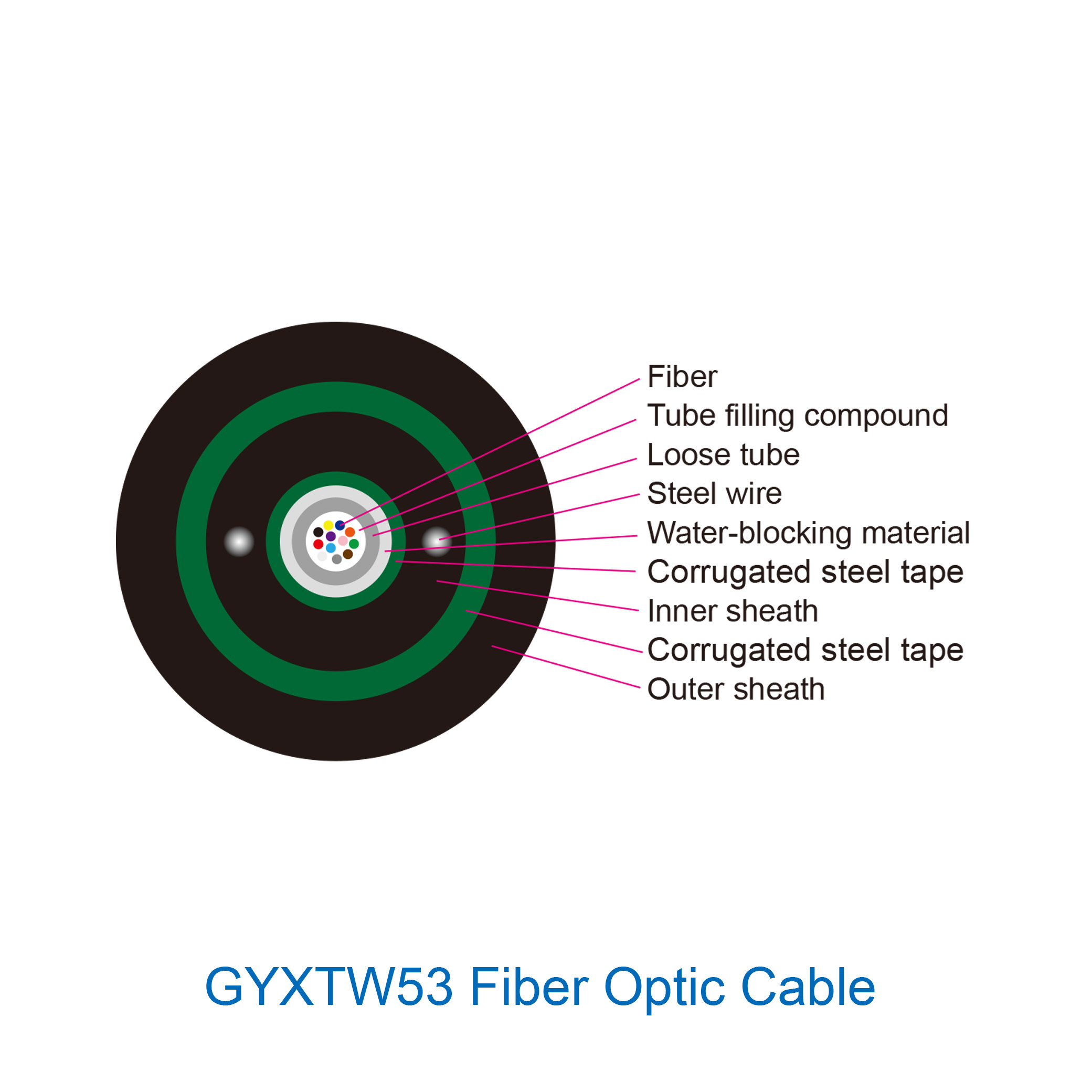

1. Descreption:
The fibers, 250μm, are positioned in a loose tube made of a high
modulus plastic. The tubes are filled with a
water-resistant filling compound. A steel wire, sometimes sheathed
with polyethylene (PE) for cable with high
fiber count, locates in the center of core as a metallic strength
member. Tubes (and fillers) are stranded around
the strength member into a compact and circular cable core. An
Aluminum Polyethylene Laminate (APL) is
applied around the cable core. which is filled with the filling
compound to protect it from water ingress. Then the
cable core is covered with a thin PE inner sheath. After the PSP is
longitudinally applied over the inner sheath,
the cable is completed with a PE outer sheath.
2. Features:
1. Full cross-section water-blocking structure to ensure good water
blocking and moisture resistance.
2. Loose tube is filled with special ointment for key protection of
optical fiber.
3. Double-sided vertically-clad corrugated steel-tape armor
effectively improves the resistance to lateral pressure.
4. More than 30 years of service life
5. Steel-wire parallel member, filler protect tube fiber , and
steel tape amored.
6. Excellent mechanical and environmental performance
7. can be installed conveniently and operated simply.
3. Characteristics:
Good mechanical and temperature performance;
High strength loose tube that is hydrolysis resistant;
Special tube filling compound ensure a critical protection of
fiber;
Crush resistance and flexibility;
The following measures are taken to ensure the cable watertight:
(1)Steel wire used as the central strength member;
(2)Loose tube filling compound;
(3)100% cable core filling;
(4)APL moisture barrie;
(5)PSP enhancing moisture-proof;
(6)Water-blocking material
4. Technical Parameter:
| Cable Code | GYXTW53 |
| Fiber Count | 2 ~24 |
| Cable Diameter | 10 ~ 14(mm) |
| Cable Weight | 160(kg/km) |
| Tensile Strength Long/Short term | 1000/3000(N) |
| Crush Resistance Long/Short term | 500/1500(N/100mm) |
| Bending Radius Static/Dynamic | 10D/20D(mm) |
|
Storage/Operating Temperature:-40℃to+70℃ |
5.Application
--Adopted to Outdoor distribution.
--Suitable for aerial duct and buried method
--Long distance and local area network communication
FAQ:
2.What’s the MOQ?
Us. The MOQ of Fiber Optic cable is 1km.
3.What’s delivery time?
Us. The general delivery time is 5-7 days after order confirmed. It
depends on the order quantity.
4.How to Store the Optical Fiber Cable Properly?
Us. Store the drum indoor before using, the drum should place
sideways not on the end.
5. Can you supply customized products and logo?
Yes. We supply OEM service. You can send us your drawing.
6.What’s your payment terms?
Us. We accept T/T,L/C,,D/P etc. 30% in advance and 70% before
shipment.
