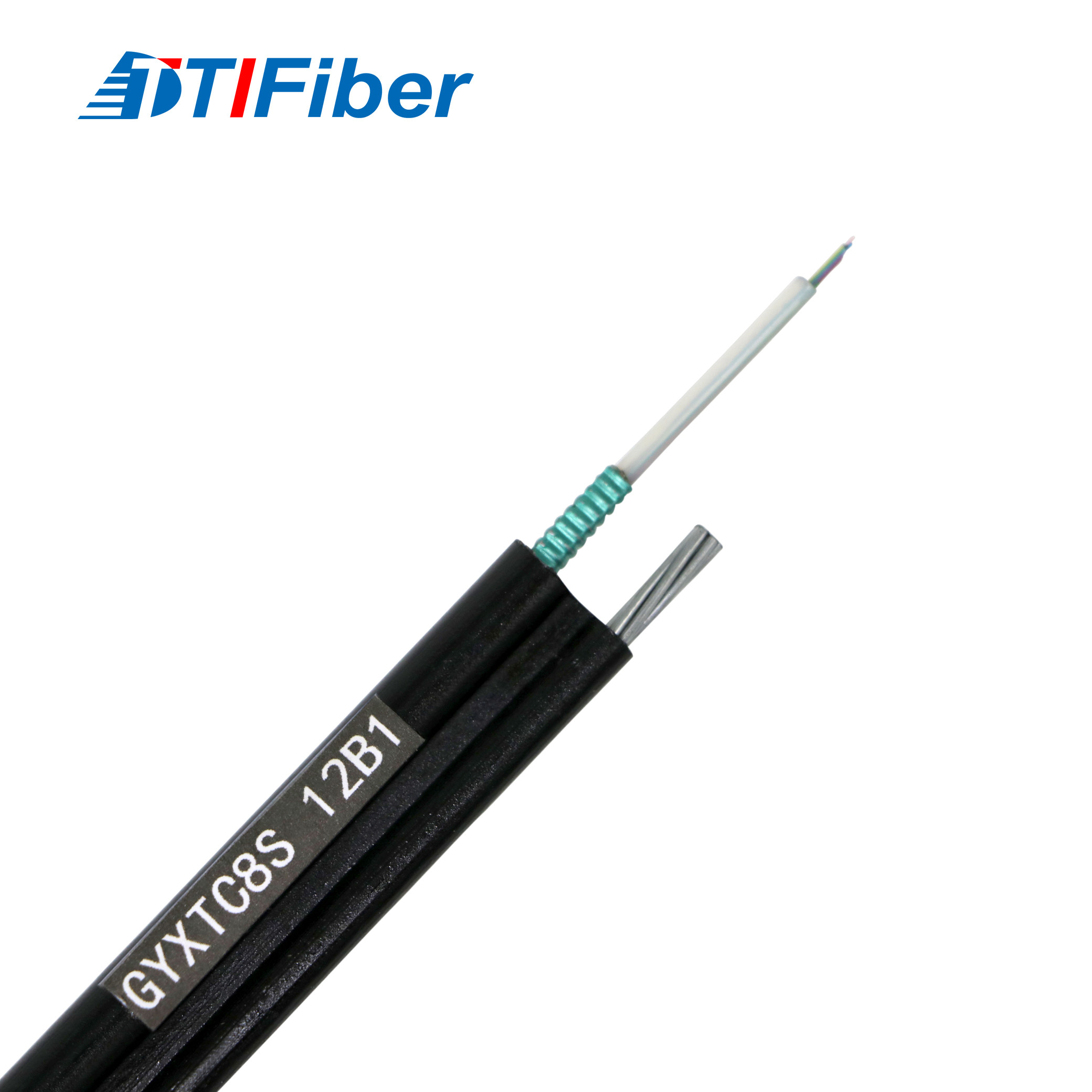

GYXTC8S Outdorr Fiber Optic Cable Self Supporting Overhead Laying
GYXTC8S outdoor optical fiber cable overhead
1. Descreption

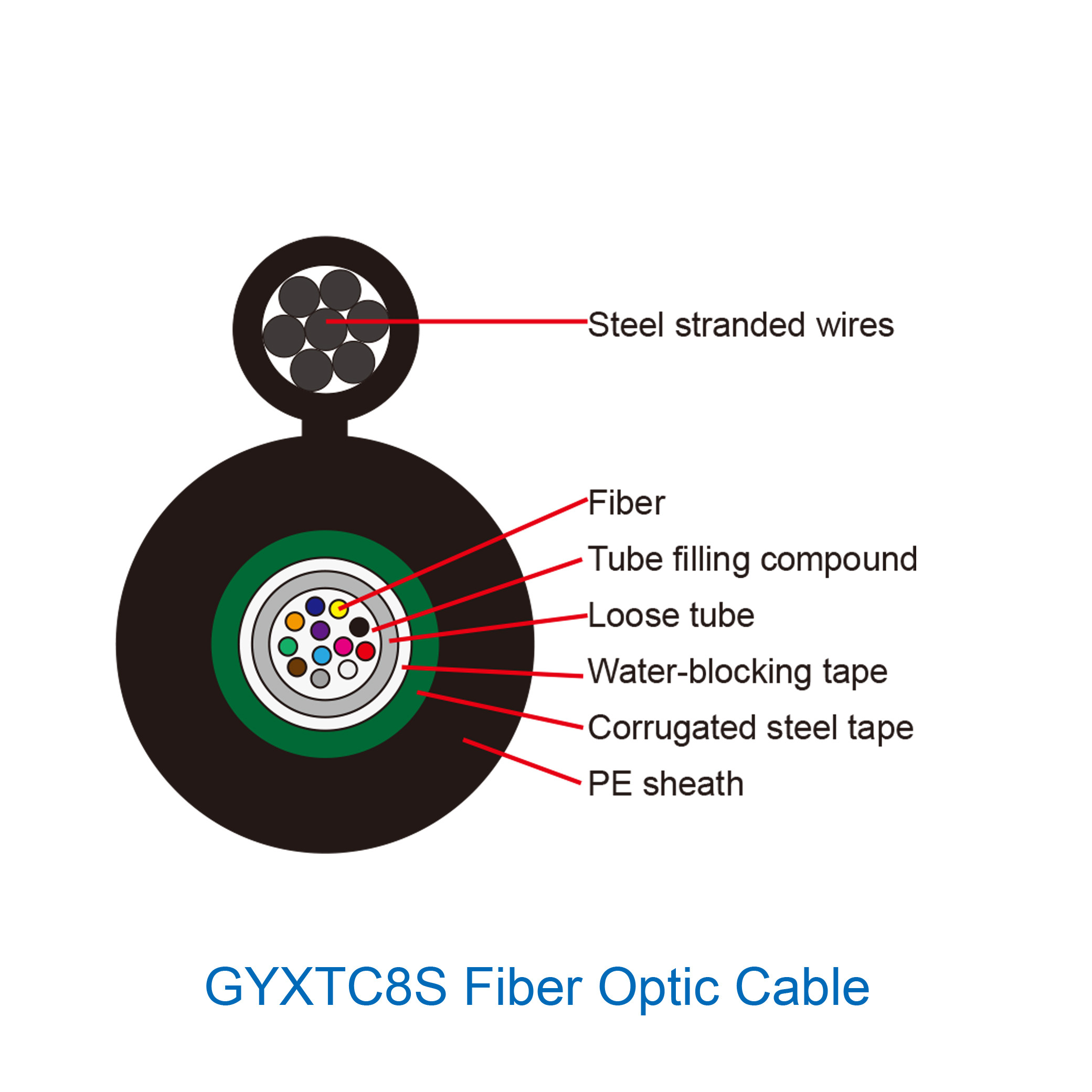

The fibers are positioned in a loose tube made of a high modulus
plastic. The tubes are filled with a water-resistant filling
compound. A steel wire locates in the center of core as a metallic
strength member. Tubes (and fillers) are stranded around the
strength member into a compact and circular cable core. An Aluminum
Polyethylene Laminate (APL or PSP) is applied around the cable
core, which is filled with the filling compound to protect it from
water ingress. After part of cable accompanied with the stranded
wires an the supporting part are completed with a PE sheath to be
figure 8 structure.
2. Features
♦ Excellent mechanical and temperature performance
♦ Special tube filling compound ensure a critical protection of
fiber and resist the water.
♦ Single steel wire as the central strength member to withstand
axial loads.
♦ PE sheath protects cable from ultraviolet radiation.
♦ 100% core filling water prevent cable jelly to ensure the cable
watertight.
♦ APL(or PSP) tape longitudinal cover cable core as moisture
barrier.
♦ High tensile strength of stranded wires meet the requirement of
self-supporting and reduce the installation.
3. Application
♦ Good mechanical and temperature performance.
♦ High strength loose tube that is hydrolysis resistant.
♦ Special tube filling compound ensure a critical protection of
fiber.
♦ Crush resistance and fiexibility.
♦ PSP enhancing moisture-proof.
♦ Two parallel steel wires ensure tensile strength
♦ Small diameter, light weight and friendly installation
♦ Long delivery length
♦ Application:Self-supporting/Aerial
4. Optical Characteristics
| Item | G.652 | G.655 | 50/125um | 62.5/125um |
| Attenuation | @850nm | | | ≤3.0dB/km | ≤3.2dB/km |
| @1300nm | | | ≤1.0dB/km | ≤1.2dB/km |
| @1310nm | ≤0.36dB/km | ≤0.40dB/km | | |
| @1550nm | ≤0.22dB/km | ≤0.23dB/km | | |
Bandwidth
(Class A) | @850nm | | | ≥500MHZ.km | ≥200MHZ.km |
| @1300nm | | | ≥1000MHZ.km | ≥600MHZ.km |
| Numerical aperture | | | 0.200±0.015NA | 0.275±0.015NA |
| Cable cut-off wavelength | ≤1260mm | ≤1450mm | | |
5. Technical Parameters
| Cable Type | Fiber Count | Tubes | Fillers | Cable Diamete
rmm | Cable Weight kg/km | Tensile strength
Long/Short term
(N) | Crush resistance
Long/Short term
(N/100mm) | Bending radius
Static/Dynamic
(mm) |
|
|
| GYTC8S-6 | 6 | 1 | 5 | 9.0*16.0 | 160 | 2500/5000 | 300/1000 | 110/220 |
| GYTC8S-2 | 12 | 2 | 4 | 9.0*16.0 | 160 | 2500/5000 | 300/1000 | 110/220 |
| GYTC8S-24 | 24 | 4 | 2 | 9.0*16.0 | 160 | 2500/5000 | 300/1000 | 110/220 |
| GYTC8S-36 | 36 | 6 | 0 | 9.0*16.0 | 160 | 2500/5000 | 300/1000 | 110/220 |
| GYTC8S-48 | 48 | 4 | 2 | 9.0*16.0 | 160 | 2500/5000 | 300/1000 | 120/240 |
| GYTC8S-60 | 60 | 5 | 1 | 9.0*16.0 | 160 | 2500/5000 | 300/1000 | 120/240 |
| GYTC8S-72 | 72 | 6 | 0 | 9.0*16.0 | 160 | 2500/5000 | 300/1000 | 120/240 |
| GYTC8S-96 | 96 | 8 | 0 | 13.1*20.6 | 210 | 2500/5000 | 300/1000 | 135/270 |
| GYTC8S-144 | 144 | 12 | 0 | 15.8*23.2 | 280 | 2500/5000 | 300/1000 | 160/320 |
| | | | | | | | | | | |
| Environmental characteristics |
| Operating temperature | -40~+70℃ |
| Storage temperature | -40~+70℃ |
| | | | | | | | | | | |
| Standards |
| Comply with standard YD / T 1155, IEC 60794-3 and other standards. |
| | | | | | | | | | | |
