Outdoor Armored Fiber Optic Patch Cord SM MM MTP MPO To LC 12 24 Multicore

SM MM 12 24 multicore Break out MTP MPO to LC Outdoor Armored Fiber Optic Patch Cord

MPO/MTP patch cord,MPO (Multi-fiberPushOn) connector is one of the MT series connectors, MT series ferrule uses two left and
right guide holes and guide pins with diameters of 0.7mm (also called PIN pin) for precise onnection. MPO connectors and fiber
optic cables can be processed to produce various forms of MPO jumpers. MPO jumpers can have 2 to 12-core designs, with a maximum
of 24 cores. The 12-core MPO connector is currently the most used. The compact design of the MPO connector enables a large number
of MPO jumper cores and small size. MPO jumpers are widely used in the connection process that requires high-density integrated
fiber-optic line environments during wiring, FTTX and transceiver modules such as 40 / 100GSFP, SFP +, or inside and outside the
equipment.

1. Specification:

Parameter		Unit	SM Standard	SM Low loss	MM Standard	MM Low loss
Insertion Loss	Typical	dB	0.35	0.2	0.35	0.2
	Max		0.75	0.35	0.65	0.35
Return Loss		dB	APC≥50	/	≥25	≥35
			PC≥40
Repeatability		dB	≤0.1
Interchangeability		dB	≤0.3(Connector Randomly)
Durability		dB	≤0.3(change500matings)	≤0.3(change1000 matings)
Vibration		dB	≤0.3(10~55Hz)
Operating Temperature		℃	-25~+70

Performance Level			Standard		Elite
Connector	Mode	Endface	IL(max) (dB)	RL(min) (dB)	IL(max) (dB)	RL(min) (dB)
MPO/MTP	SM	12F/APC	≤0.70	≥60	≤0.35	≥60
		24F/APC	≤0.75	≥60	≤0.35	≥60
		48F/APC	≤0.75	≥60
	MM	12F/PC	≤0.50	≥20	≤0.35	≥20
		24F/PC	≤0.50	≥20	≤0.35	≥20
		48F/PC	≤0.50	≥20
LC/SC/FC/ST	SM	APC	≤0.30	≥60	≤0.10	≥60
	SM	UPC	≤0.20	≥50	≤0.10	≥50
	MM	PC	≤0.20	≥30	≤0.10	≥30

2. Feature:
1. Low insertion loss
2. High return loss
3. Excellent Repeatability, exchangeability, wearability and stability.

4. Environmentally Stable

3. Application:

1. FTTH, LAN, PON & Optical CATV, Local ring net
2. Optical fiber communication system
3. Optical fiber test equipment
4. Optical fiber sensor

5. Industry and military application

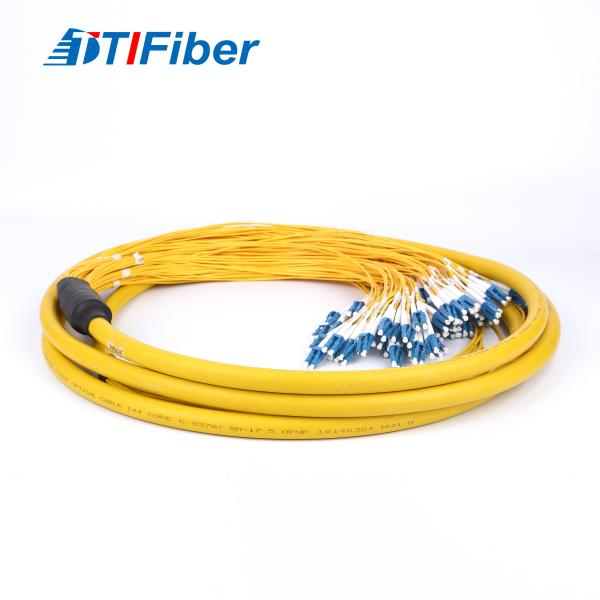

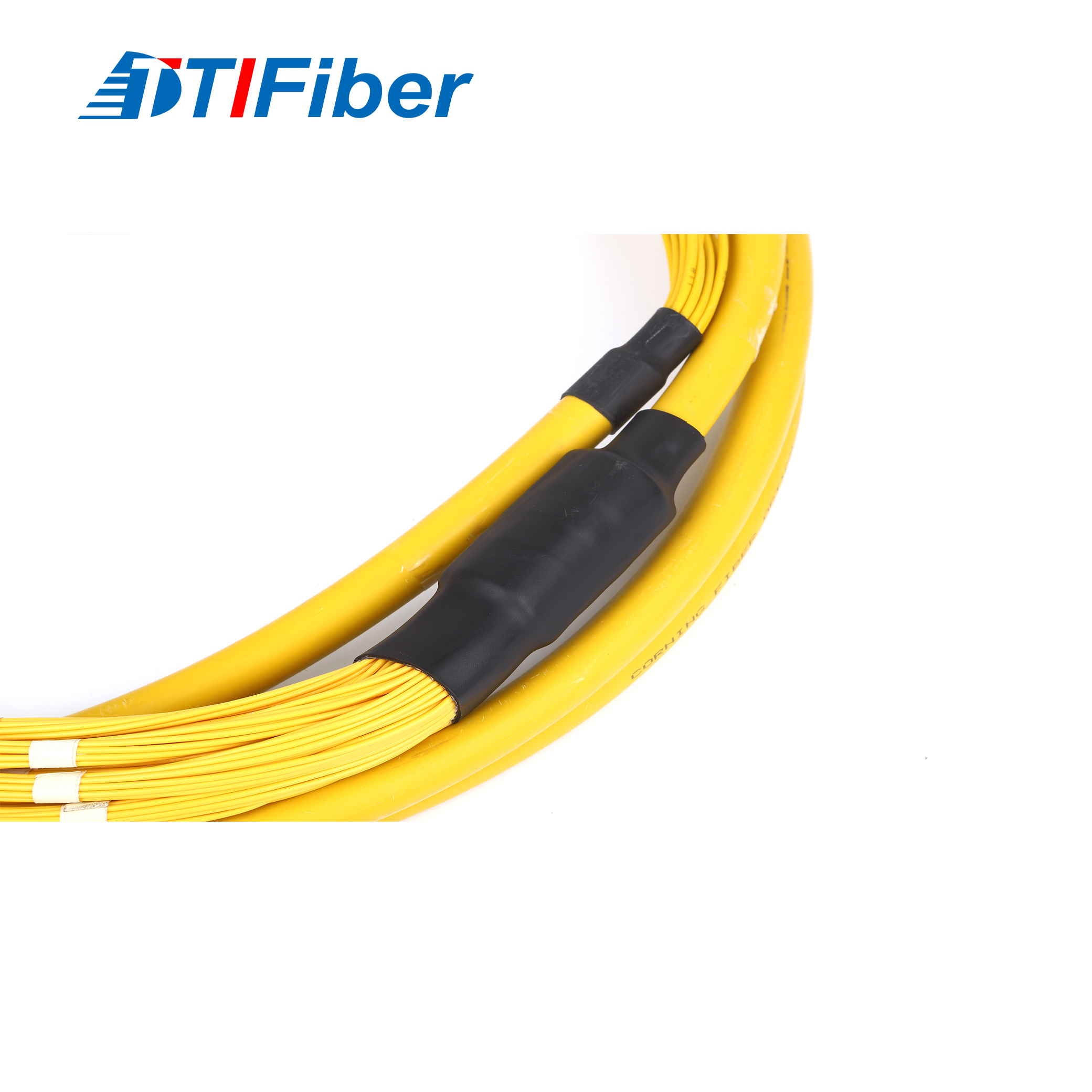

4. Product Picture:

5. FAQ:

1. Why choose TTI FIBER ?

(1)Professional manufacturer: Low MOQ, free samples are available.
(2)Quality assurance:Stable high quality.
(3)Customers solutions:Quick.
(4)Win-Win Price:Save much costs, bring more benefits for customers.

2. Do you accept OEM,ODM?
Yes, we accept them .

3. Can you print our LOGO?
Sure, Your LOGO can be printed on the boxes , or products.

4. What's the method of shipment?
We accept all shipment , such as Delievery,ocean transport, land transport , airport transport.

5. What's the Payment?
We accept all payments , such as LC,TT,DP,DA,Paypal,,Money Gram.
