G652D GYTA Fiber Optic Cable Outdoor Armored Singlemode 12 24 Core

Outdoor Singlemode G652D 12 24 Core GYTA Armored Optical Fiber Cable

1. Specification:

Item	GYTA GYTS 12 24 Core Single Mode Fiber Optic Cable Price Per Meter
Feature	1. Choice of fiber type 2. Color code of fiber 3. High water & crush resistance 4. Choice of sheath material 5. Low attenuation and dispersion 6. Good flexibility and bending performance
Application	Suitable for external application in duct and aerial
Structure Characters	1. Metallic strengthen member (Phosphated steel wire) 2. Steel taoe under PE sheath
Temperature	1. Operating temperature: -20℃ to 70℃ 2. Storage temperature: -20℃ to 70℃

2. Feature:

1. Good mechanical and temperature performance
2. High strength loose tube that is hydrolysis resistant.
3. Special tube filling compound ensure a critical protection of fiber.
4. Crush resistance and flexibility.
5. PSP enhancing moisture-proof
6. Tow parallel steel wires ensure tensile strength
7. Small diameter, light weight and easily installation

Fiber Type		G.652	G655	50/125μm	62.5/125μm
Attenuation(+20℃)	@850nm			≤3.0 db/km	≤3.3 db/km
	@1300nm			≤1.0 db/km	≤1.0 db/km
	@1310nm	≤0.36 db/km	≤0.40 db/km
	@1550nm	≤0.22 db/km	≤0.23 db/km
Bandwidth	@850nm			≥500MHz.km	≥200MHz.km
Bandwidth	@1300nm			≥500MHz.km	≥500MHz.km
Numerical Aperture				0.200±0.015NA	0.275±0.015NA
Cable Cut-off Wavelength		≤1260 nm	≤1450 nm

Cable Type (increased by 2fibers)	Fiber Count	Tubes+Fillers	Cable Diameter mm	Cable Weight kg/km	Tensile Strength Long/Short Term N	Crush Resistance Long/Short Term N/100mm	Bending Radius Static/Dynamic mm
GYTS 2 ~ 30	2 ~30	5	9.5	80	600/1500	300/1000	10D/20D
GYTS 32 ~36	32 ~36	6	9.7	97	600/1500	300/1000	10D/20D
GYTS 38 ~60	38 ~60	6	10.5	109	600/1500	300/1000	10D/20D
GYTS 62 ~72	62 ~72	6	11.5	126	600/1500	300/1000	10D/20D
GYTS 74 ~96	74 ~96	8	13.2	153	600/1500	300/1000	10D/20D
GYTS 98 ~120	98 ~120	10	14.6	182	600/2000	300/1000	10D/20D
GYTS 122 ~ 144	122 ~ 144	12	16.5	221	600/2500	300/1000	10D/20D
GYTS 146 ~ 216	146 ~ 216	18	16.5	221	600/2500	300/1000	10D/20D

3. Application:

1. Long-distance communication.
2. It's suitable for duct, especially for the places with high requirement for moisture-proof.
3. Installation: Duct, direct-buried or non-self-supporting aeri

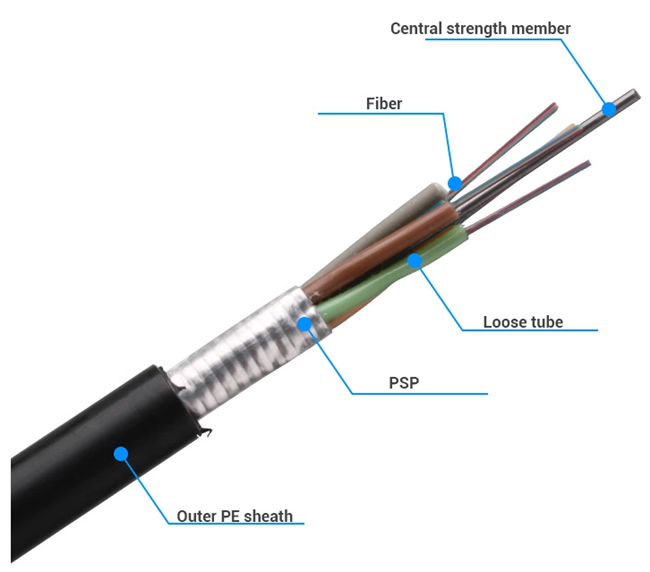

4. Product Picture:

G652D GYTA Fiber Optic Cable Outdoor Armored Singlemode 12 24 Core

FAQ:

1. Why choose TTI FIBER ?
(1)Professional manufacturer: Low MOQ, free samples are available.
(2)Quality assurance:Stable high quality.
(3)Customers solutions:Quick.
(4)Win-Win Price:Save much costs, bring more benefits for customers.

2. Do you accept OEM,ODM?
Yes, we accept them .

3. Can you print our LOGO?
Sure, Your LOGO can be printed on the boxes , or products.

4. What's the method of shipment?
We accept all shipment , such as Delievery,ocean transport, land transport , airport transport.

5. What's the Payment?
We accept all payments , such as LC,TT,DP,DA,Paypal.
