Outdoor Single Mode GYXTW53 G652D Armoured Fiber Cable

Ask Lasest Price
Brand Name :	TTI OR OEM
Model Number :	GYXTW53 Fiber Optical Cable
Certification :	ISO9001 / ISO14001 / ROHS
Price :	0.13
Payment Terms :	L/C, D/A, D/P, T/T, ,
Supply Ability :	50000km/momth
Delivery Time :	Negociated

Add to Cart

Product Details
Company Profile

Outdoor Single Mode GYXTW53 G652D Armoured Fiber Cable

Outdoor Fiber Optic Cable GYXTW53 Singlemode G652D Armoured Optical Cable

1. Specification:

Item	GYXTW53 Fiber Optical Cable
Place of Origin	Guangdong
Brand Name	TTI
Number of Conductors	≥ 10
Jacket	LSZH
Application	Duct/Aerial
Fiber count	2-12 Cores
Packing	2 Km/wooden Drum
Fiber Type	SM Single Mode
Color	Black

2. Characteristic:

1. The fibers, 250μm, are positioned in a loose tube made of a high modulus plastic.

2. The tubes are filled with a water-resistant filling compound.

3. The tube is wrapped with a layer of corrugated steel tape longitudinally. Between the corrugated

4. steel tape and the loose tube water-blocking material is applied to keep the cable compact and watertight. Two parallel steel wires are placed at the two sides of the steel tape.

5. The cable is completed with PE sheath.

3. Feature:

The fibers, 125μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. The tube is wrapped with a layer of PSP longitudinally. Between the PSP and the loose tube water-blocking material is applied to keep the cable compact and watertight. Two parallel steel wires are placed at the two sides of the steel tape. The cable is completed with a polyethylene (PE) sheath.

	G652D	G655	50/125μm	62.5/125μm
Attenuation(+20deg C)	@850nm			≤ 3.0dB/KM	≤ 3.0 dB/KM
	@1300nm			≤ 1.0dB/KM	≤ 1.0 dB/KM
	@1310nm	≤ 0.36 dB/KM	--
	@1550nm	≤ 0.22 dB/KM	≤0.23dB/km
Bandwidth(Class A)	@850nm			≥ 500 MHz-KM	≥200 MHz-KM
Bandwidth(Class A)	@1300nm			≥1000 MHz-KM	≥600 MHz-KM
Numerical Aperture				0.200±0.015NA	0.275±0.015NA
Cable Cut-off Wavelength λcc		≤1260nm

4. Application:

Frequent lightning area and anti electric field : The subway, tunnel
Long-distance communication: Local trunk network & User network
Duct and direct buried application
Harsh environment

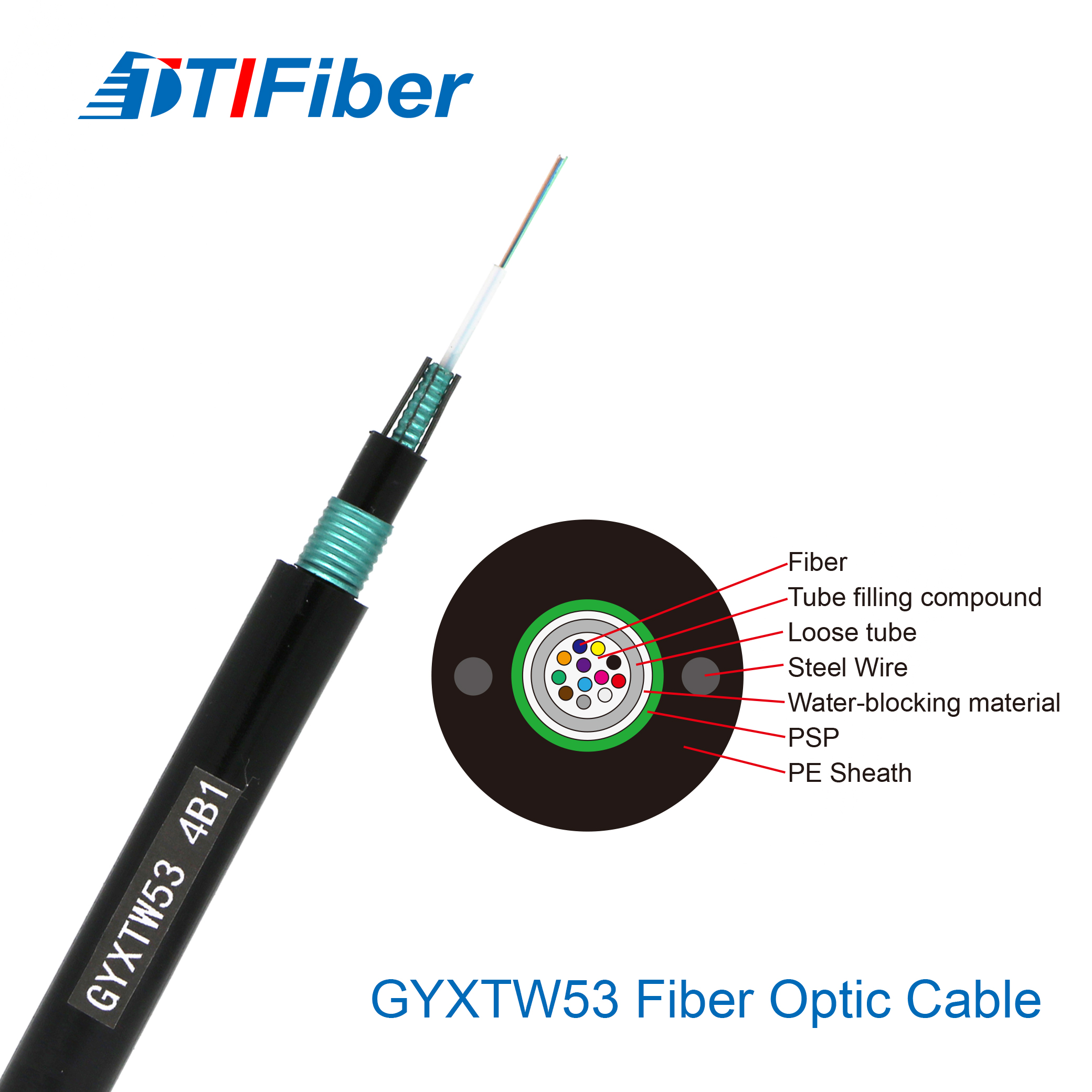

5. Product Picture:

6. FAQ:

1. Why choose TTI FIBER ?
(1) Professional manufacturer: Low MOQ, free samples are available.
(2) Quality assurance:Stable high quality.
(3) Customers solutions:Quick.
(4) Win-Win Price:Save much costs, bring more benefits for customers.

2. Do you accept OEM,ODM?
Yes, we accept them .

3. Can you print our LOGO?
Sure, Your LOGO can be printed on the boxes , or products.

4. What's the method of shipment?
We accept all shipment , such as Delievery,ocean transport, land transport , airport transport.

5. What's the Payment?
We accept all payments , such as LC,TT,DP,DA,Paypal,,Money Gram.
