Singlemode G652D MGYXTWV Fiber Optic Cable Steel Wire Outdoor Cable
1. Specification:
MGYXTWV Outdoor Fiber Optical Cable |
Brand | TTI |
The cable´s outer diameter(mm) | 9.8~10.8 |
The cable´s weight(kg/km) | 70~94 |
Permissible tensile force(N) | Tempotensile force≤1500 |
Permtensile force≤600 |
Permissible crush force(N/100mm) | Tempoflatting force≤1000 |
Permflatting force≤300 |
Min.bending radius(mm) | Dynamic bending: Optic cable OD of 20 times |
Static bending: Optic cable OD of 10 times |
Operating temperature | -40~+60℃ |
Layout mode | Pipeline,overhead and embedment |
2. Characteristic:
1. MGYXTWV is an outdoor use optical fiber cable suitable for duct and aerial
applications.
2. We supply MGYXTWV fiber optic cable from 2 fiber cores to 24 fiber cores.
3. Both single mode type and multimode types are available.
4. Fiber optic cable MGYXTWV jelly filled and fiber contained central loose tube, copolymer
coated steel tape, two parallel steel wires 1.2mm, PE outer sheath, G652D SM fiber,
detailed specification on your request.
3. Feature:

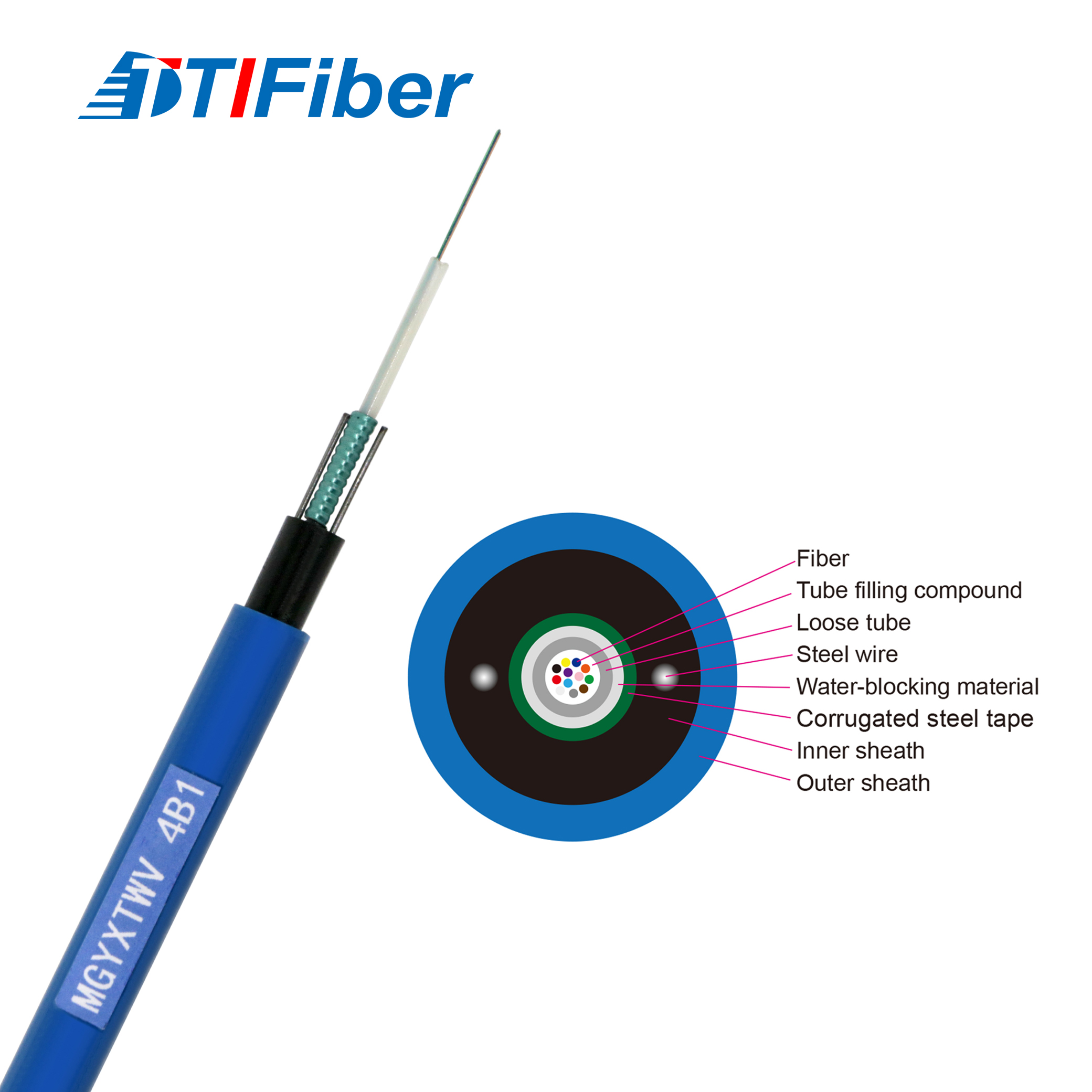

The fibers, 125μm, are positioned in a loose tube made of a high
modulus plastic. The tubes are filled with a water-resistant
filling compound. The tube is wrapped with a layer of PSP
longitudinally. Between the PSP and the loose tube water-blocking
material is applied to keep the cable compact and watertight. Two
parallel steel wires are placed at the two sides of the steel tape.
The cable is completed with a polyethylene (PE) sheath.
| Performance | Long-term | Short-term |
| Max.Tension(N) | 3500 | 7000 |
| Max.Crushing | 300 | 1000 |
| Resistance(N/100mm2) | 30D(Dynamic) | 15D(static) |
| Storage and operating temperature | -40℃ to +70℃ |
4. Application:
- Frequent lightning area and anti electric field : The subway,
tunnel
- Long-distance communication: Local trunk network & User network
- Duct and direct buried application
- Harsh environment
5. Product Picture:
6. FAQ:
1. Why choose TTI FIBER ?
(1) Professional manufacturer: Low MOQ, free samples are available.
(2) Quality assurance:Stable high quality.
(3) Customers solutions:Quick.
(4) Win-Win Price:Save much costs, bring more benefits for
customers.
2. Do you accept OEM,ODM?
Yes, we accept them .
3. Can you print our LOGO?
Sure, Your LOGO can be printed on the boxes , or products.
4. What's the method of shipment?
We accept all shipment , such as Delievery,ocean transport, land
transport , airport transport.
5. What's the Payment?
We accept all payments , such as LC,TT,DP,DA,Paypal.
