Fiber Optic Oto Box FTTH Fiber Optic White Patchcord With OTO
Terminal Box
FTTH Fiber Optic White patchcord With OTO Terminal Box
fiber optic patchcord, is a length of fiber cable fitted with LC,
SC, FC,MTRJ or ST fiber connectors at each end.Fiber patchcord also
come in hybrid varieties with one type of connector on one end and
another type of connector on the other like this one. Jumpers are
used to connect end devices or network hardware to the structured
cabling system.
1. Specification:
Fiber Type | SM | MM |
Normal Fiber OD | 125±0.2um | | 125±0.2um |
Connector Type | SC,FC,ST, E-2000, LC, MU, DIN | MTRJ | SC,FC,ST, E-2000, LC, MU | MTRJ |
Insertion loss(Typical) | 0.2dB | 0.4dB | 0.2dB | 0.4dB |
Insertion loss(Max) | 0.3dB | 0.5dB | 0.3dB | 0.5dB |
| PC | 50dB | 35 | | |
UPC | 55dB | | | |
APC | 65dB | | | |
Mating Durability(500 C) | 0.2dB |
0.Temperature Stability | 0.3dB |
Operation Temperature | -40°C~+85°C |
Storage Temperature | -40°C~+85°C |
2. Feature:
1. All kinds of optical fiber patch cord, optical cable, fiber
patch cord, SM & MM available.
2. Standard & custom configurations.
3. Meets Telecordia-GR-326-CORE specifications.
4. Low insertion loss.
5. Ultra low back reflection.
6. For 3.0mm, 2.4mm, 2.0mm jacket or 900μ M buffer.
3. Application:
1. FTTH, LAN, PON & Optical CATV, Local ring net
2. Optical fiber communication system
3. Optical fiber test equipment
4. Optical fiber sensor
5. Industry and military application

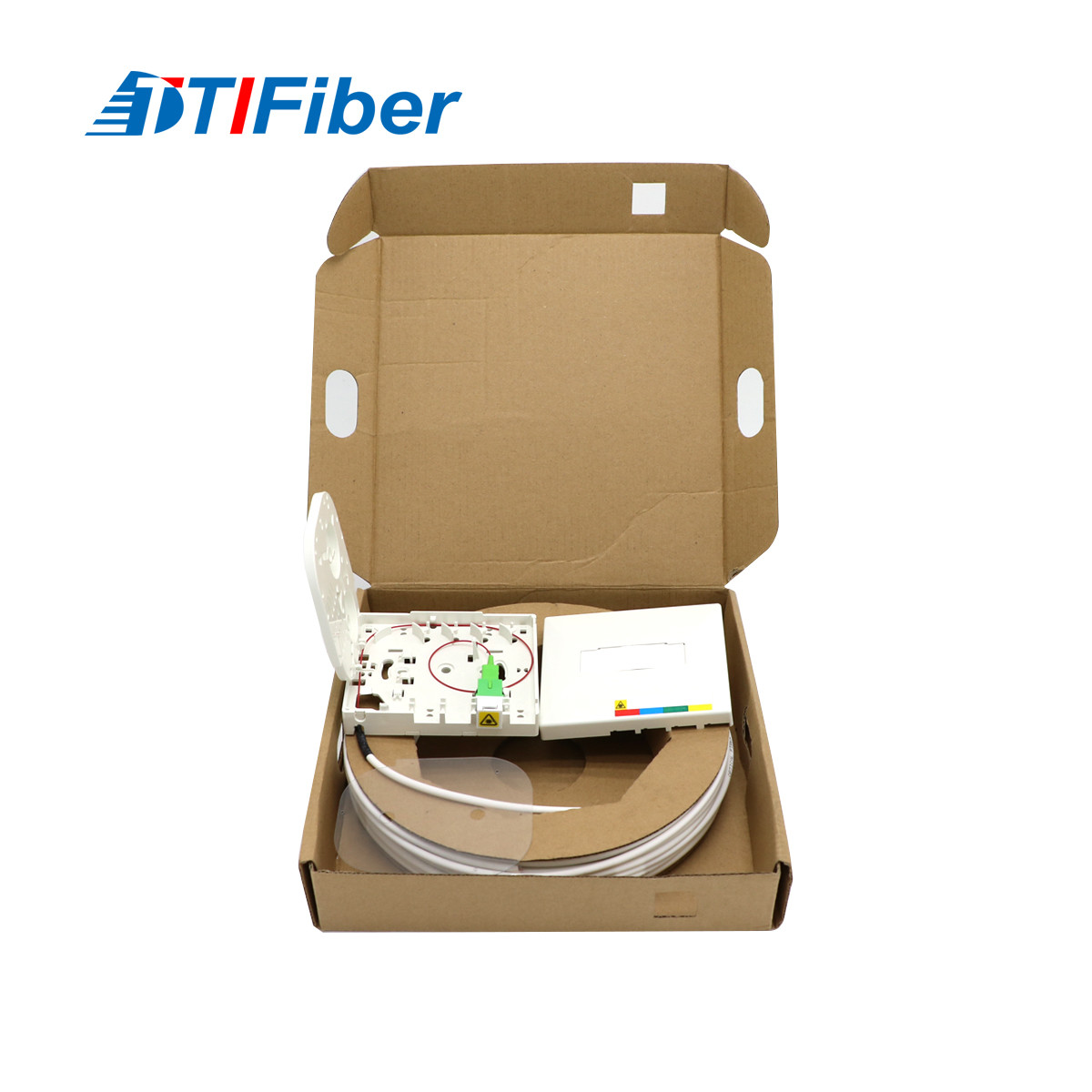

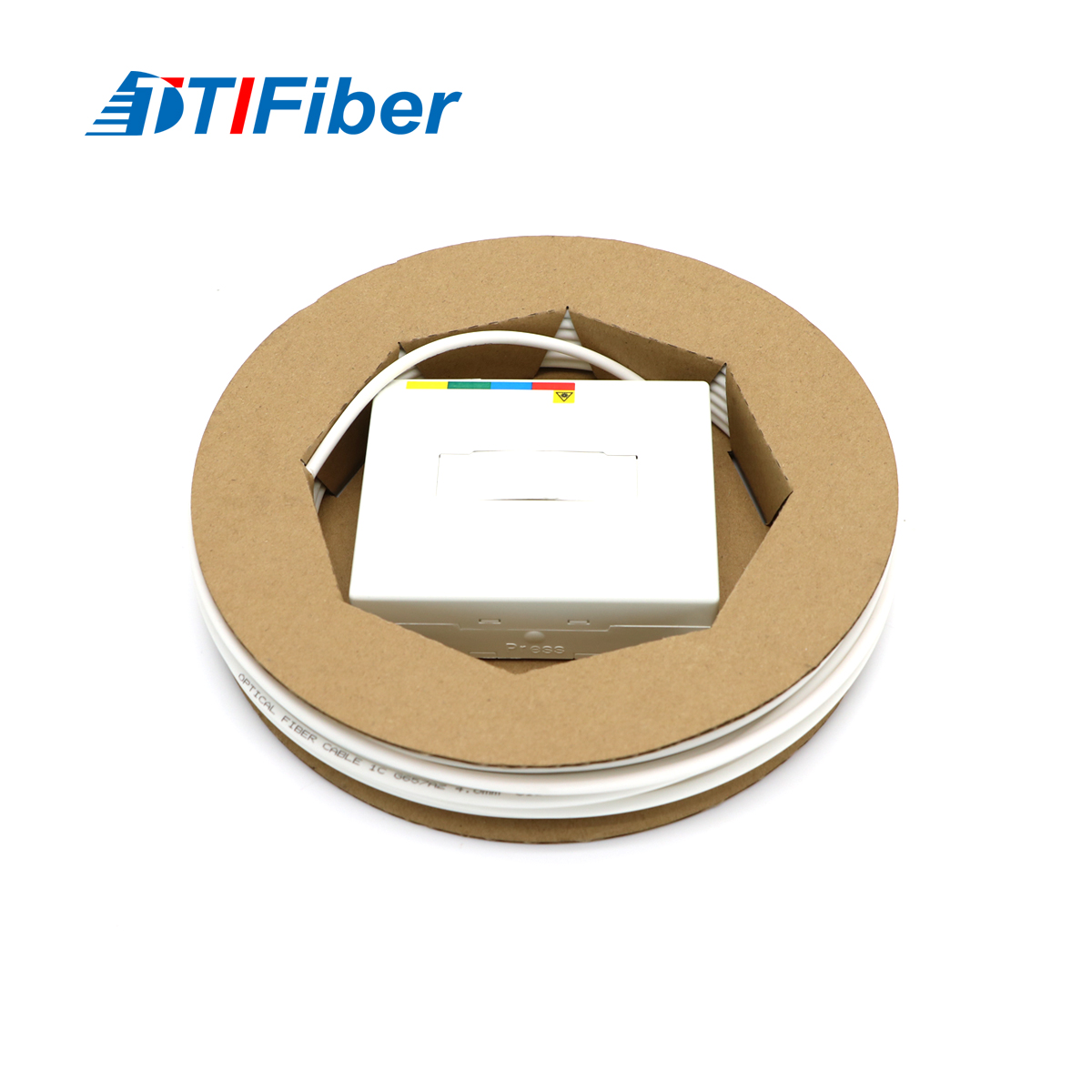

4. Product Picture:
5. FAQ:
1. Why choose TTI FIBER ?
(1) Professional manufacturer: Low MOQ, free samples are available.
(2) Quality assurance:Stable high quality.
(3) Customers solutions:Quick.
(4) Win-Win Price:Save much costs, bring more benefits for
customers.
2. Do you accept OEM,ODM?
Yes, we accept them .
3. Can you print our LOGO?
Sure, Your LOGO can be printed on the boxes , or products.
4. What's the method of shipment?
We accept all shipment , such as Delievery,ocean transport, land
transport , airport transport.
5. What's the Payment?
We accept all payments , such as LC,TT,DP,DA,Paypal.
