Indoor Outdoor 2 - 24 Core Nonmetallic SM Fiber Optic Cable Anti Rodent

Indoor Outdoor 2-24 Core Non-metallic Singlemode Ratproof Anti Rodent Fiber Optic Cable

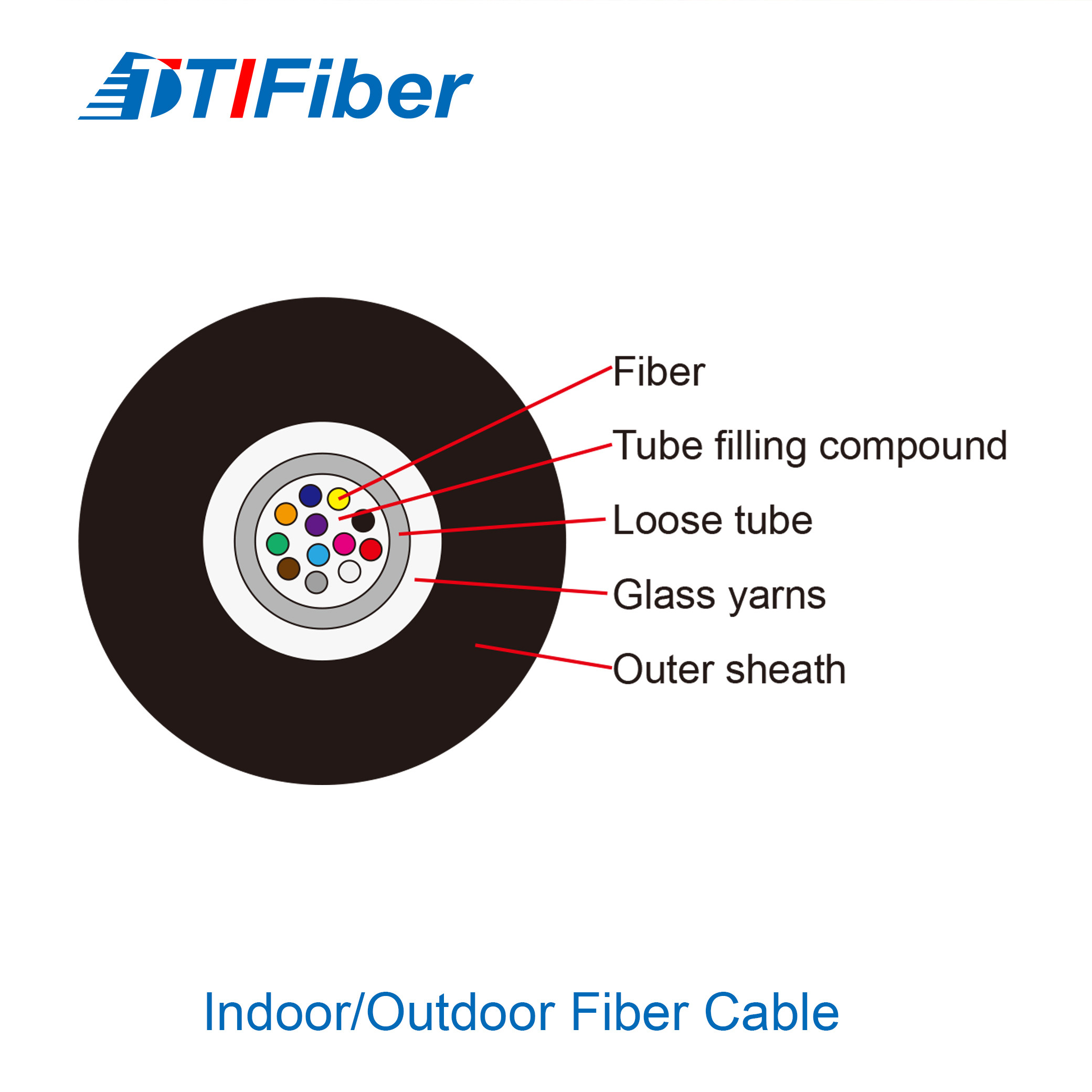

The fibers, 125μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. The tube is wrapped with a layer of PSP longitudinally. Between the PSP and the loose tube water-blocking material is applied to keep the cable compact and watertight. Two parallel steel wires are placed at the two sides of the steel tape. The cable is completed with a polyethylene (PE) sheath.

Indoor Outdoor 2 - 24 Core Nonmetallic SM Fiber Optic Cable Anti Rodent

Specification:

	G652D	G655	50/125μm	62.5/125μm
Attenuation(+20deg C)	@850nm			≤ 3.0dB/KM	≤ 3.0 dB/KM
	@1300nm			≤ 1.0dB/KM	≤ 1.0 dB/KM
	@1310nm	≤ 0.36 dB/KM	--
	@1550nm	≤ 0.22 dB/KM	≤0.23dB/km
Bandwidth(Class A)	@850nm			≥ 500 MHz-KM	≥200 MHz-KM
Bandwidth(Class A)	@1300nm			≥1000 MHz-KM	≥600 MHz-KM
Numerical Aperture				0.200±0.015NA	0.275±0.015NA
Cable Cut-off Wavelength λcc		≤1260nm

Characteristic:

1. Good mechanical and temperature performance

2. High strength loose tube that is hydrolysis resistant

3. Special tube filling compound ensure a critical protection of fiber

4. Two parallel FRPs ensure tensile strength

5. PE sheath protects cable from ultraviolet radiation

6. Small diameter, light weight and friendly installation

7. Long delivery length

Application:

Frequent lightning area and anti electric field : The subway, tunnel
Long-distance communication: Local trunk network & User network
Duct and direct buried application
Harsh environment

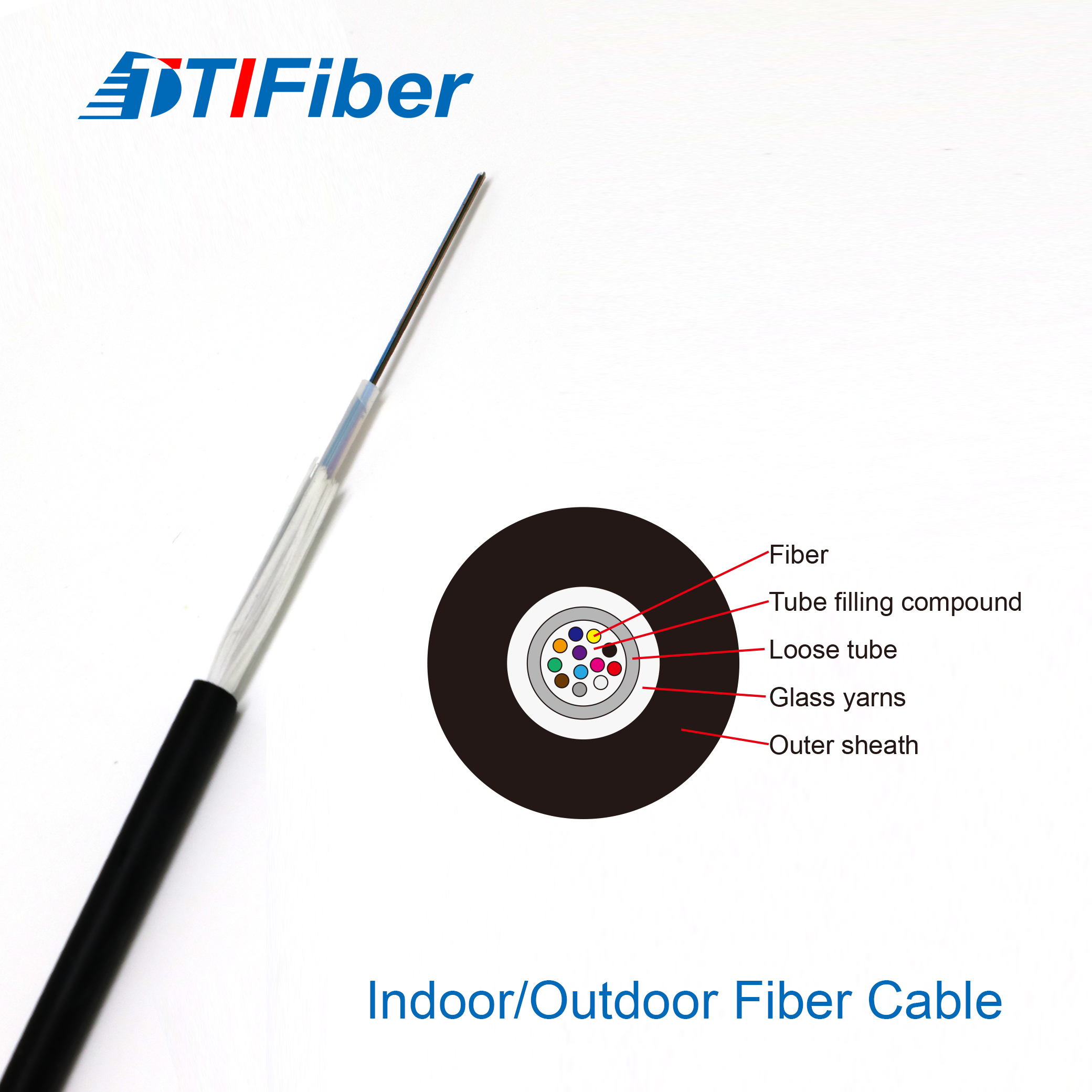

Product Picture:

Indoor Outdoor 2 - 24 Core Nonmetallic SM Fiber Optic Cable Anti Rodent
