SC/APC - SC/APC 1.5m 3.5m SM Simplex G657A2 1.6mm Aqua LSZH Fiber
Optic Patchcord
Fiber Optic Patch Cable is also known as fiber optic jumper or fiber optic patch cord. It
is composed of a fiber optic cable terminated with different
connectors on the ends. Fiber optic patch cables are used in two
major application areas: computer work station to outlet and patch
panels or optical cross connect distribution center. TTI fiber provides various types of fiber optic patch cables including
single-mode, multimode, multi-core, armored patch cables, as well
as fiber optic pigtails and other special patch cables. For most of
the patch cables, the SC, ST, FC, LC, MU, MTRJ connectors (APC/UPC
polish) are all available. In addition, we also have MTP/MPO cables in stock.
1. Specification:
Type | Standard,Master |
Style | LC,SC,ST,FC.MU,DIN,D4,MPO, SC/APC,FC/APC,LC/APC.MU/APC |
Fiber | Singlemode/Multimode
50/125, 62.5/125 (Multimode) OM2&OM1
50/125, 10G (Multimode) OM3 |
Cable | Simplex, Duplex
Φ3.0mm, Φ2.0mm, Φ0.9mm
PVC or LSZH |
Polishing Manner | UPC,SPC,APC (8°& 6°) |
Insertion Loss | ≤ 0.1dB (For Singlemode Master)
≤ 0.25dB (For Singlemode Standard)
≤ 0.25dB (For Multimode)
Tested by JDS RM 3750 |
Return Loss
(Singlemode) | UPC ≥ 50dB
SPC ≥ 55dB
APC ≥ 60dB (typ.65dB)
Tested by JDS RM3750 |
Repeatability | ±0.1dB |
Operating temperature | -400C to 850C |
Geometry Requirement
( Singlemode) | Ferrule Endface Radius
7mm ≤ R ≤ 12mm (For APC)
10mm ≤ R ≤ 25mm (For Standard)
Apex Offset ≤ 30 μm (For Master)
Apex Offset ≤ 50 μm (For Standard)
Undercut -50nm ≤ U ≤ 50nm
Tested by DORC ZX-1 |
2. Feature:
1. Low insertion loss
2. High return loss
3. Excellent Repeatability, exchangeability, wearability and
stability.
4. Environmentally Stable
3. Application:
1. FTTH, LAN, PON & Optical CATV, Local ring net
2. Optical fiber communication system
3. Optical fiber test equipment
4. Optical fiber sensor
5. Industry and military application

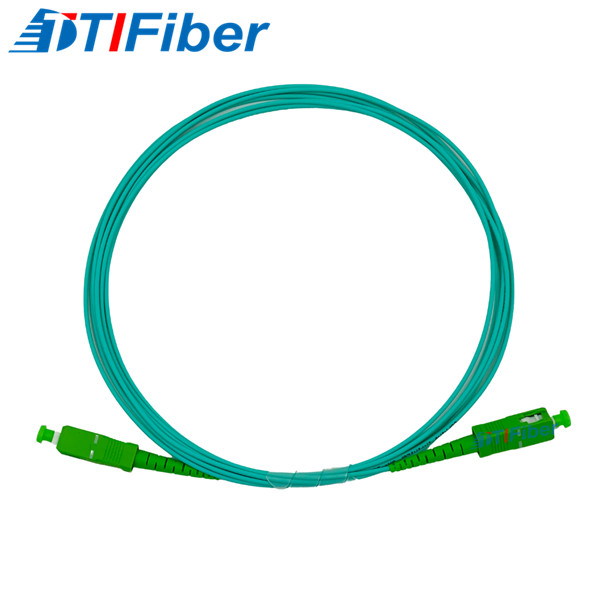

4. Product Picture:
5. FAQ:
1. Why choose TTI FIBER ?
(1) Professional manufacturer: Low MOQ, free samples are available.
(2) Quality assurance:Stable high quality.
(3) Customers solutions:Quick.
(4) Win-Win Price:Save much costs, bring more benefits for
customers.
2. Do you accept OEM,ODM?
Yes, we accept them .
3. Can you print our LOGO?
Sure, Your LOGO can be printed on the boxes , or products.
4. What's the method of shipment?
We accept all shipment , such as Delievery,ocean transport, land
transport , airport transport.
5. What's the Payment?
We accept all payments , such as LC,TT,DP,DA,Paypal,,Money Gram.
