1M 2M 3M SC/APC-SC/APC 9/125 SM SX 3.0mm G657A White Fiber Optic
Patchcord
Fiber Optic Patch Cable is also known as fiber optic jumper or fiber optic patch cord. It
is composed of a fiber optic cable terminated with different
connectors on the ends. Fiber optic patch cables are used in two
major application areas: computer work station to outlet and patch
panels or optical cross connect distribution center. TTI fiber provides various types of fiber optic patch cables including
single-mode, multimode, multi-core, armored patch cables, as well
as fiber optic pigtails and other special patch cables. For most of
the patch cables, the SC, ST, FC, LC, MU, MTRJ connectors (APC/UPC
polish) are all available. In addition, we also have MTP/MPO cables in stock.
1. Specification:
Mode | Singlemode |
Connection Style | Simplex |
Connectors | SC APC to SC APC |
Fiber | 9/125um |
Polish Type | APC |
Typical Insertion Loss | ≤ 0.20 dB |
Maximum Insertion Loss | ≤ 0.30 dB |
iber Numbers | Fiber | 1 |
Colo Fiber | Color | Blue 2,5 B 5/6 |
class | Fiber | A/B (BLI A/B) G657A2 |
Operating Temperature | ºC | -20 a +65 |
Installation temperature | ºC | 0 a +40 |
Storage Temperature | ºC | -20 a +65 |
Eccentricity of the optical element | % | ≤10 |
Outer Diameter of Optical Element | mm | 0,90 ±0,15 |
Nominal cord diameter | mm | 2,9 ±1 |
External coating | - | Thermoplastic flame retardant material |
Exterior coating color | Color | White with minimum brightness 8,5 maximum 9,4 -
Minimal saturation - Minimal light 10B maximum 5PB |
Insertion loss | dB | Typical ≤0.15dB Maximum ≤0.3dB |
Return loss | dB | 50~ 60dB |
2. Feature:
1. Low insertion loss
2. High return loss
3. Excellent Repeatability, exchangeability, wearability and
stability.
4. Environmentally Stable
3. Application:
1. FTTH, LAN, PON & Optical CATV, Local ring net
2. Optical fiber communication system
3. Optical fiber test equipment
4. Optical fiber sensor
5. Industry and military application

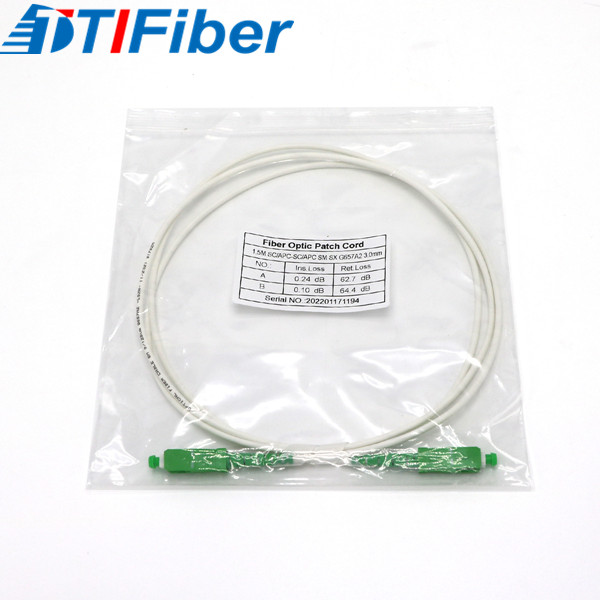

4. Product Picture:
5. FAQ:
1. Why choose TTI FIBER ?
(1) Professional manufacturer: Low MOQ, free samples are available.
(2) Quality assurance:Stable high quality.
(3) Customers solutions:Quick.
(4) Win-Win Price:Save much costs, bring more benefits for
customers.
2. Do you accept OEM,ODM?
Yes, we accept them .
3. Can you print our LOGO?
Sure, Your LOGO can be printed on the boxes , or products.
4. What's the method of shipment?
We accept all shipment , such as Delievery,ocean transport, land
transport , airport transport.
5. What's the Payment?
We accept all payments , such as LC,TT,DP,DA,Paypal,,Money Gram.
