FTTH Yellow jacket 0.9mm 9/125 Singlemode simplex SC APC fiber
optic pigtail
Patch cord pigtail, is in the end of a fiber optic cable plus fiber connector, the
other end of the original state, to achieve optical network
equipment and equipment, equipment and cable between the active
connection, simple, convenient and fast. It is one of the essential
passive products for optical network construction.
TTI can provide all kinds of patch cord pigtail products; the
transmission mode, optical cable type and connector type can be
arbitrarily matched. It has the advantages of stable transmission,
high reliability and customization; it is widely used in optical
network scenarios such as central office, FTTX and LAN etc.
1. Specification:
Item | SM(Single Mode) | MM(Multimode) |
Fiber Cable Type | G652D/G655/G657A1/G657A2 | OM1 | OM2/OM3/OM4 |
Fiber Diameter (um) | 9/125 | 62.5/125 | 50/125 |
Cable OD (mm) | 0.9/1.6/1.8/2.0/2.4/3.0 |
Endface Type | PC | UPC | APC | UPC | UPC |
Typical Insertion Loss (dB) | <0.2 | <0.15 | <0.2 | <0.1 | <0.1 |
Return Loss (dB) | >45 | >50 | >60 | / |
Insert-pull Test (dB) | <0.2 | <0.3 | <0.15 |
Interchangeability (dB) | <0.1 | <0.15 | <0.1 |
Anti-tensile Force (N) | >70 |
Temperature Range (℃) | -40~+80 |
2. Feature:
1. Low insertion loss
2. High return loss
3. Excellent Repeatability, exchangeability, wearability and
stability.
4. Environmentally Stable
3. Application:
1. FTTH, LAN, PON & Optical CATV, Local ring net
2. Optical fiber communication system
3. Optical fiber test equipment
4. Optical fiber sensor
5. Industry and military application

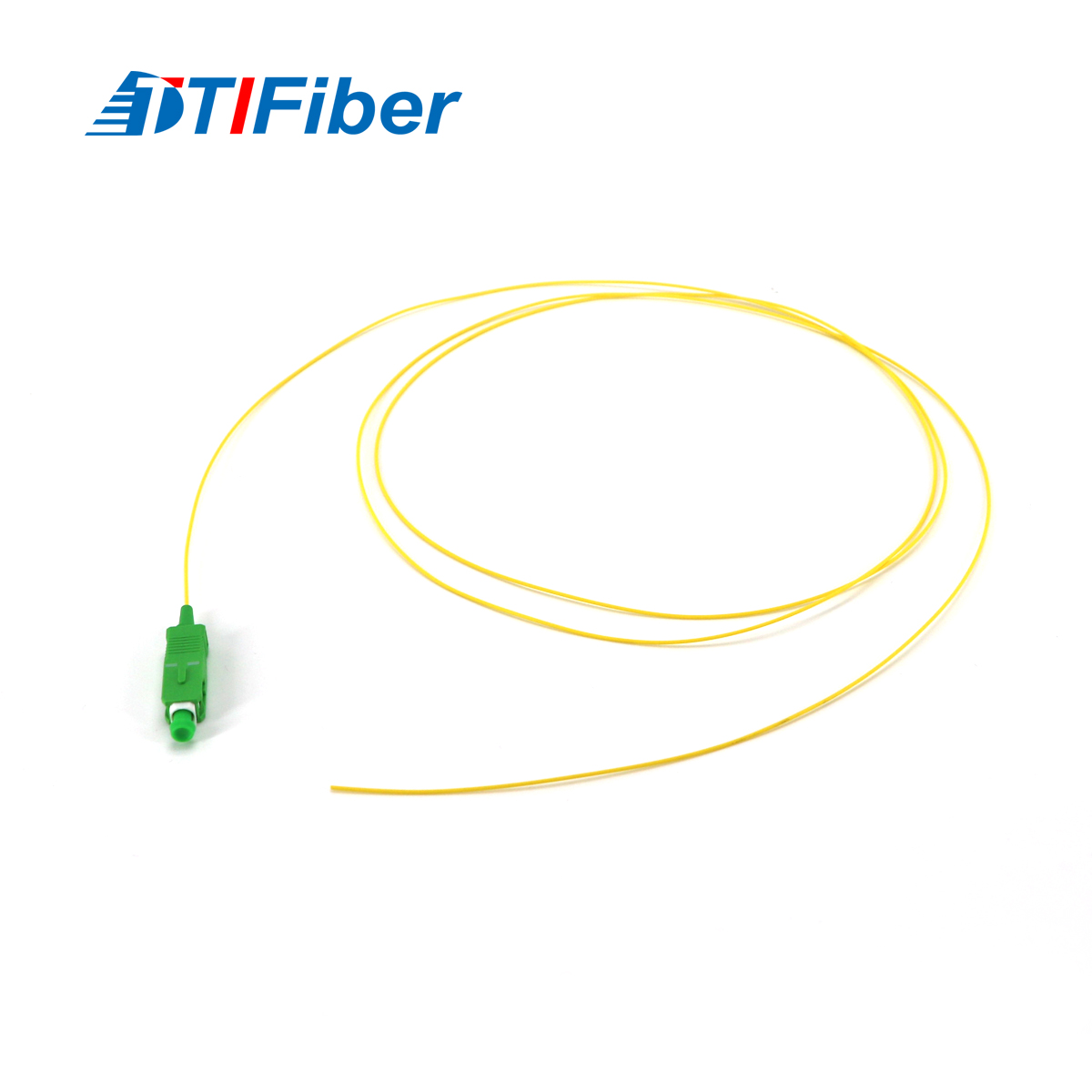

4. Product Picture:
5. FAQ:
1. Why choose TTI FIBER ?
(1) Professional manufacturer: Low MOQ, free samples are available.
(2) Quality assurance:Stable high quality.
(3) Customers solutions:Quick.
(4) Win-Win Price:Save much costs, bring more benefits for
customers.
2. Do you accept OEM,ODM?
Yes, we accept them .
3. Can you print our LOGO?
Sure, Your LOGO can be printed on the boxes , or products.
4. What's the method of shipment?
We accept all shipment , such as Delievery,ocean transport, land
transport , airport transport.
5. What's the Payment?
We accept all online payments.
