FTTH Indoor And Outdoor GJYXFH G652D/G657A1/2 Loose Tube Aerial
Optical Fiber Cable
1. Specification:
The fibers,200/ 250μm, are positioned in a loose tube made of a
high modulus plastic. The tubes are filled with a water-resistant
filling compound. A steel wire, sometimes sheathed with
polyethylene (PE) for cable with high fiber count, locates in the
center of core as a metallic strength member. Tubes (and fillers)
are stranded around the strength member into a compact and circular
cable core. The cable core is filled with the filling compound to
protect it from water ingress, over which a thin PE inner sheath is
applied. After the PSP is longitudinally applied over the inner
sheath, the cable is completed with a PE outer sheath.
Item | TTI |
Model Number | GJYXFH Fiber Optic Cable |
Type | Indoor /outdoor Fiber Optic Cable |
Place of Origin | China |
Brand Name | TTI or Customized |
| Customizted |
Jacket Color | Black/White |
Sheath Material | LSZH, PVC |
Fiber Type | SM, MM |
Wavelength | 1310nm or 1550nm |
Strength member | Aramid Yan |
Working temperature | -20~ + 60°C |
Warranty Time | 10 years |
Package | Each reel 1km, 2km |
Service | OEM available |
2. Feature:
(1) Light weight,flexibility,and friendly installation.
(2) Good mechanical and environmental performance..
(3) Flame retardant outer sheath provide good safety.
Fiber Type | G.652 | G655 | 50/125μm | 62.5/125μm |
Attenuation(+20℃) | @850nm | | | ≤3.0 db/km | ≤3.3 db/km |
@1300nm | | | ≤1.0 db/km | ≤1.0 db/km |
@1310nm | ≤3.6 db/km | ≤0.40 db/km | | |
@1550nm | ≤0.22 db/km | ≤0.23 db/km | | |
Bandwidth | @850nm | | | ≥500MHz.km | ≥200MHz.km |
@1300nm | | | ≥500MHz.km | ≥500MHz.km |
Numerical Aperture | | | 0.200±0.015NA | 0.275±0.015NA |
Cable Cut-off Wavelength | ≤1260 nm | ≤1450 nm | | |
3. Application:
(1) Adopted to indoor distribution
(2) pigtail of communication equipment
(3) Suitable for communication equipment served
(4) Can be installed conveniently and perated simply

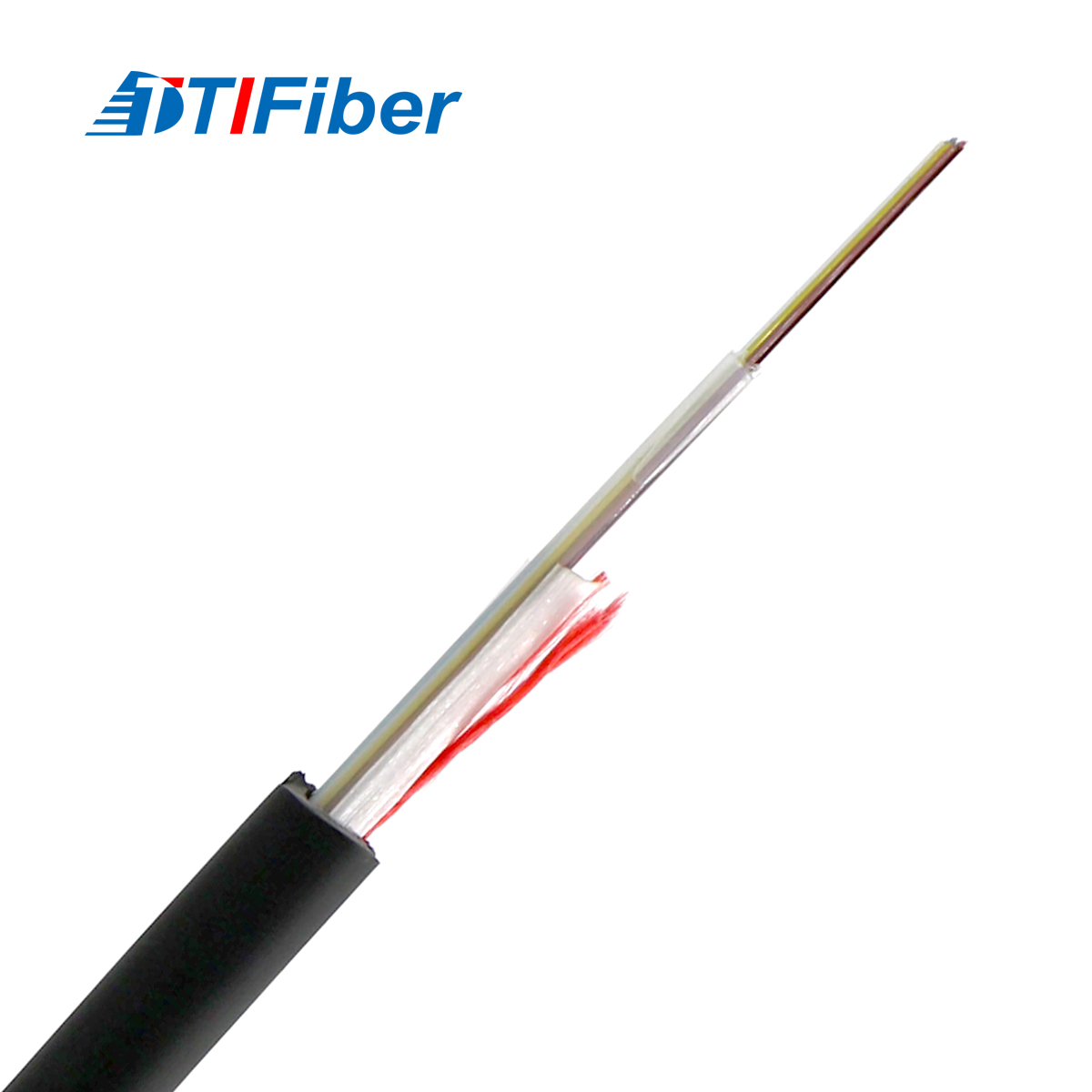

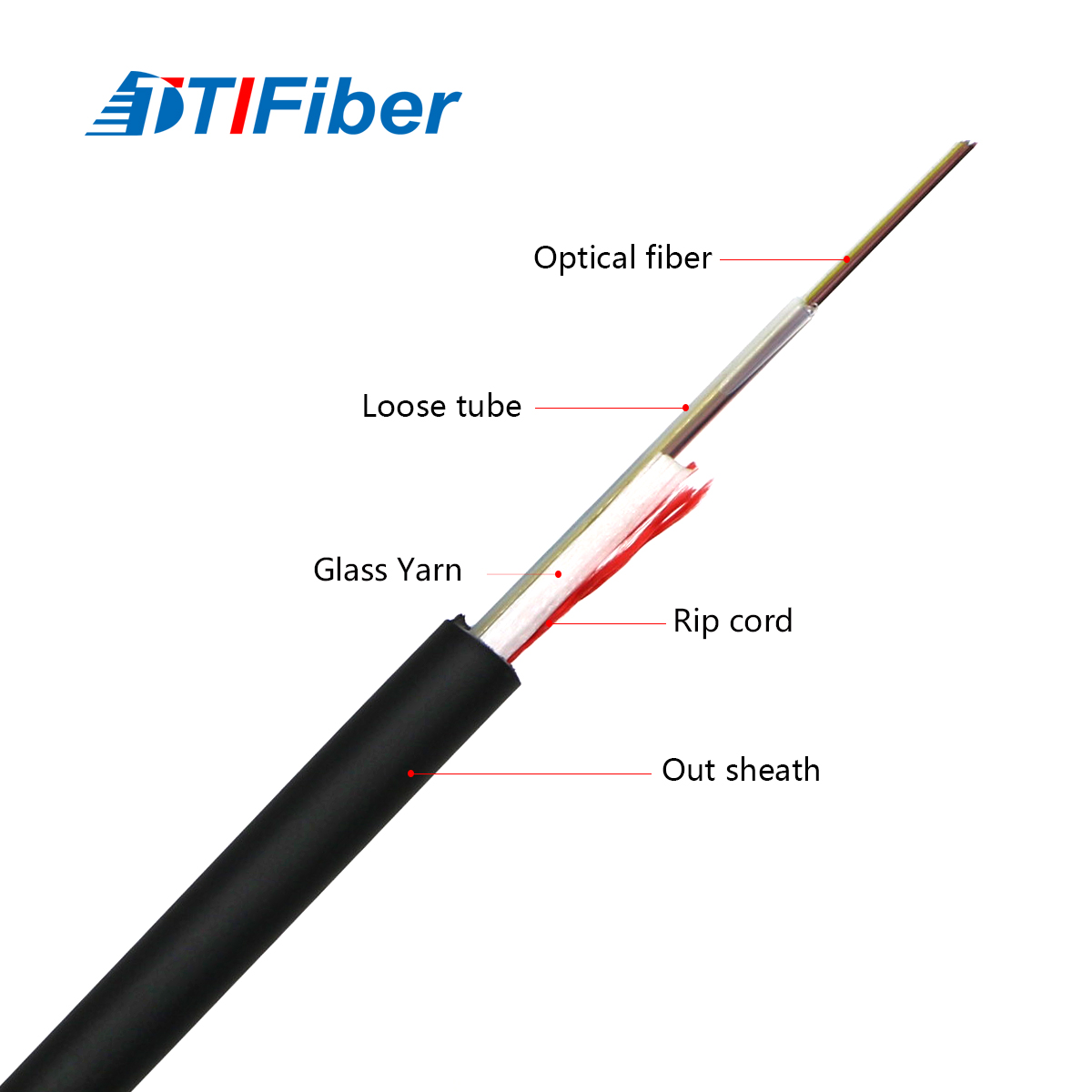

4. Product Picture:
5. FAQ:
1. Why choose TTI FIBER ?
(1)Professional manufacturer: Low MOQ, free samples are available.
(2)Quality assurance:Stable high quality.
(3)Customers solutions:Quick.
(4)Win-Win Price:Save much costs, bring more benefits for
customers.
2. Do you accept OEM,ODM?
Yes, we accept them .
3. Can you print our LOGO?
Sure, Your LOGO can be printed on the boxes , or products.
4. What's the method of shipment?
We accept all shipment , such as Delievery,ocean transport, land
transport , airport transport.
5. What's the Payment?
We accept all payments , such as LC,TT,DP,DA,Paypal,,Money Gram.
