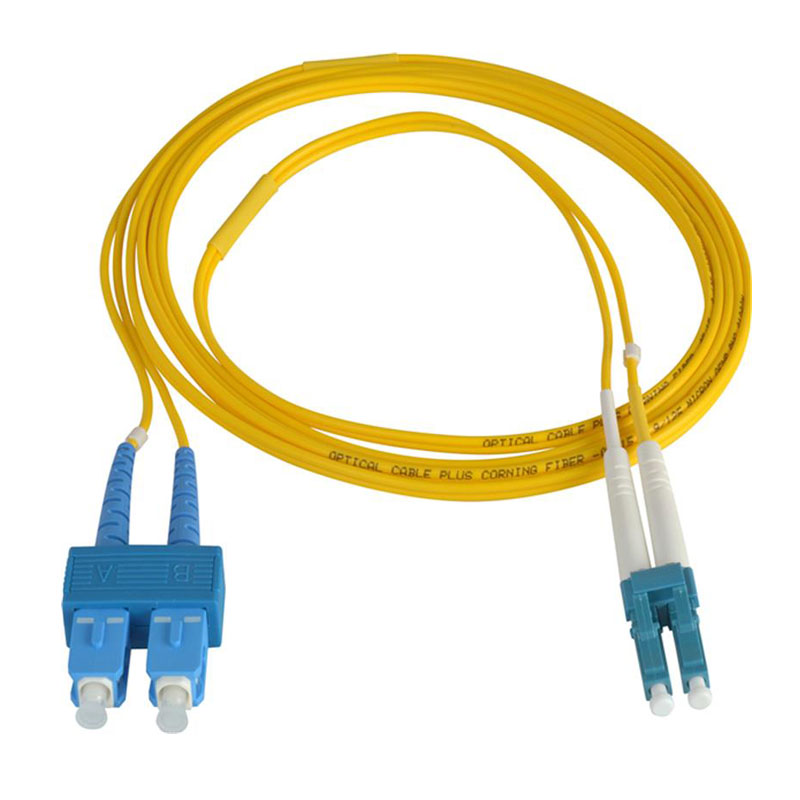

    Singlemode SC-LC Yellow Jacket Color Duplex 9/125 Fiber Optic Patch Cable Optical Cord Jumper Cable

    Ask Lasest Price
    Brand Name : TTI/OEM/ODM
    Model Number : FC-SC-SM-SX
    Certification : ISO, SGS, ROHS
    Price : Negotiation
    Payment Terms : T/T, L/C, PayPal
    Supply Ability : 8000 pcs/day
    Delivery Time : 2-3 days
    • Product Details
    • Company Profile

    Singlemode SC-LC Yellow Jacket Color Duplex 9/125 Fiber Optic Patch Cable Optical Cord Jumper Cable

    Singlemode SC-LC Yellow Jacket Color Duplex 9/125 Fiber Optic Patch Cable Optical Cord Jumper Cable


    Fiber Connector Performance Specification:


    Connector TypeFC, SC, LC, ST, MU, MTRJ
    Fiber TypeSM(G.652D/G.657A)MM(OM1/OM2/OM3/OM4)
    Ferrule End-facePCUPCAPCUPC
    Insertion Loss≤0.2dB≤0.2dB≤0.3dB≤0.3bB
    Return Loss≥50dB≥55dB≥60dB≥35dB
    Exchangeability≤0.2dB
    Repeatability≤ 0.1dB(1000 times)
    Durability> 1000 times
    Operating Temperature-40°C ~ +85°C

    Fiber Cable Performance Specification:


    Fiber typeMin. BandwidthDistanceAttenuation
    62.5/125850/1300nm
    200/500 MHz/Km
    @100Mbps 2km @1Gig 220m850/1300nm
    3.0/1.0dB/km
    50/125850/1300nm
    500/500 MHz/Km
    @100Mbps 2km @1Gig 500m850/1300nm
    3.0/1.0dB/km
    50/125
    10Gig Optimized
    850/1300nm
    2000/500 MHz/Km
    @100Gig Varies by VCSEL typical 300m 2850nm850/1300nm
    3.0/1.0dB/km
    9/1251310/1550nm
    Approx 100 Terahertz
    Up to 100km Varies by transceiver1310/1550nm
    0.4/0.3dB/km

    Description:


    Fiber optic patch cord is suited for equipment jumper cable, cross connects, and work area connections.All fiber optic patch cords
    are manufactured with telecom class and polished A, and 100% factory tested to ensure performance to standards.
    Optical fiber jumper / pigtail can be divided into common single-mode and multi-mode jumpers according to different transmission
    media; according to the connector structure, it can be divided into FC jumper, SC jumper, St jumper, LC jumper, MTRJ jumper, MPO
    jumper, Mu jumper, SMA jumper, FDDI jumper, din4 jumper, D4 jumper and other forms.




    Product Feature:
    1. Low insertion loss
    2. Low back reflection loss
    3. Custom defined specifications
    4. Easy installation
    5. Environmentally stable


    Product Application:
    1. Telecommunications
    2. Local area network
    3. Fiber to the home
    4. Video transmission
    5. Fiber optic sensing
    6. Testing instruments
    7. CATV



    Company Certificate:



    About our company:


    Shenzhen TTI Fiber Communication Tech. Co., Ltd. Is a high-tech enterprise specialized in fiber optic cable assemblies and optical fiber communication devices production, development and sales.


    Our company established a set of strict quality assurance system and obtained ISO9001, ISO4001 international quality system certificate.

    Our main products are Fiber optic cable, Fiber optic patch cord, fiber optic pigtail, fiber optic adapter, fiber optic attenuator, PLC splitter, fiber optic patch panel and much more FTTH products.


    We not only offer OEM service but also help many partners from all over the world to win in the market with professional technical support, excellent product solution, competitive prices, fast delivery and good service.


    Through our quality assurance program we give you outstanding quality of fiber optic cable assemblies. Quality has always made TTI Fiber stand out and it is essential to the company success.


    Our key objective is to solve our customers and technical challenges by working in partnership to design and manufacture outstanding products. We strive for 100% customer satisfaction.


    TTI Fiber provides qualified technical solutions and immediate service response when you need it the most.We not only sell products. We are offering good service and professional support.


    Choose TTI, to make your Internet Expedite!


    FAQ:


    1. Why choose TTI FIBER ?
    (1) Professional manufacturer: Low MOQ, free samples are available.
    (2) Quality assurance: Stable high quality.
    (3) Customers solutions: Quick.
    (4) Win-Win Price: Save much costs, bring more benefits for customers.


    2. Do you accept OEM,ODM?
    Yes, we accept them .


    3. Can you print our LOGO?
    Sure, Your LOGO can be printed on the boxes, or products.


    4. What's the method of shipment?
    We accept all shipment, such as Delievery, ocean transport, land transport, airport transport.
