FC/APC UPC Singlemode Simplex Fiber Optic Attenuator Male to Female
Optical Attenuator 1-15dB FC APC
Singlemode Simplex FC Female to Male Fiber Optic Attenuator
1. Description:
Fiber Optic Attenuator is one kind of optical passive device which
is used to debug the performance of the optical power in the
optical communication system,debugging fiber optic instrument
calibration correction, optical signal attenuation.And used for the
attenuation of the input optical power, avoid optical receiver
distortion due to input optical power powerful. The fixed fiber
optic attenuator can achieve the dual function of adapter and
attenuators.
2. Specification:
Product Name | FC Male to Female Type Optical Attenuator |
Operating Wavelength | 1260~1620nm |
Return Loss | ≥ 60 dB |
Maximum optical Input power | 200mW |
Insertion times | >1000 |
Attenuation Tolerance | ≤ 0.2db |
Working Temperature | -40°C~+ 75°C |
3. Feature:
1) Low back reflection and Low PDL
2) High precision attenuation value
3) Precision control of attenuation range
4) Wide attenuation range
5) Precision ceramic ferrule
6) FC, SC, ST, LC … optional
7) Plastic or metal housing material
4. Technique Parameters:
Item | Specification | | |
PC | UPC | APC |
Operating Wavelength (nm): | 1310/1550 |
Return Loss (dB): | ≥50 | ≥55 |
≥60
|
Attenuator Value: | According to custom request make 1—30dB |
Maximum Optical Input Power: | 200mW |
Bellcore Compliant: | Wavelength Independent (DWDM) |
Operating Temperature: | -40--+85°C |
Attenuation Accuracy: | +/-0.5 (1-10) +/-1.0 (11-30) |
Durability (well over 100mw): | Simple and Reliable Structure |
Storage Temperature: | -40--+85°C |
5. Application:
* Optics lab use
* Subscriber loop
* Fiber optical sensor
* Testing equipment
* Fiber communication on system test
* Optical passive component test
* Optical add-drop multiplexer in the optical power regulator

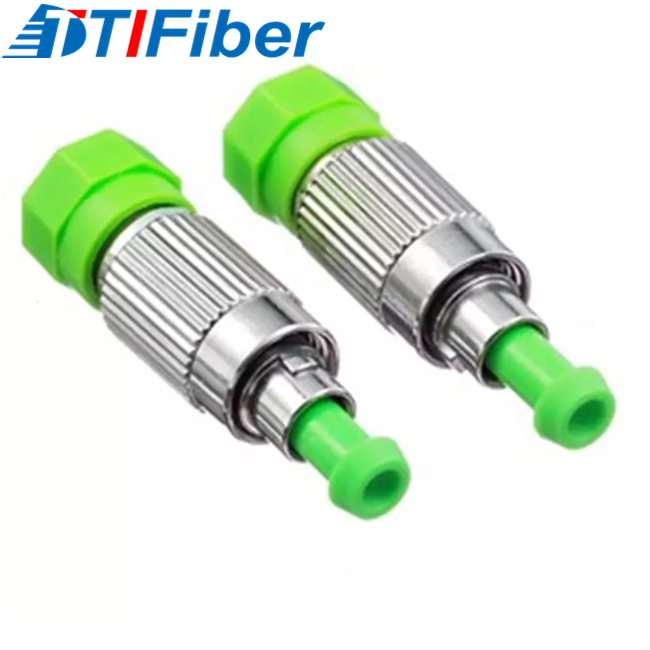

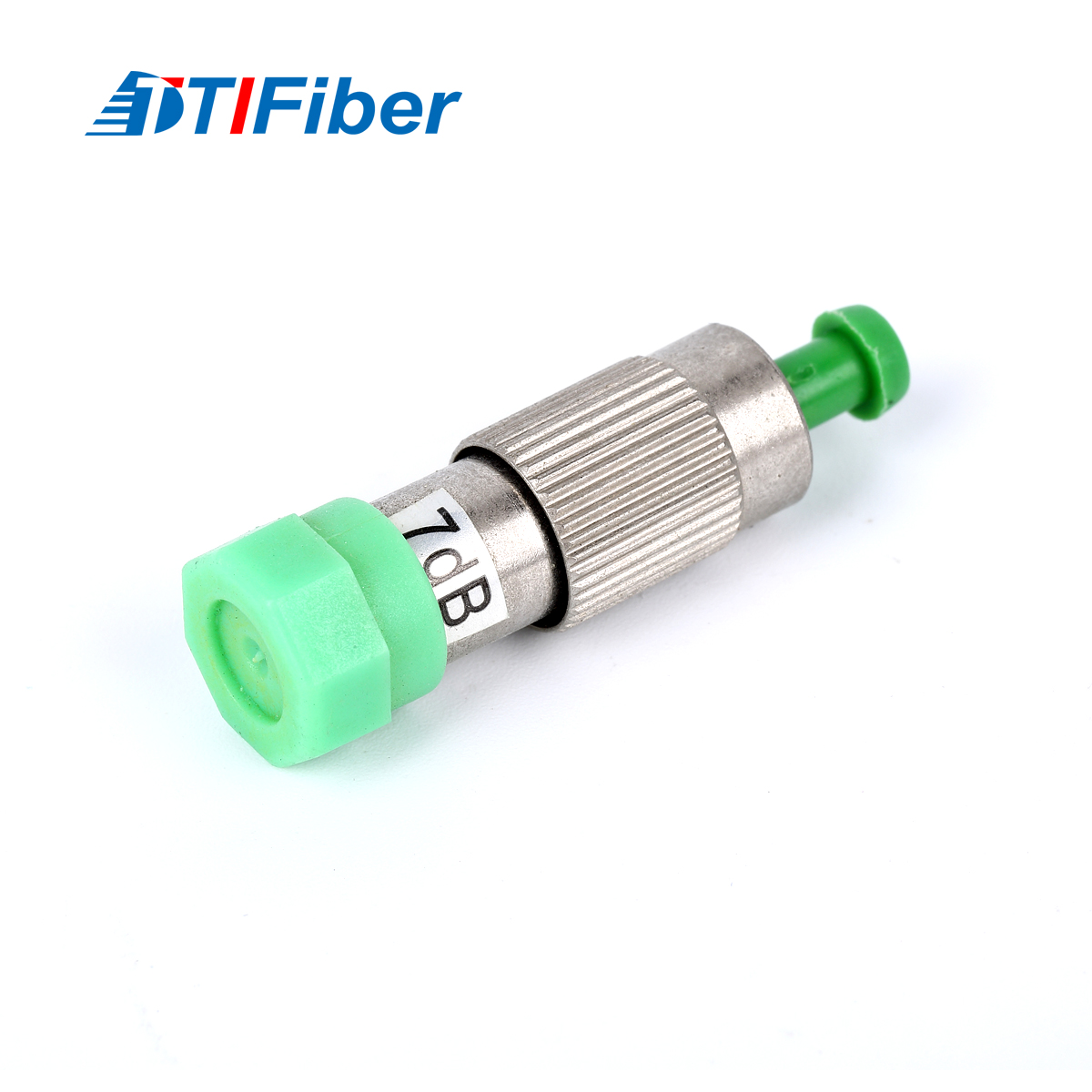

6. Product Picture:
7. FAQ:
1. Why choose TTI FIBER ?
(1) Professional manufacturer: Low MOQ, free samples are available.
(2) Quality assurance:Stable high quality.
(3) Customers solutions:Quick.
(4) Win-Win Price:Save much costs, bring more benefits for
customers.
2. Do you accept OEM,ODM?
Yes, we accept them .
3. Can you print our LOGO?
Sure, Your LOGO can be printed on the boxes , or products.
4. What's the method of shipment?
We accept all shipment , such as Delievery,ocean transport, land
transport , airport transport.
5. What's the Payment?
We accept all online payments.
