GJYXFCH G657A 1/2/4 Core Aerial Self Supporting FTTH Flat Drop
Cable Indoor Outdoor Fiber Optic Cable
1. Specification:
FTTH outdoor drop cable(GJYXFCH/GJYXCH) is also called
self-supporting butterfly drop optical cable with a indoor
butterfly cable and an additional strength member. It is for
outdoor communication applications. LSZH sheath is extruded outside
for application of fiber to the home.
| Fiber Type | Attenuation | Overfilled launch Bandwidth | Effective Modal Bandwidth | 10GB/S Ethernet link length | Min Bending Radius |
| Conditions | 1310/1550nm | 850/1300nm | 850/1300nm | 850nm | 850nm | |
| Unit | dB/km | dB/km | MHZ.km | MHZ.km | m | mm |
| G652D | 0.36/0.22 | | | | | 16 |
| G657A1 | 0.36/0.22 | | | | | 10 |
| G657A2 | 0.36/0.22 | | | | | 7.5 |
| 50/125 | | 3.0/1.0 | ≥500/500 | | | 30 |
| 62.2/125 | | 3.0/1.0 | ≥200/500 | | | 30 |
| OM3 | | 3.0/1.0 | ≥1500/500 | ≥2000 | ≥300 | 30 |
| OM4 | | 3.0/1.0 | ≥3500/500 | ≥4700 | ≥550 | 30 |
| B1-OM3 | | 3.0/1.0 | ≥1500/500 | ≥2000 | ≥300 | 7.5 |
| B1-OM4 | | 3.0/1.0 | ≥3500/500 | ≥4700 | ≥550 | 7.5 |
2. Feature:
1. Special low-bend -sensitivity fiber provides high bandwidth and
excellent communication transmission property
2. Two parallel FRP strength members ensure good performance of
crush resistance to protect the fiber
3. Single steel wire or massagers as the additional strength member
ensures good performance of tensile strength .
4. Simple structure , light weight and high practicability
5. special flute desigh , easily strip and splice , simplify the
installation and maintenance
6. Low smoke , zero halogen and flame retardant sheath
3. Application:
(1) Used in access network oras access cable from outdoorto indoor
(2) in customer premises network.
(3) Used as access building cable in premises distribution
system,especially used in indooror outdooraerial access cabling.

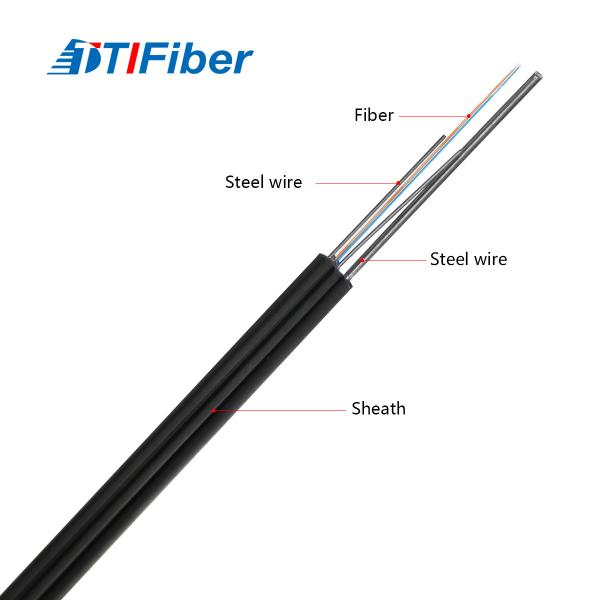

4. Product Picture:
5. FAQ:
1. Why choose TTI FIBER ?
(1)Professional manufacturer: Low MOQ, free samples are available.
(2)Quality assurance:Stable high quality.
(3)Customers solutions:Quick.
(4)Win-Win Price:Save much costs, bring more benefits for
customers.
2. Do you accept OEM,ODM?
Yes, we accept them .
3. Can you print our LOGO?
Sure, Your LOGO can be printed on the boxes , or products.
4. What's the method of shipment?
We accept all shipment , such as Delievery,ocean transport, land
transport , airport transport.
5. What's the Payment?
We accept all payments , such as LC,TT,DP,DA,Paypal.
