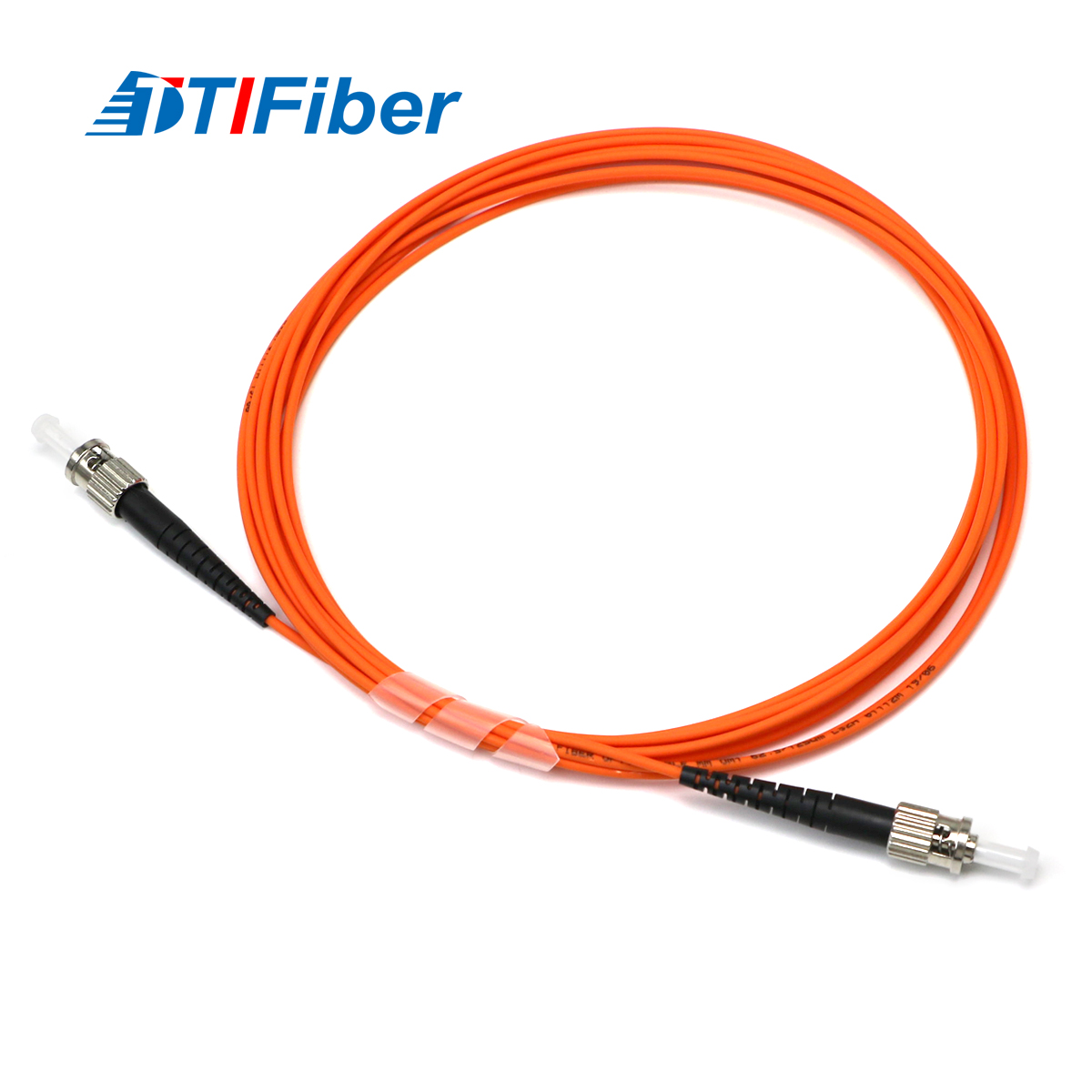

Factory Wholesale All Lengths Customizable ST-ST Multimode Simplex
Fiber Optic Patch Cord
Fiber Connector Performance Specification:
| Connector Type | FC, SC, LC, ST, MU, MTRJ |
| Fiber Type | SM(G.652D/G.657A) | MM(OM1/OM2/OM3/OM4/OM5) |
| Ferrule End-face | PC | UPC | APC | UPC |
| Insertion Loss | ≤0.2dB | ≤0.2dB | ≤0.3dB | ≤0.3bB |
| Return Loss | ≥50dB | ≥55dB | ≥60dB | ≥35dB |
| Exchangeability | ≤0.2dB |
| Repeatability | ≤ 0.1dB(1000 times) |
| Durability | > 1000 times |
| Operating Temperature | -40°C ~ +85°C |
Fiber Cable Performance Specification:
| Fiber type | Min. Bandwidth | Distance | Attenuation |
| 62.5/125 | 850/1300nm
200/500 MHz/Km | @100Mbps 2km @1Gig 220m | 850/1300nm
3.0/1.0dB/km |
| 50/125 | 850/1300nm
500/500 MHz/Km | @100Mbps 2km @1Gig 500m | 850/1300nm
3.0/1.0dB/km |
50/125
10Gig Optimized | 850/1300nm
2000/500 MHz/Km | @100Gig Varies by VCSEL typical 300m 2850nm | 850/1300nm
3.0/1.0dB/km |
| 9/125 | 1310/1550nm
Approx 100 Terahertz | Up to 100km Varies by transceiver | 1310/1550nm
0.4/0.3dB/km
|
Description:
Fiber optic patch cord is suitable for equipment jumper cable,
cross connects, and work area connections. All fiber optic patch
cords
are manufactured with telecom class and polished A, and 100%
factory tested to ensure performance to standards.
Optical fiber jumper / pigtail can be divided into common
single-mode and multi-mode jumpers according to different
transmission
media; according to the connector structure, it can be divided into
FC jumper, SC jumper, St jumper, LC jumper, MTRJ jumper, MPO
jumper, Mu jumper, SMA jumper, FDDI jumper, din4 jumper, D4 jumper
and other forms.
Product Display:
Product Features:
1). Low insertion loss
2). Low back reflection loss
3). Custom defined specifications
4). Easy installation
5). Environmentally stable
Product Application:
1). Telecommunications
2). Local area network
3). Fiber to the home
4). Video transmission
5). Fiber optic sensing
6). Testing instruments
7). CATV
Company Certificate:
About our company:
Shenzhen TTI Fiber Communication Tech. Co., Ltd. Is a high-tech
enterprise specialized in fiber optic cable assemblies and optical
fiber communication devices production, development and sales.
Our company established a set of strict quality assurance system
and obtained ISO9001, ISO4001 international quality system
certificate.
Our main products are Fiber optic cable, Fiber optic patch cord,
fiber optic pigtail, fiber optic adapter, fiber optic attenuator,
PLC splitter, fiber optic patch panel and much more FTTH products.
We not only offer OEM service but also help many partners from all
over the world to win in the market with professional technical
support, excellent product solution, competitive prices, fast
delivery and good service.
Through our quality assurance program we give you outstanding
quality of fiber optic cable assemblies. Quality has always made
TTI Fiber stand out and it is essential to the company success.
Our key objective is to solve our customers and technical
challenges by working in partnership to design and manufacture
outstanding products. We strive for 100% customer satisfaction.
TTI Fiber provides qualified technical solutions and immediate
service response when you need it the most.We not only sell
products. We are offering good service and professional support.
Choose TTI, to make your Internet Expedite!
