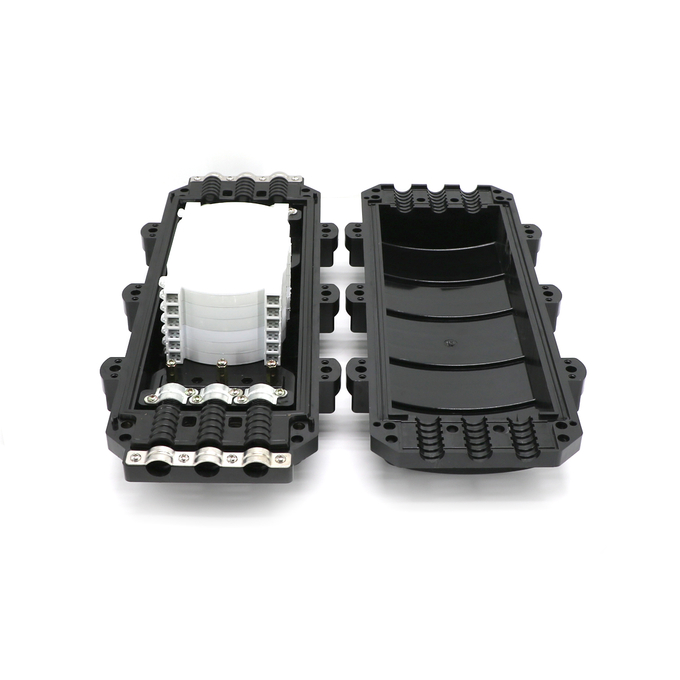

TTI Fiber Horizontal In-line Type Optical Enclosure Optic Splice
Closure
Specification:
Suitable for cable whose diameter is within 22mm. It can be used in
aerial, duct and direct buried application as well as the
all-plastic local cable connection.
Mainly in a variety of structural cable for the overhead, piping,
buried and other laying way through the direct and branch
connection.
The box is made of imported reinforced plastic, high strength,
corrosion resistance, terminal box for the structure of the cable
terminal of the terminal room, the structure is mature, sealed and
reliable, easy construction. Widely used in communications, network
systems, CATV cable television, cable network systems and so on.
The right side of the two into the two out of the box;
Purpose: aerial, direct-burying, wall-mounting, Pipeline laying way
It is widely used for communication, network system, cabled TV of
CATV, the fiber optic cable by network.
Features:
• Having good mechanical performance, strong bad weather resistance
capacity as well as electric features by use of high quality
polypropylene together with thermal aging additive
• Made of material with good capability of outdoor environment
resistance and high durability
• Having reliable cable fixing and grounding facilities
• Using self-adhesive isolative tape and glue belt to seal
• To use rotating method to connect fiber organizer cassette result
in easy installation
• Mechanical design suitable for installing, fiber splicing storage
and cable connection
• Compact and tight
Main Technical Parameters for fiber optic splice closure
• Applicable environment temperatures: -40°C~+65°C
• Air pressure: 70~106Kpa
• Pull-out strength≥1000N, compressive force to shell≥2000N ,
impact: 16N.m
• Bending force to fiber cable: 150N (±45°), torsion force to fiber
cable: 50N.m (±90°)
• Tightness: no pressure drop within the enclosure pressurized to
60Kpa at 70°C for 100 hours
• Insulation resistance≥2×104MΩ,resistance to 15KV/min without
break down
• Life expectancy: 25 years
| Dimension ( mm ) | 460×180×108 |
| Weight ( Kg ) | 3.5 |
| Cable Diameter (mm) | Φ7-Φ18 |
| Cables Entry & Exit | 2 & 2 |
| Max Capacity of Cores Per Splice Tray | 12 (Single)/24 (Single) |
| Max Capacity of Splice Trays/ Closure | 5 (12cores/tray) / 4 (24 cores/tray) |
| Max Capacity of Cores | 60 Cores (12cores/tray) / 96 Cores (24 cores/tray) |
| Sealing Structure of Shell | Sticky Cincture or Silicon Gum Material |
