Stranded Loose Tube Aluminum Tape Cable GYTA

Stranded Loose Tube Aluminum Tape Cable GYTA

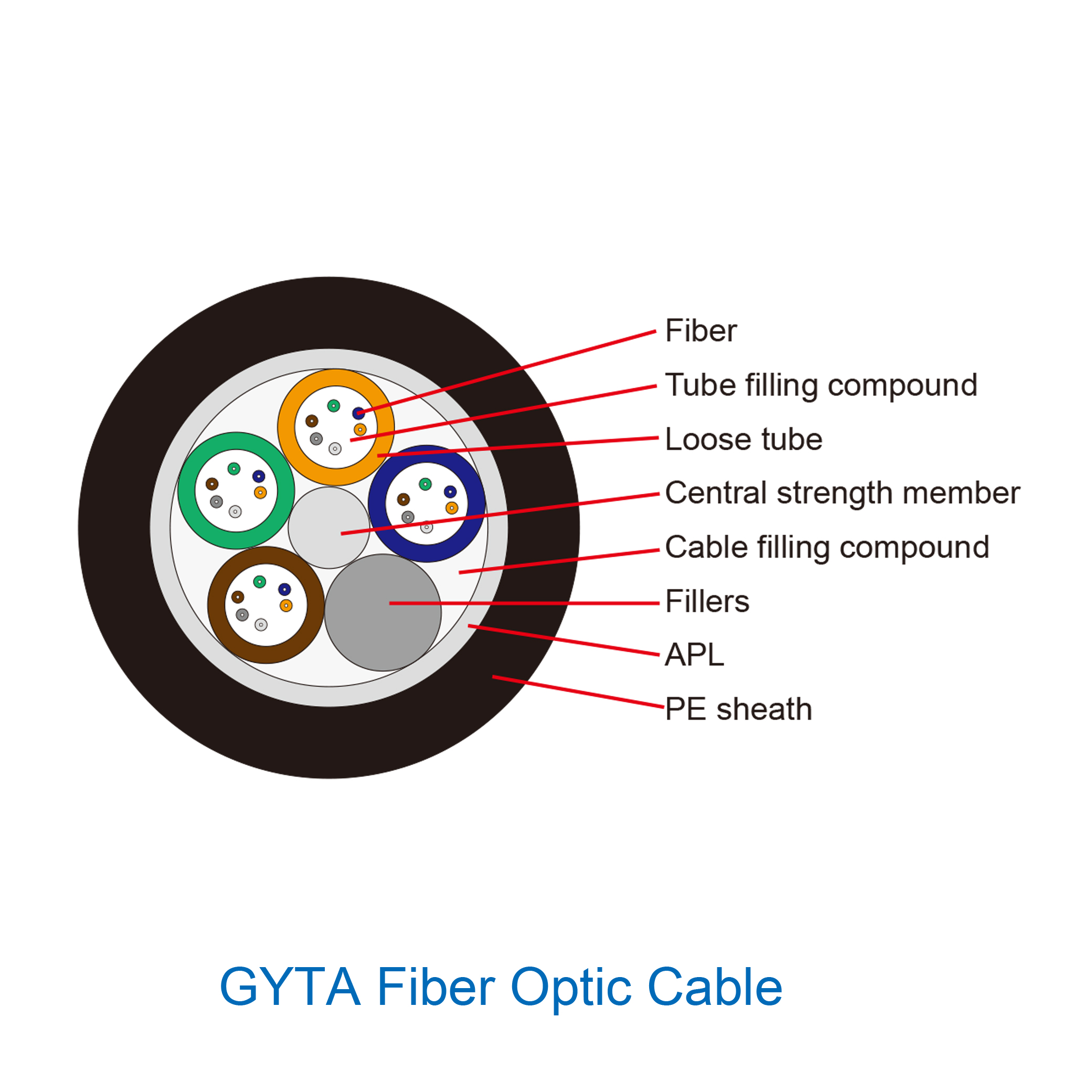

The fibers, 125μm,are positioned in a loose tube made of a high modulus plastic.

The tubes are filled with a water-resistant filling compound.

A steel wire, sometimes sheathed with polyethylene (PE) for cable with high fiber count, locates in the center of core as a metallic strength member.

Tubes (and fillers) are stranded around the strength member into a compact and circular cable core.

An Aluminum Polyethylene Laminate (APL) is applied around the cable core, which is filled with the filling compound to protect it from water ingress. Then, the cable is completed with a PE sheath.

Feature

♦ Excellent mechanical and temperature performance
♦ Special tube filling compound ensure a critical protection of fiber and resist the water.
♦ Single steel wire as the central strength member to withstand axial loads.
♦ PE sheath protects cable from ultraviolet radiation.
♦ 100% core filling water prevent cable jelly to ensure the cable watertight.
♦ AL tape longitudinal cover cable core as moisture barrier.

Specification

Cable Type	Fiber Count	Tubes	Fillers	Cable Diamete rmm	Cable Weight kg/km	Tensile strength Long/Short term (N)	Crush resistance Long/Short term (N/100mm)	Bending radius Static/Dynamic (mm)
Cable Type	Fiber Count	Tubes	Fillers	Cable Diamete rmm	Cable Weight kg/km	Tensile strength Long/Short term (N)	Crush resistance Long/Short term (N/100mm)	Bending radius Static/Dynamic (mm)
GYTA-2~6	2~6	1	4	9.0	80	600/1500	300/1000	10D/20D
GYTA-8~12	8~12	2	3	9.0	80	600/1500	300/1000	10D/20D
GYTA-14~18	14~18	3	2	9.0	80	600/1500	300/1000	10D/20D
GYTA-20~24	20~24	4	1	9.0	80	600/1500	300/1000	10D/20D
GYTA-26~30	26~30	5	0	9.0	80	600/1500	300/1000	10D/20D
GYTA-32~36	32~36	6	0	9.0	80	1000/3000	300/1000	10D/20D
GYTA-38~48	38~48	4	1	9.0	80	1000/3000	300/1000	10D/20D
GYTA-50~60	50~60	5	0	9.0	80	1000/3000	300/1000	10D/20D
GYTA-62~72	62~72	6	0	9.0	80	1000/3000	300/1000	10D/20D
GYTA-86~96	86~96	8	0	13.2	153	1000/3000	300/1000	10D/20D
GYTA-134~144	122~132	12	0	16.5	221	1000/3000	300/1000	10D/20D
GYTA-204~216	204~216	18	0	16.5	230	1000/3000	300/1000	10D/20D
