    24core Singlemode ADSS Aerial Optical Cable With Single Sheath Span 100M

    Ask Lasest Price
    Brand Name : TTI OR OEM
    Model Number : ADSS
    Certification : ISO9001/CE/ROHS
    Payment Terms : L/C, D/A, D/P, T/T, , PayPal,
    Supply Ability : 100000 PCS/Month
    Delivery Time : 5-9 Days
    Price : 0.13
    • Product Details
    • Company Profile

    24core Singlemode ADSS Aerial Optical Cable With Single Sheath Span 100M

    24core Singlemode ADSS Aerial Optical Cable with Single Sheath Span 100M

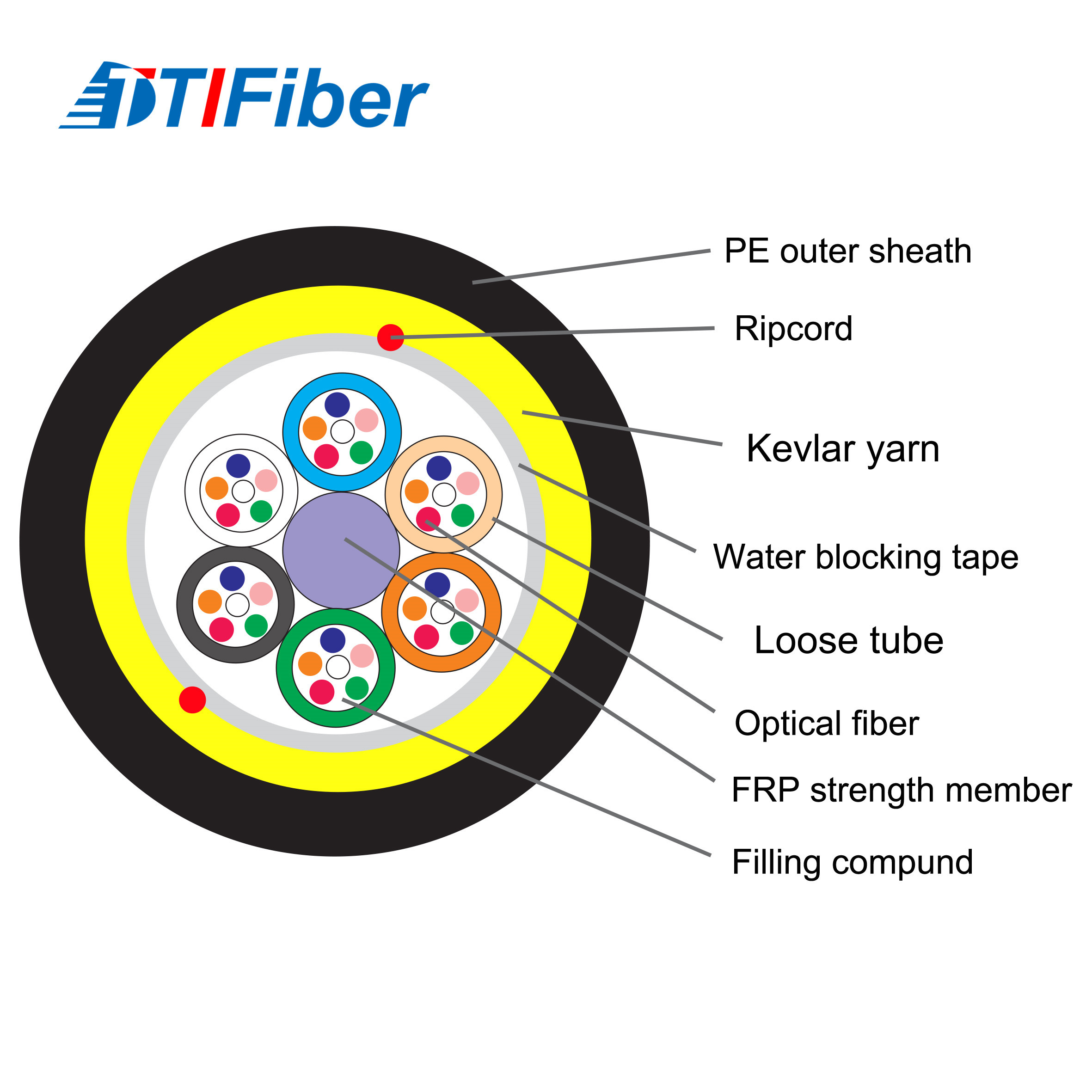

    The fibers, 125μm, are positioned in a loose tube made of a high modulus plastic.

    The tubes are filled with a water-resistant filling compound.

    A Fiber Reinforced Plastic (FRP) locates in the center of core as a non-metallic strength member.

    The tubes (and fillers) are stranded around the strength member into a compact and circular core.

    After the cable core is filled with the filling compound to protect it from water ingress, the cable is completed with a PE sheath.


    Feature:

    Excellent mechanical and temperature performance

    PE sheath protects cable from ultraviolet radiation.

    100% core filling water prevent cable jelly to ensure the cable watertight.

    Special tube filling compound ensure a critical protection of fiber and resist the water.

    Single FRP as the central strength member to withstand axial loads.


    Optical Characteristics:


    ItemG.652G.65550/125um62.5/125um
    Attenuation@850nm　　≤3.0dB/km≤3.2dB/km
    @1300nm　　≤1.0dB/km≤1.2dB/km
    @1310nm≤0.36dB/km≤0.40dB/km　　
    @1550nm≤0.22dB/km≤0.23dB/km　　

    Bandwidth

    (Class A)

    		@850nm　　≥500MHZ.km≥200MHZ.km
    @1300nm　　≥1000MHZ.km≥600MHZ.km
    Numerical aperture　　0.200±0.015NA0.275±0.015NA
    Cable cut-off wavelength≤1260mm≤1450mm　　


    24core Singlemode ADSS Aerial Optical Cable With Single Sheath Span 100M
